KHD Engine
Model
Engine
Displacement and power
From To
Engine 1.4
F2L1011
CCM:
HP:
KW:
01.1989 =>
  • Genuine part : no

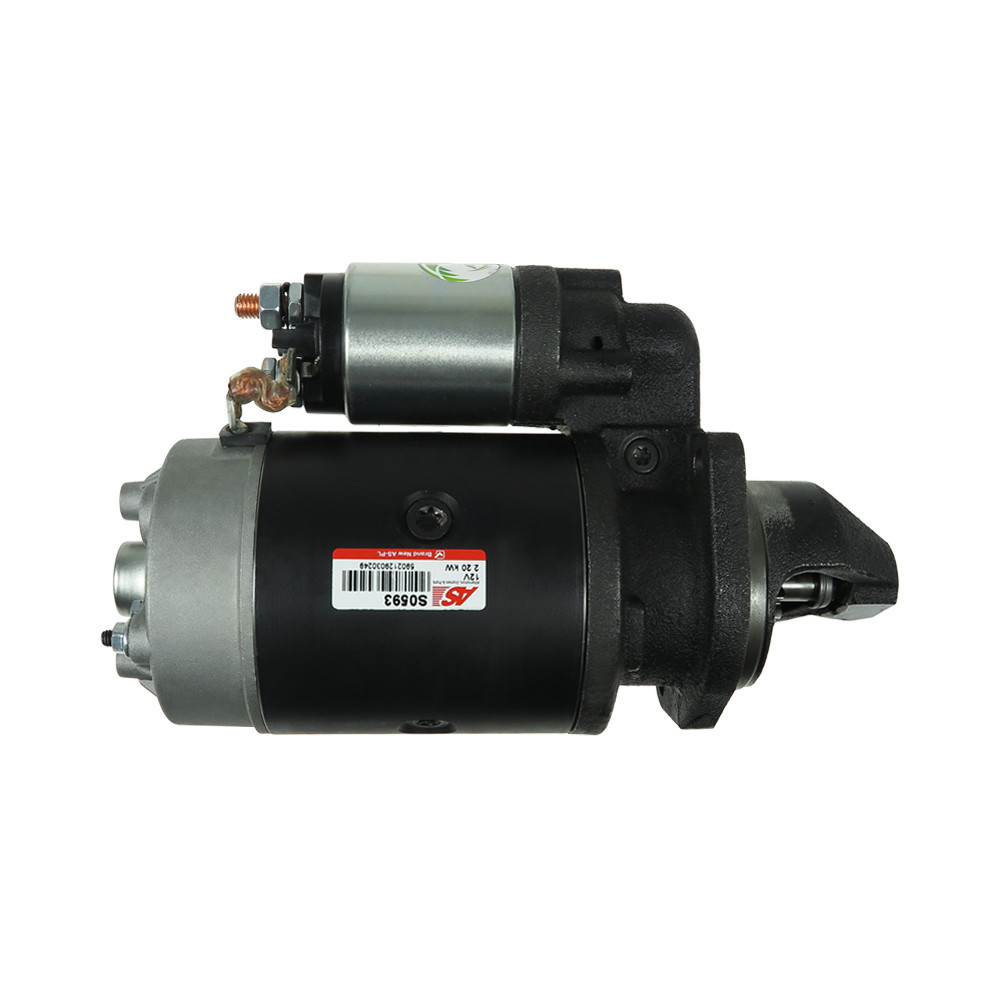

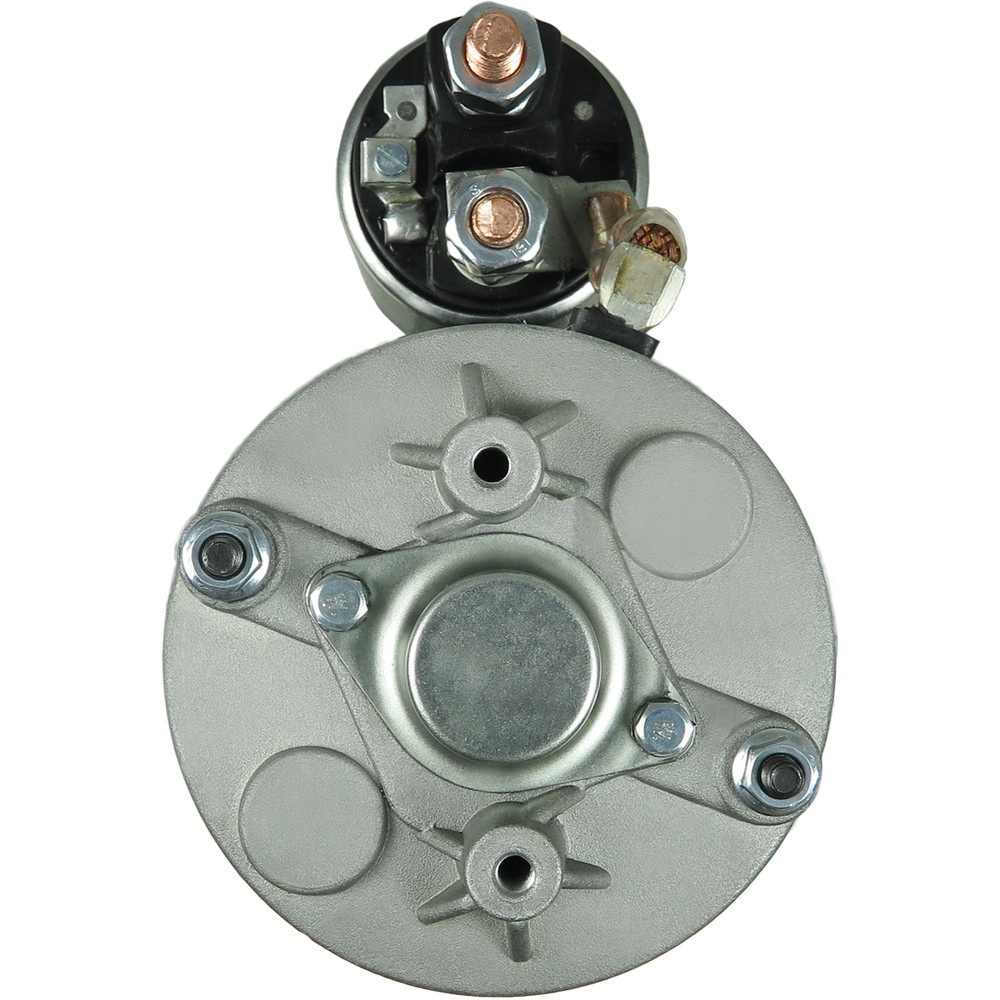

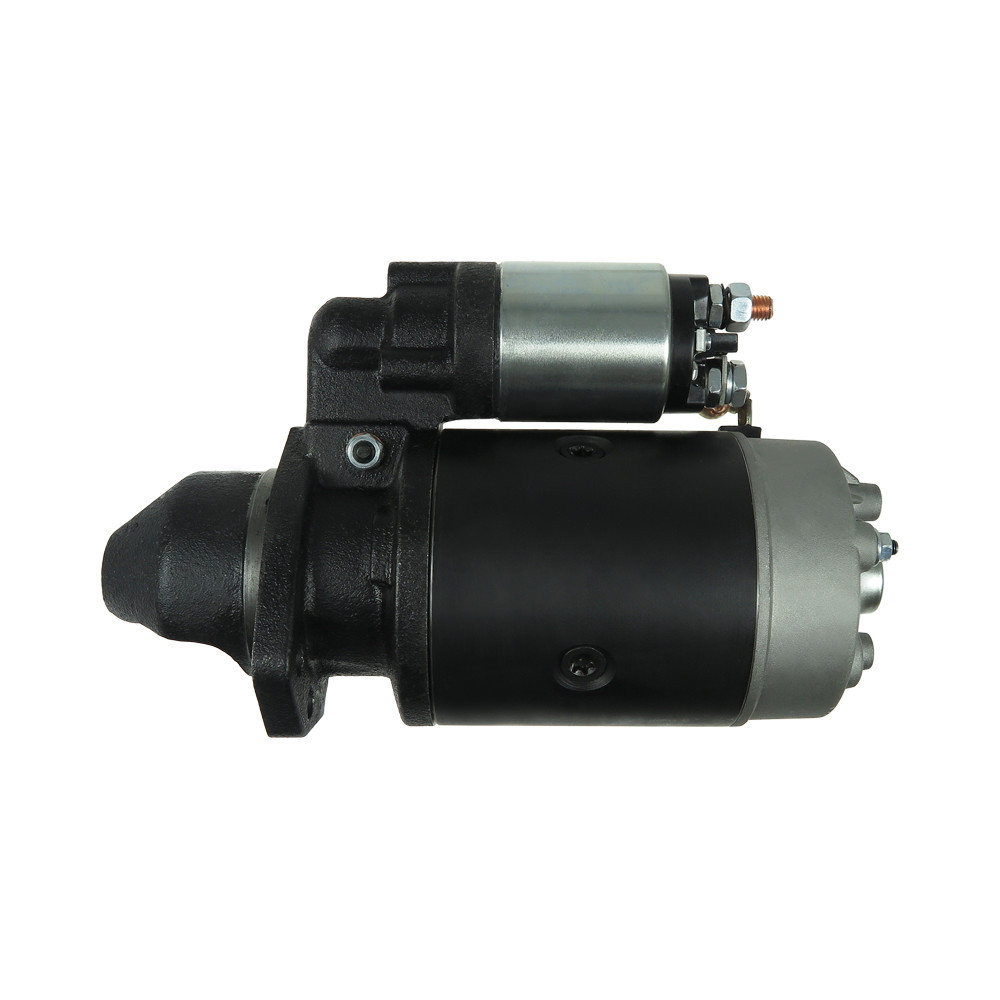

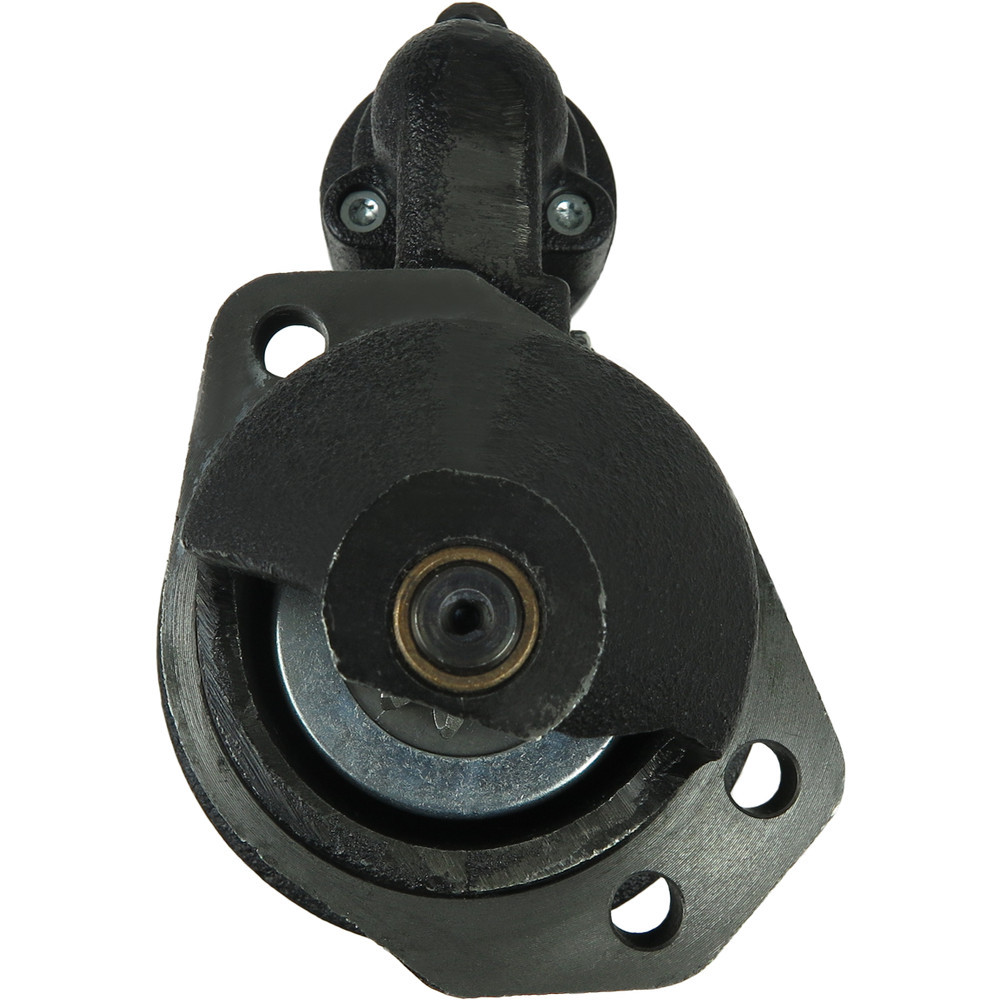

  • Type of part : Starter
  • Motorization : Engine
  • Can be mounted on : KHD
  • Mounting holes : 3
  • Number of teeth : 11
  • Rotation : CW (clockwise)
  • Voltage : 12
  • From : 1989
  • No./mount. holes with thread : 0

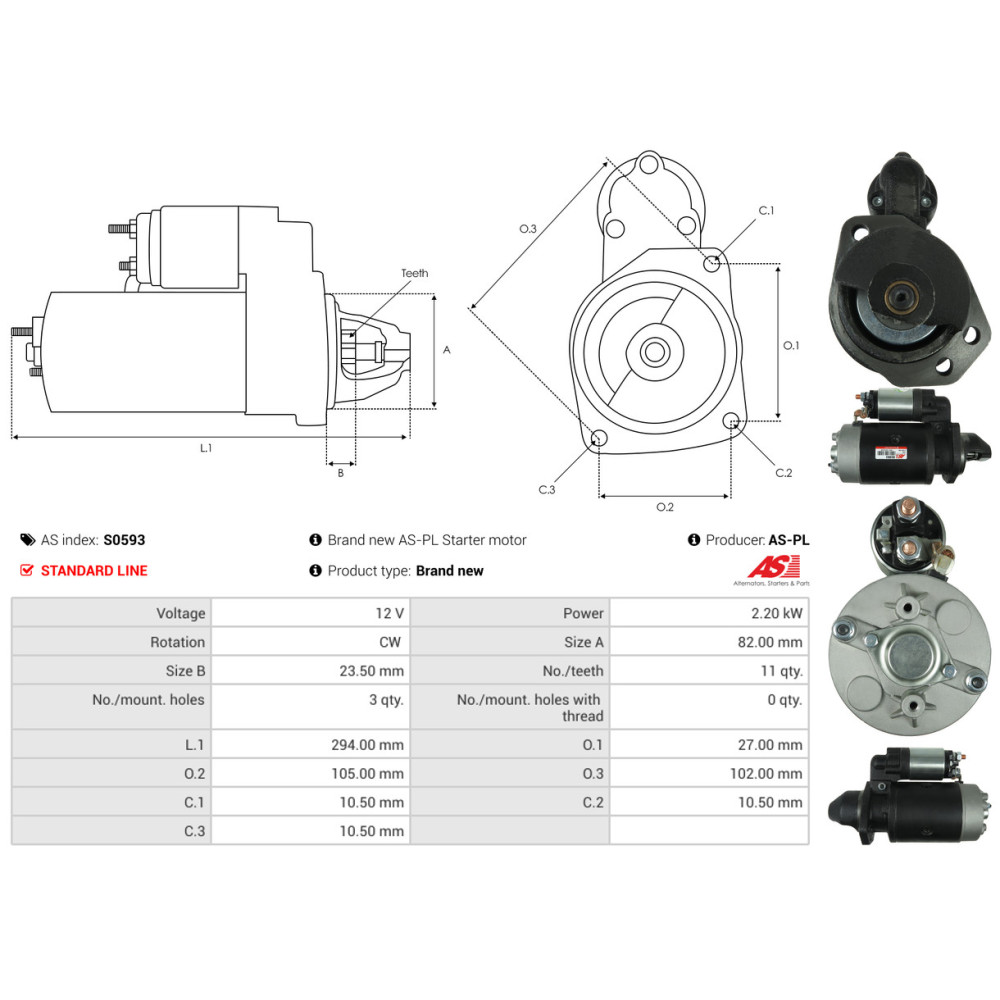

  • C.1 [ mm ] : 10.50
  • C.2 [ mm ] : 10.50
  • C.3 [ mm ] : 10.50
  • L.1 [ mm ] : 294.00
  • O.1 [ mm ] : 27.00
  • O.2 [ mm ] : 105.00
  • O.3 [ mm ] : 102.00
  • Taille A [ mm ] : 82.00
  • Taille B [ mm ] : 23.50
  • Type : Engine 1.4
  • Engine code : F2L1011
