Home>Starter>Starter Skoda SCALA (NW1)
SKODA SCALA (NW1)
Model
Engine
Displacement and power
From To
SCALA (NW1) 1.0 TSI
DKJA
CCM:
999
HP:
116
KW:
85
02.2019 =>
SCALA (NW1) 1.0 TSI
DKLA
CCM:
999
HP:
95
KW:
70
02.2019 =>
SCALA (NW1) 1.0 TSI
DKRF
CCM:
999
HP:
116
KW:
85
02.2019 =>
SCALA (NW1) 1.0 TSI
DLAA
CCM:
999
HP:
110
KW:
81
08.2020 =>
SCALA (NW1) 1.0 TSI
DLAC
CCM:
999
HP:
95
KW:
70
02.2019 =>
SCALA (NW1) 1.0 TSI
DUSA
CCM:
999
HP:
116
KW:
85
02.2019 =>
SCALA (NW1) 1.0 TSI
DUSB
CCM:
999
HP:
95
KW:
70
02.2019 =>
SCALA (NW1) 1.0 TSI
DXUA
CCM:
999
HP:
116
KW:
85
02.2019 =>
SCALA (NW1) 1.5 TSI
DADA
CCM:
1498
HP:
150
KW:
110
02.2019 =>
SCALA (NW1) 1.5 TSI
DPCA
CCM:
1498
HP:
150
KW:
110
02.2019 =>
SCALA (NW1) 1.5 TSI
DXDB
CCM:
1498
HP:
150
KW:
110
02.2019 =>
SCALA (NW1) 1.6 TDI
DGTA
CCM:
1598
HP:
116
KW:
85
02.2019 =>

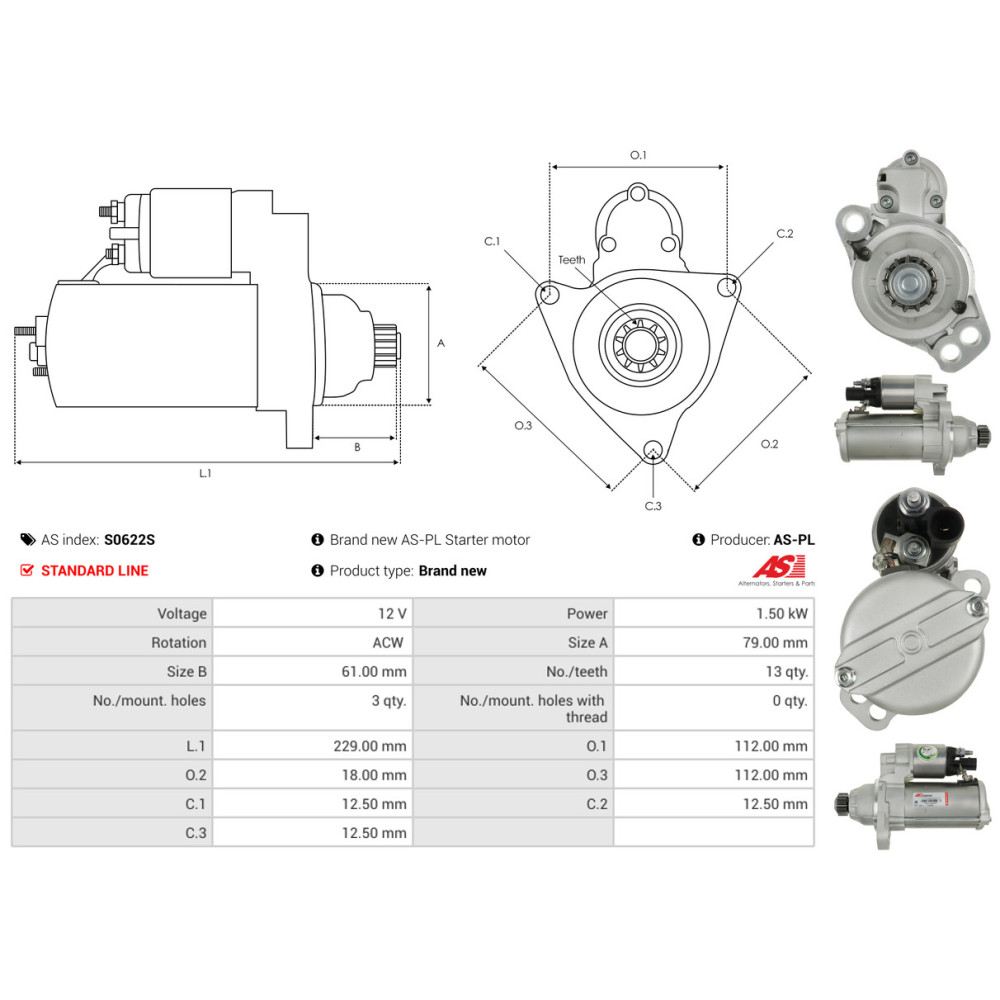

  • Type of part : Starter
  • Motorization : SCALA (NW1)
  • Can be mounted on : Skoda
  • Mounting holes : 3
  • Number of teeth : 13
  • Rotation : ACW (counterclockwise)
  • Voltage : 12
  • From : 2019
  • No./mount. holes with thread : 0
  • C.1 [ mm ] : 12.50
  • C.2 [ mm ] : 12.50
  • C.3 [ mm ] : 12.50
  • L.1 [ mm ] : 229.00
  • O.1 [ mm ] : 112.00
  • O.2 [ mm ] : 18.00
  • O.3 [ mm ] : 112.00
  • Taille A [ mm ] : 79.00
  • Taille B [ mm ] : 61.00
  • Type : SCALA (NW1) 1.0 TSI, SCALA (NW1) 1.5 TSI, SCALA (NW1) 1.6 TDI
  • Engine code : DADA, DGTA, DKJA, DKLA, DKRF, DLAA, DLAC, DPCA, DUSA, DUSB, DXDB, DXUA
  • Genuine part : no
