Home>Starter>Starter Seat ALTEA XL (5P5, 5P8)
SEAT ALTEA XL (5P5, 5P8)
Model
Engine
Displacement and power
From To
ALTEA XL (5P5, 5P8) 2.0 TDI
BMM
CCM:
1968
HP:
140
KW:
103
10.2006 => 11.2010
ALTEA XL (5P5, 5P8) 2.0 TDI
BMN
CCM:
1968
HP:
170
KW:
125
06.2007 => 12.2013
ALTEA XL (5P5, 5P8) 2.0 TDI
CEGA
CCM:
1968
HP:
170
KW:
125
06.2007 => 12.2013
ALTEA XL (5P5, 5P8) 2.0 TDI 16V
BKD
CCM:
1968
HP:
140
KW:
103
10.2006 => 07.2015
ALTEA XL (5P5, 5P8) 2.0 TDI 16V
CFHC
CCM:
1968
HP:
140
KW:
103
10.2006 => 07.2015
ALTEA XL (5P5, 5P8) 2.0 TDI 16V 4x4
CFHC
CCM:
1968
HP:
140
KW:
103
10.2010 => 07.2015
ALTEA XL (5P5, 5P8) 2.0 TDI 4x4
BMM
CCM:
1968
HP:
140
KW:
103
06.2007 => 11.2010
ALTEA XL (5P5, 5P8) 2.0 TDI 4x4
BMN
CCM:
1968
HP:
170
KW:
125
06.2007 => 06.2013
ALTEA XL (5P5, 5P8) 2.0 TDI 4x4
CEGA
CCM:
1968
HP:
170
KW:
125
06.2007 => 06.2013
ALTEA XL (5P5, 5P8) 2.0 TDI 4x4
CFJA
CCM:
1968
HP:
170
KW:
125
06.2007 => 06.2013
ALTEA XL (5P5, 5P8) 2.0 TFSI
BWA
CCM:
1984
HP:
200
KW:
147
10.2006 => 05.2009
ALTEA XL (5P5, 5P8) 2.0 TFSI 4x4
BWA
CCM:
1984
HP:
200
KW:
147
06.2007 => 05.2009
  • Genuine part : no
  • Type of part : Starter
  • Motorization : ALTEA XL (5P5, 5P8)
  • Can be mounted on : Seat
  • Mounting holes : 2
  • Number of teeth : 13
  • Rotation : ACW (counterclockwise)
  • Voltage : 12
  • From : 2006, 2007, 2008, 2009, 2010
  • No./mount. holes with thread : 0

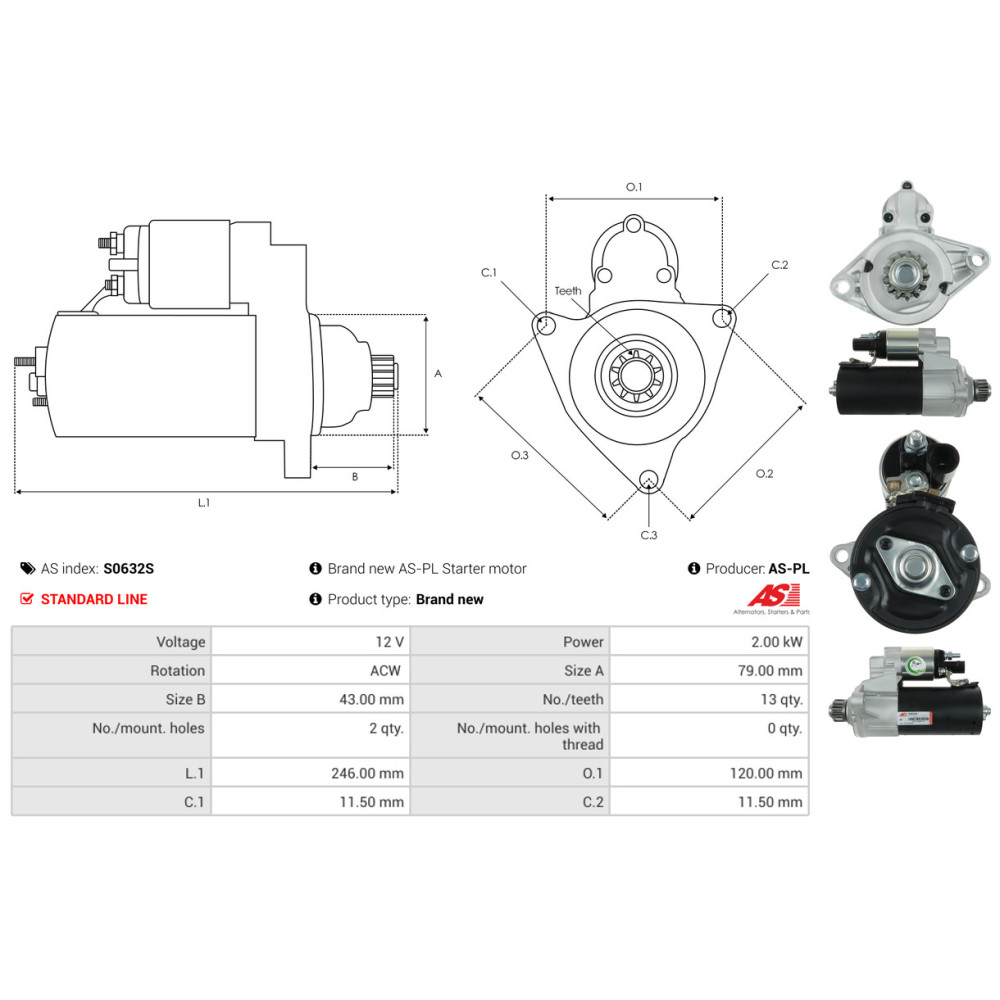

  • C.1 [ mm ] : 11.50
  • C.2 [ mm ] : 11.50
  • L.1 [ mm ] : 246.00
  • O.1 [ mm ] : 120.00
  • Taille A [ mm ] : 79.00
  • Taille B [ mm ] : 43.00
  • Type : ALTEA XL (5P5, 5P8) 2.0 TDI, ALTEA XL (5P5, 5P8) 2.0 TDI 16V, ALTEA XL (5P5, 5P8) 2.0 TDI 16V 4x4, ALTEA XL (5P5, 5P8) 2.0 TDI 4x4, ALTEA XL (5P5, 5P8) 2.0 TFSI, ALTEA XL (5P5, 5P8) 2.0 TFSI 4x4
  • Engine code : BKD, BMM, BMN, BWA, CEGA, CFHC, CFJA
