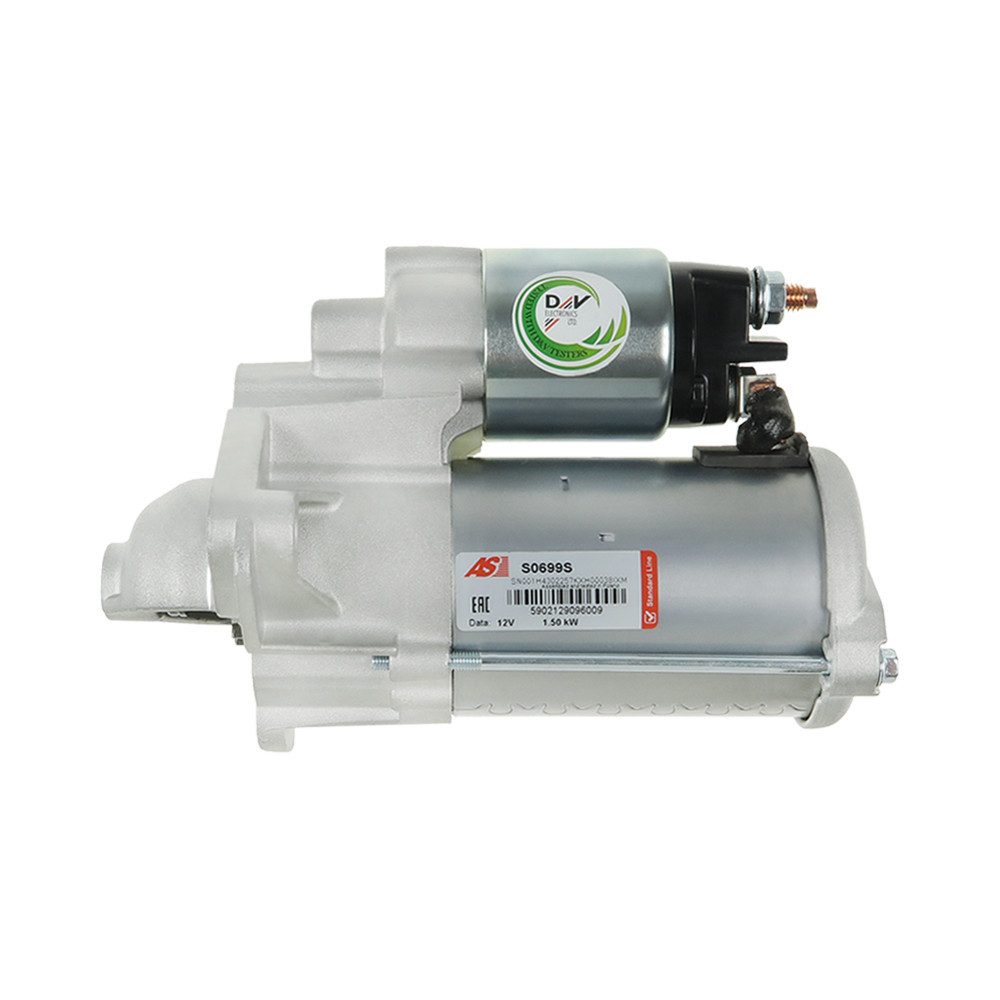

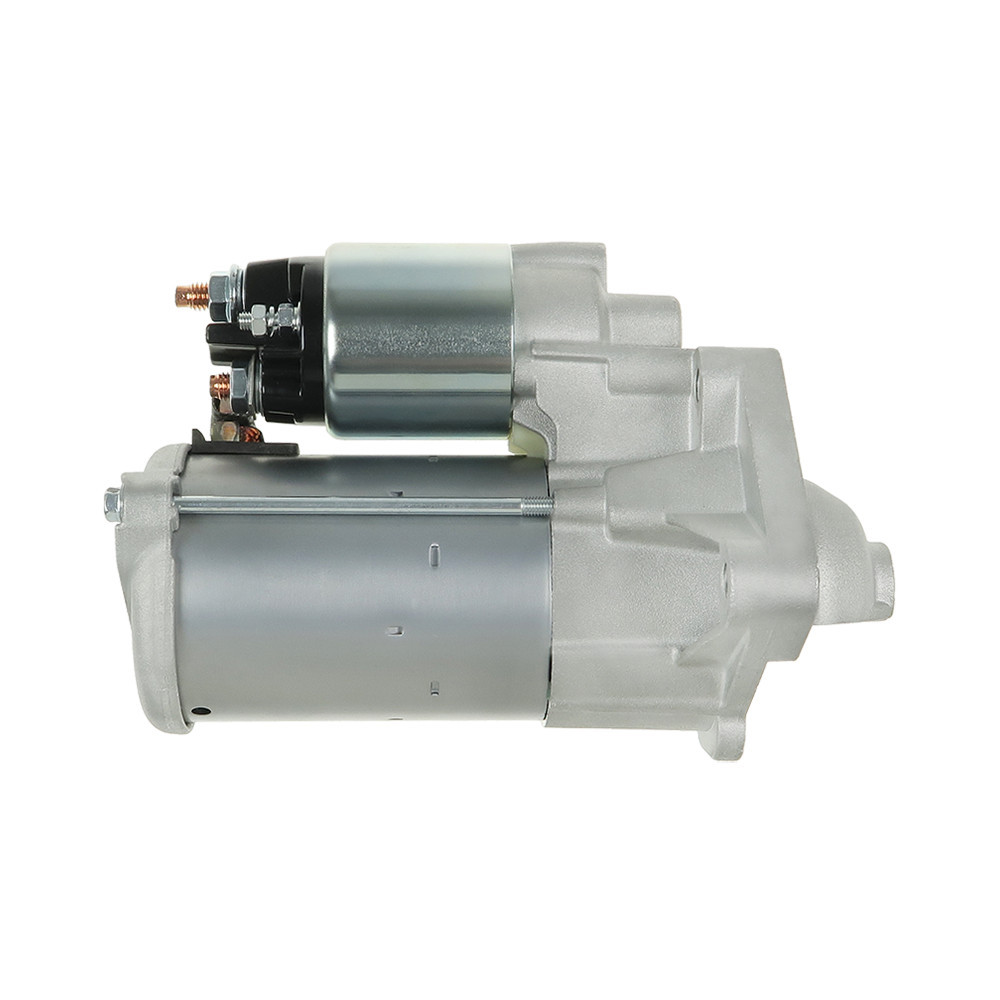

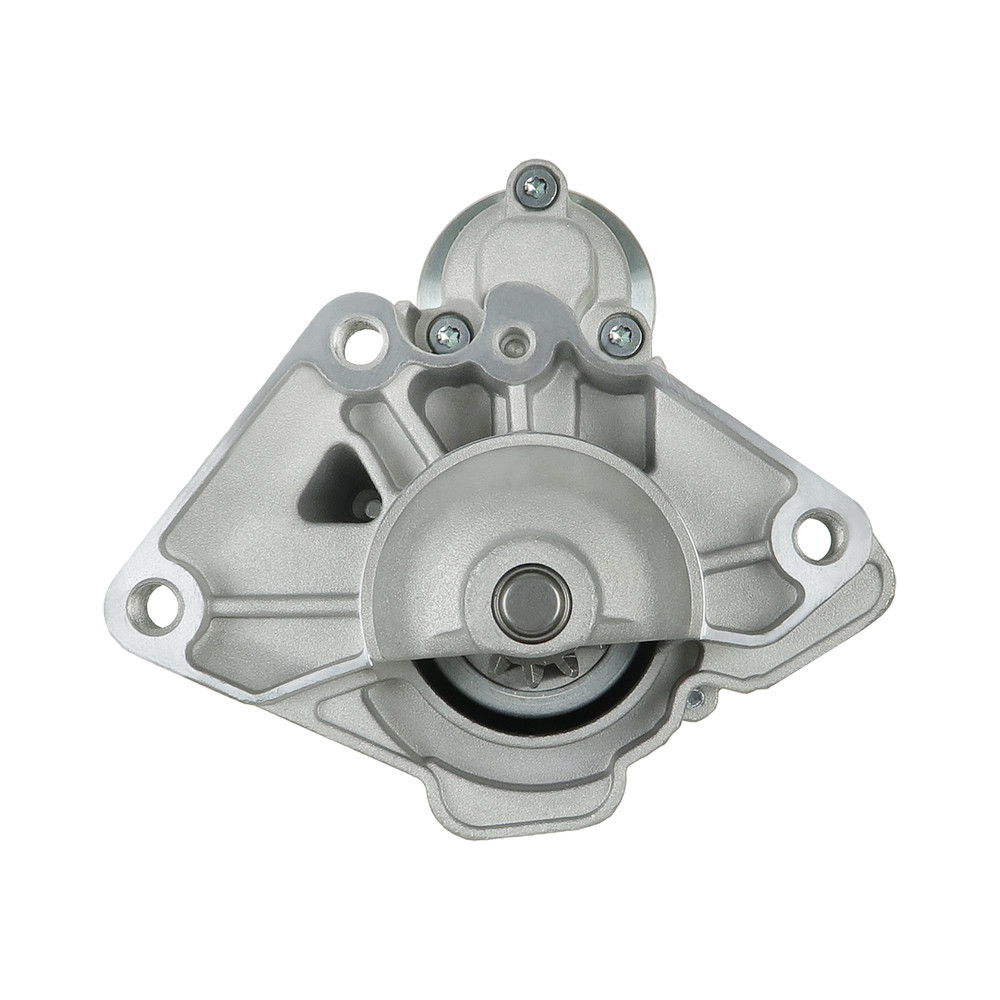

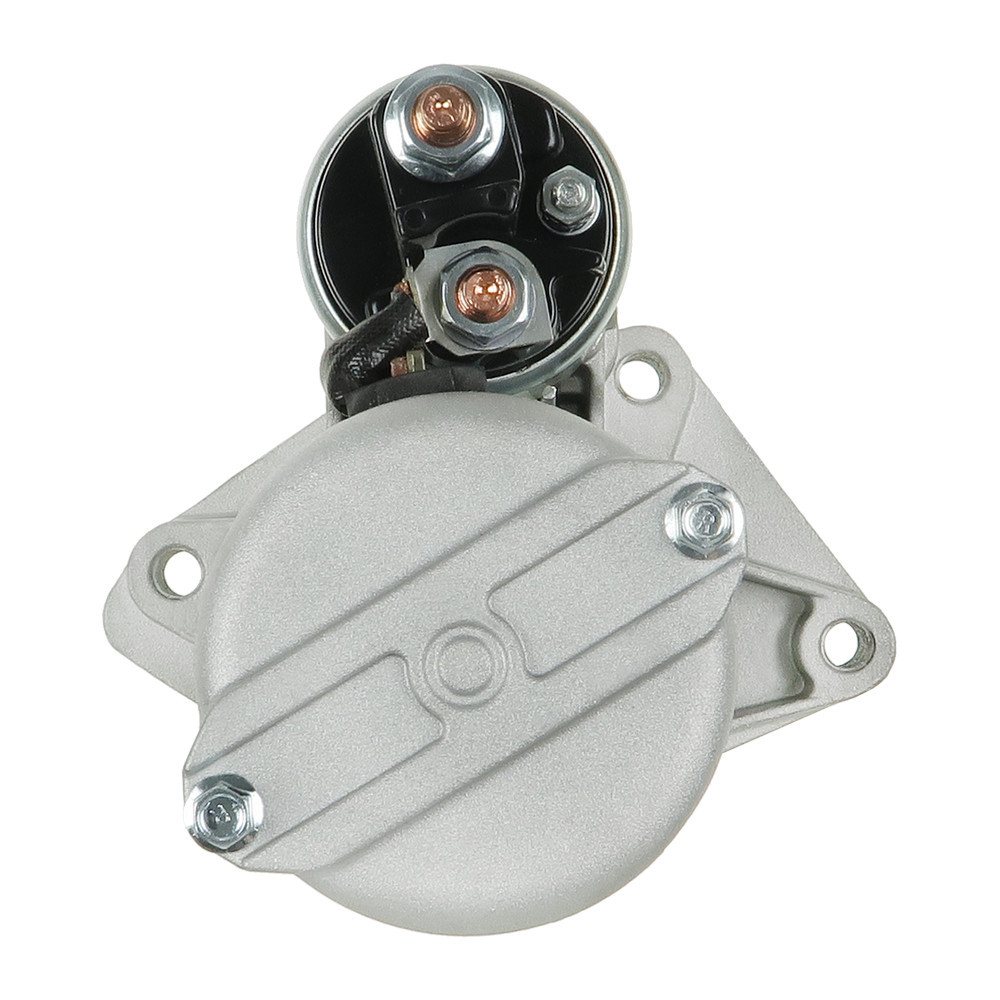

Starter Nissan PRIMASTAR Van (X82)

Reference:
- 0001170607 (BOSCH)

Application
Data sheet

NISSAN PRIMASTAR Van (X82)

Model

Engine

Displacement and power

From To

PRIMASTAR Van (X82) 2.0 dCi 110

M9R714

CCM:

1997

HP:

110

KW:

11.2021 =>

PRIMASTAR Van (X82) 2.0 dCi 110

M9R717

CCM:

1997

HP:

110

KW:

11.2021 =>

PRIMASTAR Van (X82) 2.0 dCi 130

M9R714

CCM:

1997

HP:

131

KW:

11.2021 =>

PRIMASTAR Van (X82) 2.0 dCi 150

M9R714

CCM:

1997

HP:

150

KW:

110

11.2021 =>

PRIMASTAR Van (X82) 2.0 dCi 150

M9R717

CCM:

1997

HP:

150

KW:

110

11.2021 =>

PRIMASTAR Van (X82) 2.0 dCi 170

M9R714

CCM:

1997

HP:

170

KW:

125

11.2021 =>

PRIMASTAR Van (X82) 2.0 dCi 170

M9R717

CCM:

1997

HP:

170

KW:

125

11.2021 =>

Genuine part : no
Type of part : Starter
Motorization : PRIMASTAR Van (X82)
Can be mounted on : Nissan
Mounting holes : 3
Number of teeth : 12
Rotation : CW (clockwise)
Voltage : 12
From : 2021

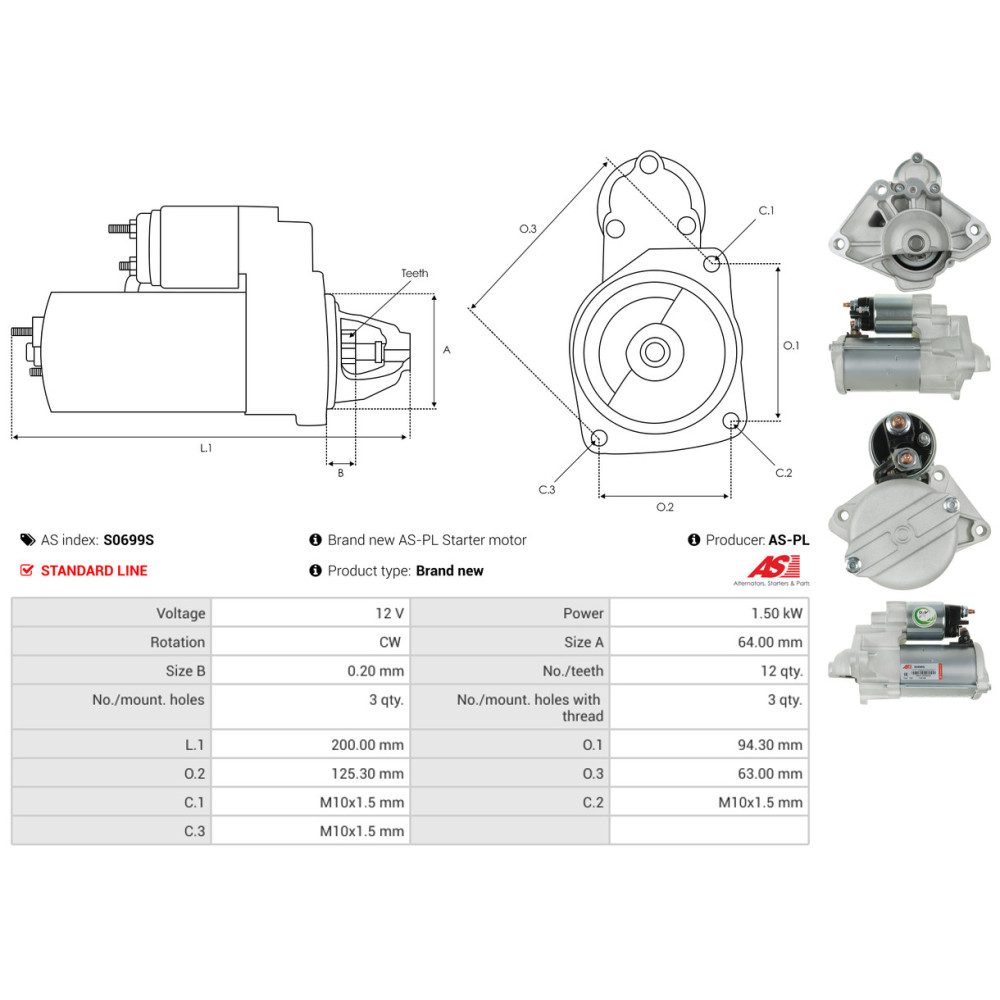

No./mount. holes with thread : 3
C.1 [ mm ] : M10x1.5
C.2 [ mm ] : M10x1.5
C.3 [ mm ] : M10x1.5
L.1 [ mm ] : 200.00
O.1 [ mm ] : 94.30
O.2 [ mm ] : 125.30
O.3 [ mm ] : 63.00
Taille A [ mm ] : 64.00
Taille B [ mm ] : 0.20
Type : PRIMASTAR Van (X82) 2.0 dCi 110, PRIMASTAR Van (X82) 2.0 dCi 130, PRIMASTAR Van (X82) 2.0 dCi 150, PRIMASTAR Van (X82) 2.0 dCi 170
Engine code : M9R714, M9R717
