Starter Mazda 626 V Station Wagon (GW)

MAZDA 626 V Station Wagon (GW)

Model

Engine

Displacement and power

From To

626 V Station Wagon (GW) 1.8 (GW8W)

FP33

CCM:

1840

HP:

KW:

02.1998 => 01.2000

626 V Station Wagon (GW) 1.8 (GW8W)

FP9A

CCM:

1840

HP:

100

KW:

01.2000 => 10.2002

626 V Station Wagon (GW) 2.0 (GWEW)

CCM:

1991

HP:

116

KW:

02.1998 => 10.2002

626 V Station Wagon (GW) 2.0 H.P. (GWEW)

FS2C

CCM:

1991

HP:

136

KW:

100

02.1998 => 10.2002

Genuine part : no
Type of part : Starter
Motorization : 626 V Station Wagon (GW)
Can be mounted on : Mazda
Years : 1998, 1999, 2000
Mounting holes : 3
Number of teeth : 8
Rotation : CW (clockwise)
Voltage : 12
No./mount. holes with thread : 2

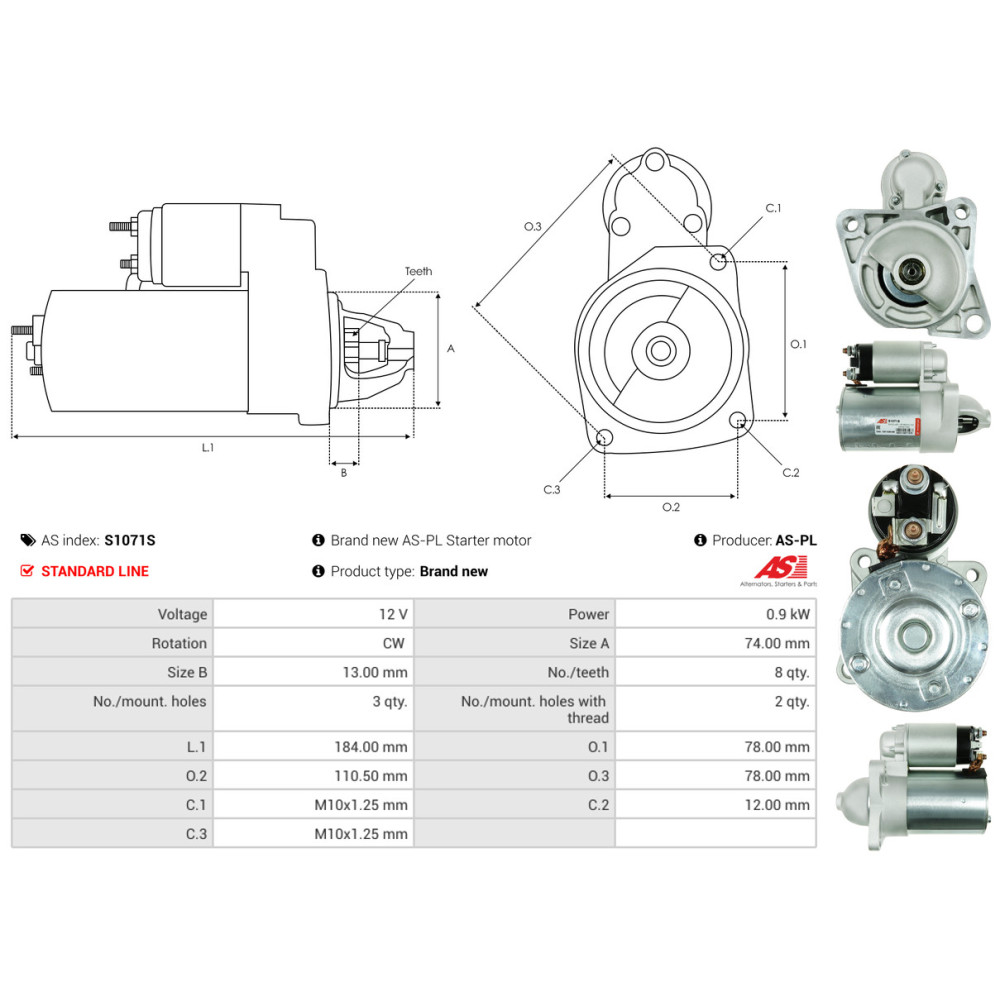

C.1 [ mm ] : M10x1.25
C.2 [ mm ] : 12.00
C.3 [ mm ] : M10x1.25
L.1 [ mm ] : 184.00
O.1 [ mm ] : 78.00
O.2 [ mm ] : 110.50
O.3 [ mm ] : 78.00
Taille A [ mm ] : 74.00
Taille B [ mm ] : 13.00
Type : 626 V Station Wagon (GW) 1.8 (GW8W), 626 V Station Wagon (GW) 2.0 (GWEW), 626 V Station Wagon (GW) 2.0 H.P. (GWEW)
Engine code : FP33, FP9A, FS, FS2C
