Starter Allis Chalmers Lift Truck

Reference:
- 1113274 (DELCO)

Application
Data sheet

ALLIS CHALMERS Lift Truck

Model

Engine

Displacement and power

From To

Lift Truck 40

4-203

CCM:

3320

HP:

KW:

01.1972 => 12.1982

Lift Truck 50

4-236

CCM:

3863

HP:

KW:

01.1972 => 12.1982

Lift Truck 700

4-203

CCM:

3320

HP:

KW:

01.1974 => 12.1979

Lift Truck ACP40

4-203.2

CCM:

3320

HP:

KW:

01.1979 => 12.1986

Lift Truck ACP50D

4-236

CCM:

3863

HP:

KW:

01.1979 => 12.1986

Lift Truck MY-30

4-236

CCM:

3863

HP:

KW:

01.1973 => 12.1981

Lift Truck MY-40B

4-236

CCM:

3863

HP:

KW:

01.1973 => 12.1981

Lift Truck MY-40C

4-236

CCM:

3863

HP:

KW:

01.1973 => 12.1981

Lift Truck MY-50B

4-236

CCM:

3863

HP:

KW:

01.1973 => 12.1981

Lift Truck MY-60B

4-236

CCM:

3863

HP:

KW:

01.1973 => 12.1981

Lift Truck MY-70B

4-236

CCM:

3863

HP:

KW:

01.1973 => 12.1981

Lift Truck MY-80B

4-236

CCM:

3863

HP:

KW:

01.1973 => 12.1981

Genuine part : no
Type of part : Starter
Motorization : Lift Truck
Can be mounted on : Allis Chalmers
Years : 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982
Mounting holes : 3
Number of teeth : 10
Rotation : CW (clockwise)
Voltage : 12
No./mount. holes with thread : 0

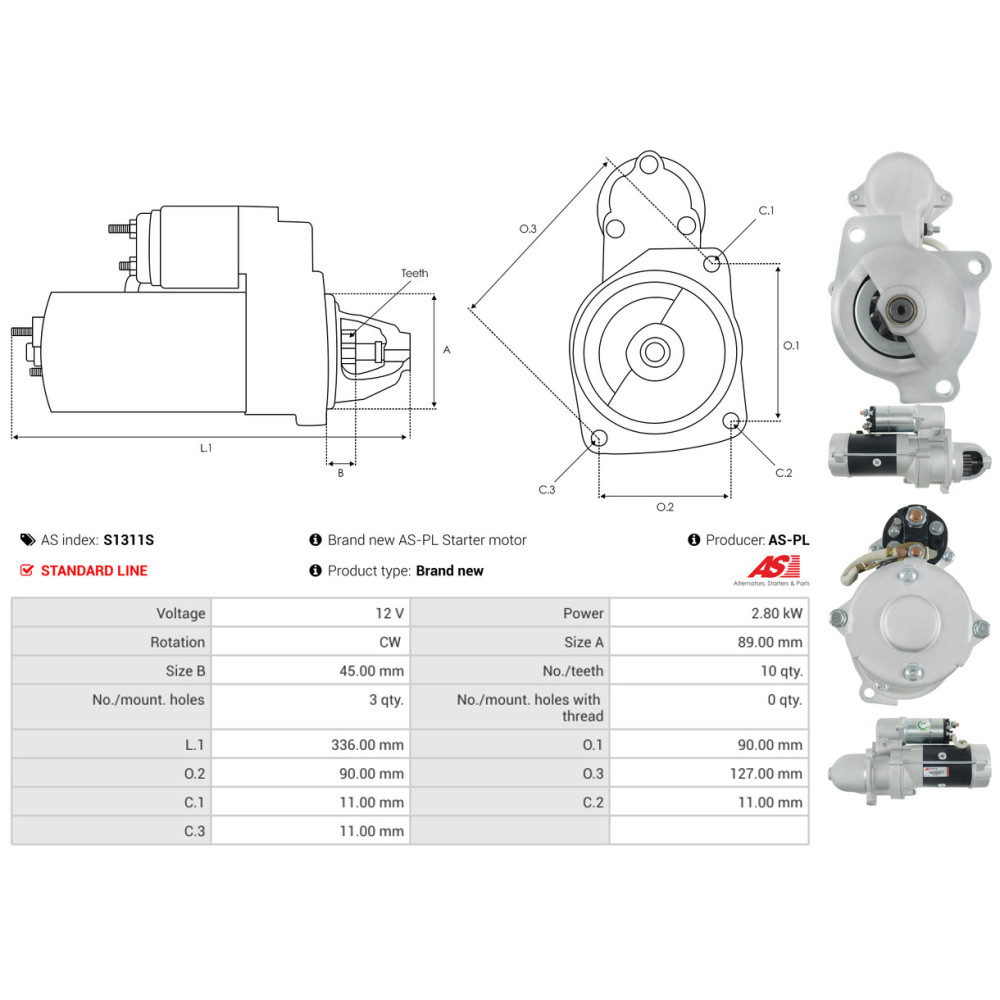

C.1 [ mm ] : 11.00
C.2 [ mm ] : 11.00
C.3 [ mm ] : 11.00
L.1 [ mm ] : 336.00
O.1 [ mm ] : 90.00
O.2 [ mm ] : 90.00
O.3 [ mm ] : 127.00
Taille A [ mm ] : 89.00
Taille B [ mm ] : 45.00
Type : Lift Truck 40, Lift Truck 50, Lift Truck 700, Lift Truck ACP40, Lift Truck ACP50D, Lift Truck MY-30, Lift Truck MY-40B, Lift Truck MY-40C, Lift Truck MY-50B, Lift Truck MY-60B, Lift Truck MY-70B, Lift Truck MY-80B
Engine code : 4-203, 4-203.2, 4-236
