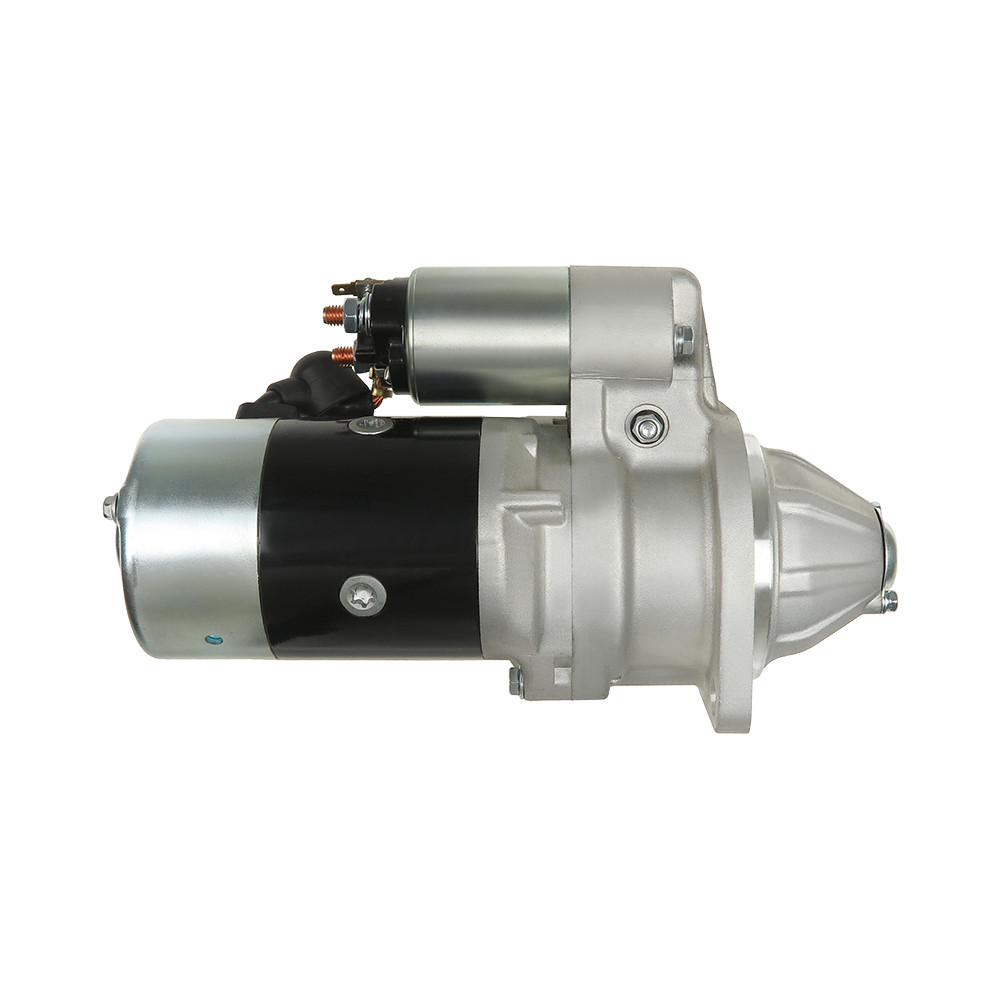

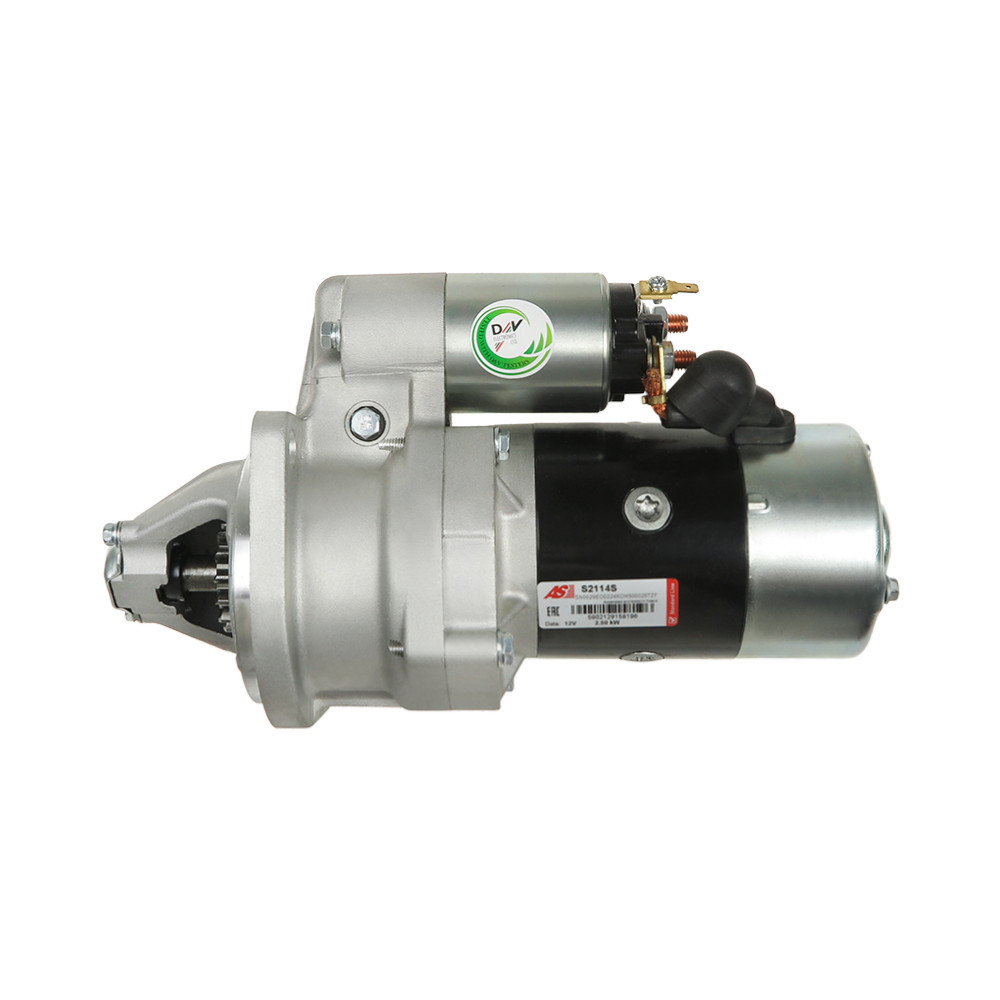

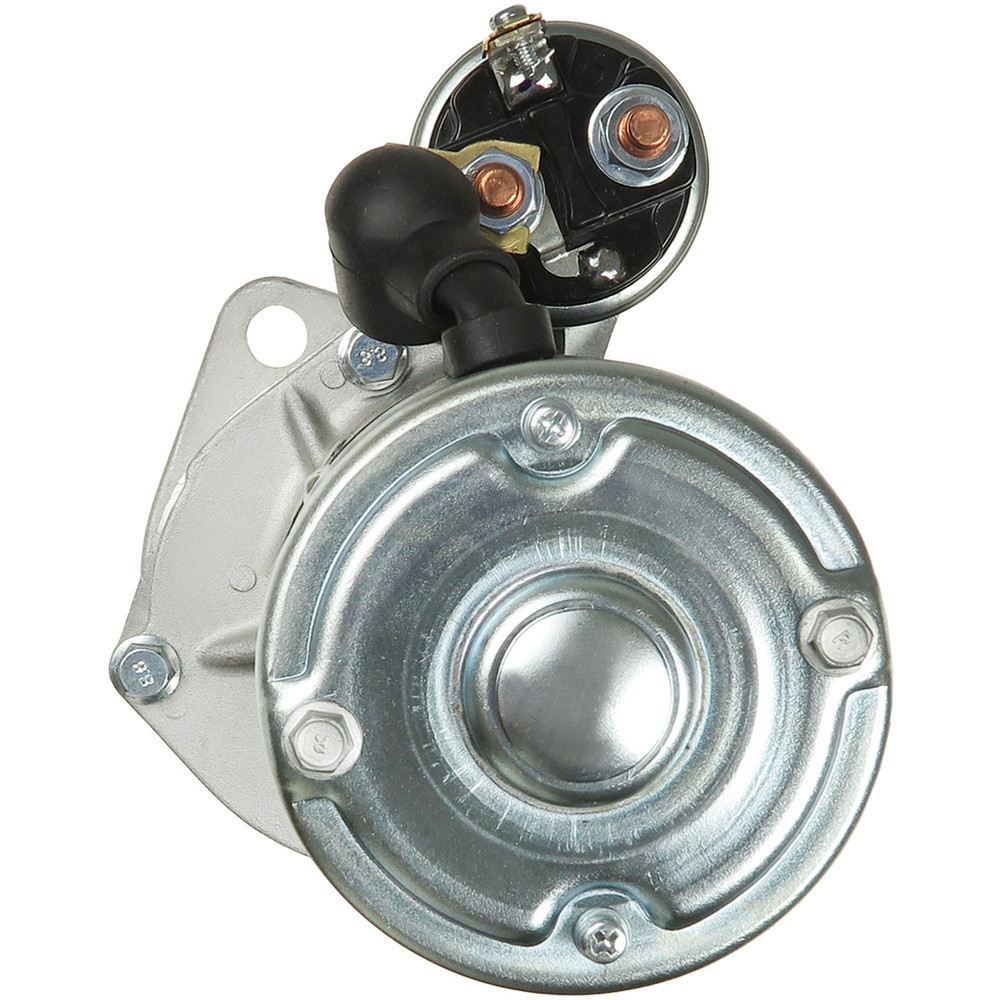

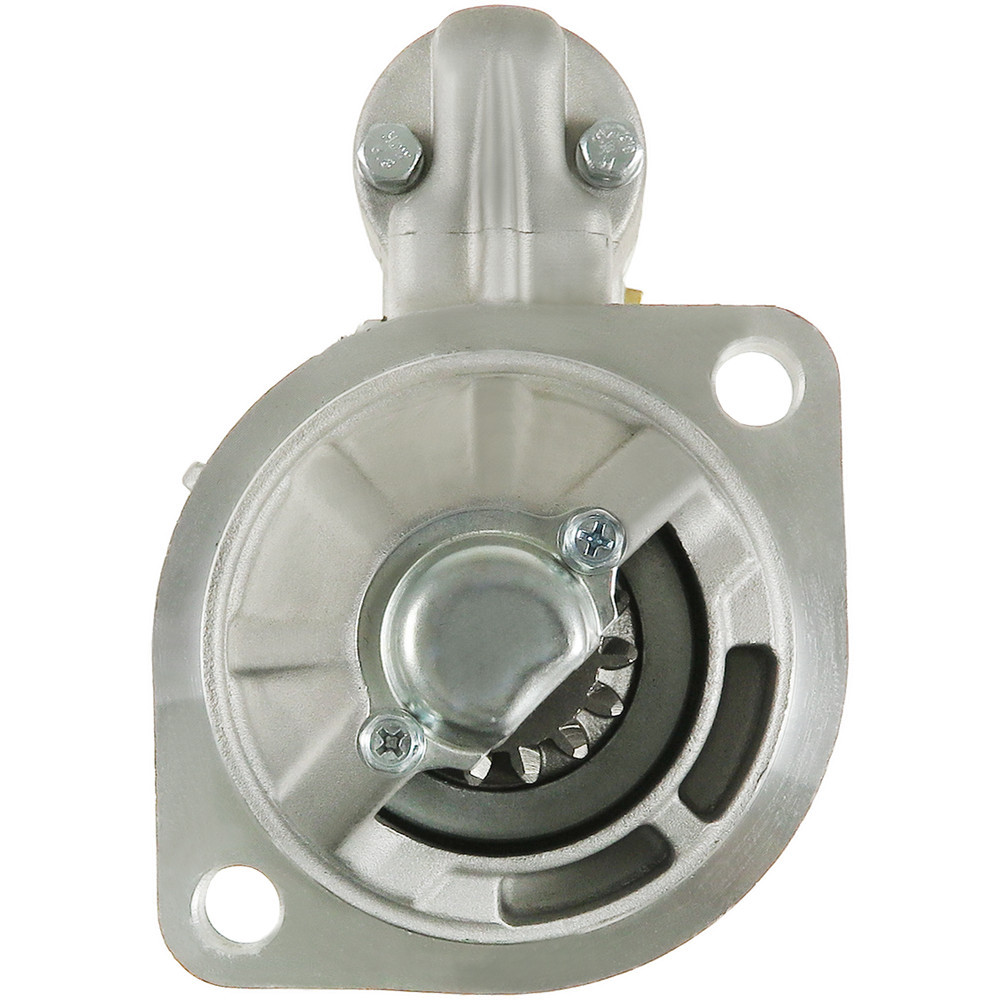

Starter Yanmar Engine

Reference:
- S13-41 (HITACHI)

Application
Data sheet

YANMAR Engine

Model

Engine

Displacement and power

From To

Engine

3D84-1C

CCM:

HP:

KW:

01.1983 => 12.1993

Engine

3T84

CCM:

HP:

KW:

01.1986 => 12.1996

Engine

3T90L

CCM:

HP:

KW:

01.1976 => 12.1986

Engine

3T95

CCM:

HP:

KW:

01.1980 => 12.1997

Engine

3T95L

CCM:

HP:

KW:

01.1980 => 12.1997

Engine

3TN82

CCM:

HP:

KW:

01.1986 => 12.1996

Engine

4T95

CCM:

HP:

KW:

01.1980 => 12.1997

Engine

4T95T

CCM:

HP:

KW:

01.1980 => 12.1997

Engine

4TN98

CCM:

HP:

KW:

01.1990 => 12.2000

Engine

LH-DTE

CCM:

HP:

KW:

01.1980 => 12.1995

Engine

LH-TE

CCM:

HP:

KW:

01.1980 => 12.1995

Engine

LH-THE

CCM:

HP:

KW:

01.1980 => 12.1995

Engine 3.5

4LH

CCM:

HP:

KW:

01.1987 => 12.1997

Engine 3.5

4LH-3TE

CCM:

HP:

KW:

01.1996 => 12.1997

Engine 3.5

4LHA

CCM:

HP:

KW:

01.1987 => 12.1997

Genuine part : no
Type of part : Starter
Motorization : Engine
Can be mounted on : Yanmar
Mounting holes : 2
Number of teeth : 15
Rotation : CW (clockwise)
Voltage : 12
From : 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
No./mount. holes with thread : 0

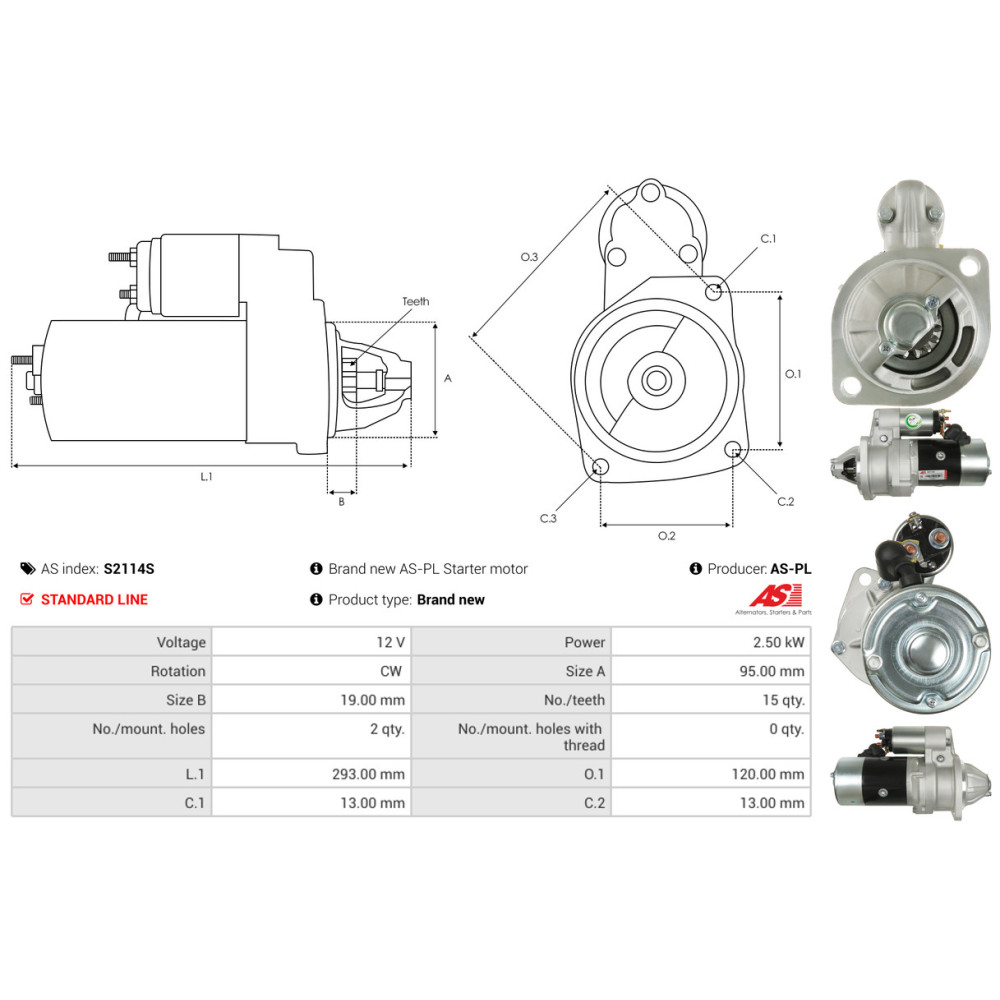

C.1 [ mm ] : 13.00
C.2 [ mm ] : 13.00
L.1 [ mm ] : 293.00
O.1 [ mm ] : 120.00
Taille A [ mm ] : 95.00
Taille B [ mm ] : 19.00
Type : Engine, Engine 3.5
Engine code : 3D84-1C, 3T84, 3T90L, 3T95, 3T95L, 3TN82, 4LH, 4LH-3TE, 4LHA, 4T95, 4T95T, 4TN98, LH-DTE, LH-TE, LH-THE
