MITSUBISHI CARISMA (DA_)
Model
Engine
Displacement and power
From To
CARISMA (DA_) 1.6 (DA1A)
4G92(SOHC16V)
CCM:
1597
HP:
90
KW:
66
07.1995 => 06.2006
CARISMA (DA_) 1.8 (DA2A)
4G93(SOHC16V)
CCM:
1834
HP:
116
KW:
85
07.1995 => 07.1997
CARISMA (DA_) 1.8 MSX - 16V (DA2A)
4G93(DOHC16V)
CCM:
1834
HP:
140
KW:
103
07.1995 => 07.1997
  • Genuine part : no
  • Type of part : Starter
  • Motorization : CARISMA (DA_)
  • Can be mounted on : Mitsubishi
  • Years : 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006
  • Mounting holes : 2
  • Number of teeth : 8
  • Rotation : CW (clockwise)
  • Voltage : 12
  • Number of fitted teeth : 8
  • No./mount. holes with thread : 2

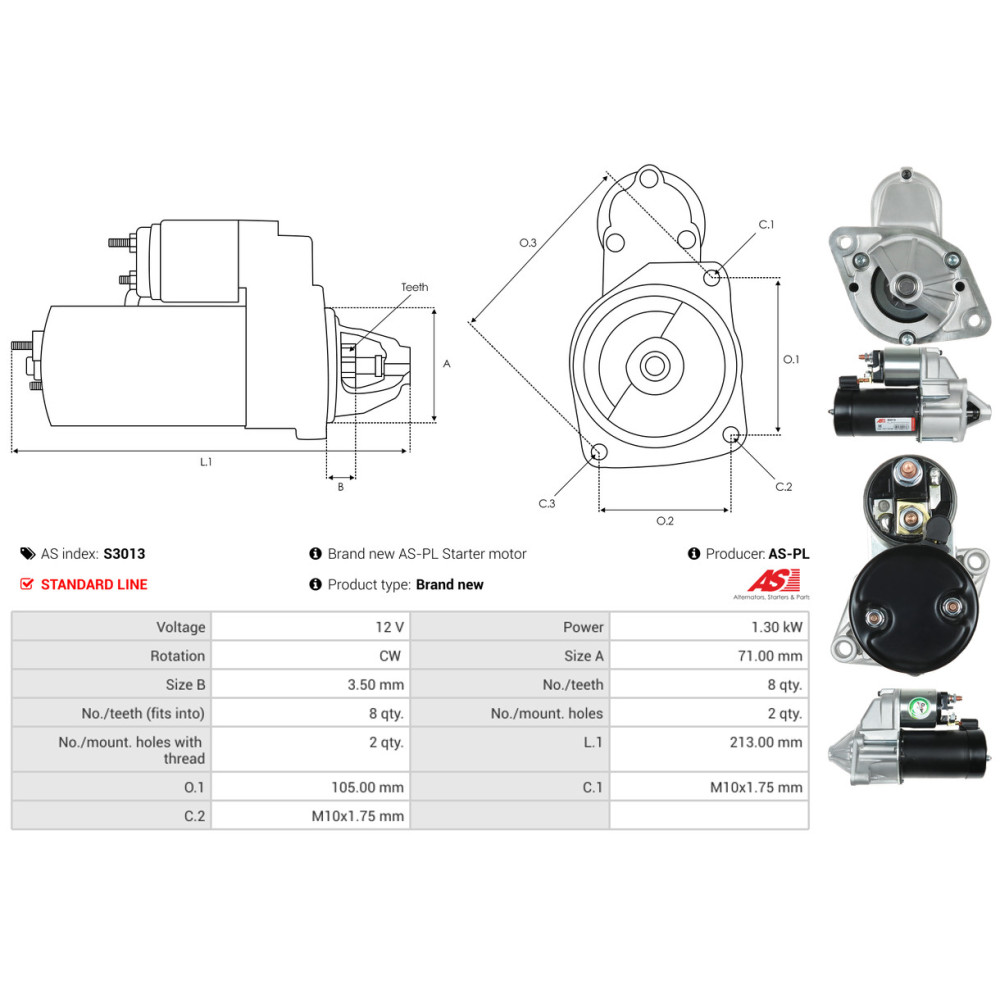

  • C.1 [ mm ] : M10x1.75
  • C.2 [ mm ] : M10x1.75
  • L.1 [ mm ] : 213.00
  • O.1 [ mm ] : 105.00
  • Taille A [ mm ] : 71.00
  • Taille B [ mm ] : 3.50
  • Type : CARISMA (DA_) 1.6 (DA1A), CARISMA (DA_) 1.8 (DA2A), CARISMA (DA_) 1.8 MSX - 16V (DA2A)
  • Engine code : 4G92(SOHC16V), 4G93(DOHC16V), 4G93(SOHC16V)
