Starter Audi A3 (8L1)

Reference:
- D7RS130 (VALEO)

Application
Data sheet

AUDI A3 (8L1)

Model

Engine

Displacement and power

From To

A3 (8L1) 1.6

AEH

CCM:

1595

HP:

101

KW:

09.1996 => 05.2003

A3 (8L1) 1.6

AKL

CCM:

1595

HP:

101

KW:

09.1996 => 05.2003

A3 (8L1) 1.6

APF

CCM:

1595

HP:

101

KW:

09.1996 => 05.2003

A3 (8L1) 1.9 TDI

AGR

CCM:

1896

HP:

KW:

09.1996 => 07.2001

A3 (8L1) 1.9 TDI

AHF

CCM:

1896

HP:

110

KW:

08.1997 => 07.2001

A3 (8L1) 1.9 TDI

ALH

CCM:

1896

HP:

KW:

09.1996 => 07.2001

A3 (8L1) 1.9 TDI

ASV

CCM:

1896

HP:

110

KW:

08.1997 => 07.2001

A3 (8L1) 1.9 TDI

ASZ

CCM:

1896

HP:

130

KW:

08.2000 => 05.2003

A3 (8L1) 1.9 TDI

ATD

CCM:

1896

HP:

100

KW:

10.2000 => 05.2003

A3 (8L1) 1.9 TDI

AXR

CCM:

1896

HP:

100

KW:

10.2000 => 05.2003

A3 (8L1) 1.9 TDI quattro

ASZ

CCM:

1896

HP:

130

KW:

08.2000 => 05.2003

A3 (8L1) S3 quattro

AMK

CCM:

1781

HP:

210

KW:

154

03.1999 => 04.2002

A3 (8L1) S3 quattro

APY

CCM:

1781

HP:

210

KW:

154

03.1999 => 04.2002

A3 (8L1) S3 quattro

AUL

CCM:

1781

HP:

210

KW:

154

03.1999 => 04.2002

Genuine part : no
Type of part : Starter
Motorization : A3 (8L1)
Can be mounted on : Audi
Years : 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003

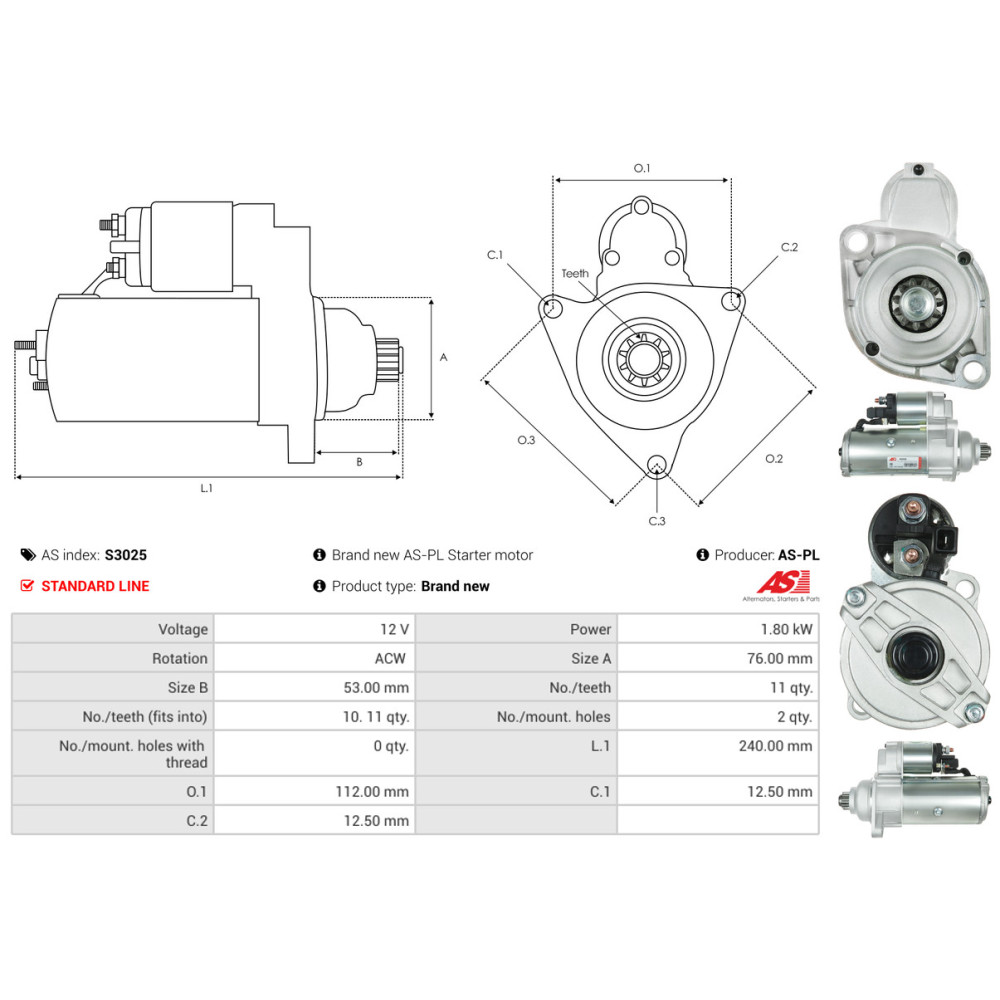

Mounting holes : 2
Number of teeth : 11
Rotation : ACW (counterclockwise)
Voltage : 12
Number of fitted teeth : 10, 11
No./mount. holes with thread : 0
C.1 [ mm ] : 12.50
C.2 [ mm ] : 12.50
L.1 [ mm ] : 240.00
O.1 [ mm ] : 112.00
Taille A [ mm ] : 76.00
Taille B [ mm ] : 53.00
Type : A3 (8L1) 1.6, A3 (8L1) 1.9 TDI, A3 (8L1) 1.9 TDI quattro, A3 (8L1) S3 quattro
Engine code : AEH, AGR, AHF, AKL, ALH, AMK, APF, APY, ASV, ASZ, ATD, AUL, AXR
