Home>Starter>Starter Mazda 121 II (DB)
MAZDA 121 II (DB)
Model
Engine
Displacement and power
From To
121 II (DB) 1.1
B1
CCM:
1138
HP:
54
KW:
40
11.1990 => 10.1993
121 II (DB) 1.3 16V (DB3PA)
B3C9
CCM:
1324
HP:
53
KW:
39
11.1990 => 03.1996
121 II (DB) 1.3 i 16V (DB3PA)
B3C9
CCM:
1324
HP:
72
KW:
53
11.1990 => 03.1996
  • Genuine part : no
  • Type of part : Starter
  • Motorization : 121 II (DB)
  • Can be mounted on : Mazda
  • Years : 1990, 1991, 1992, 1993

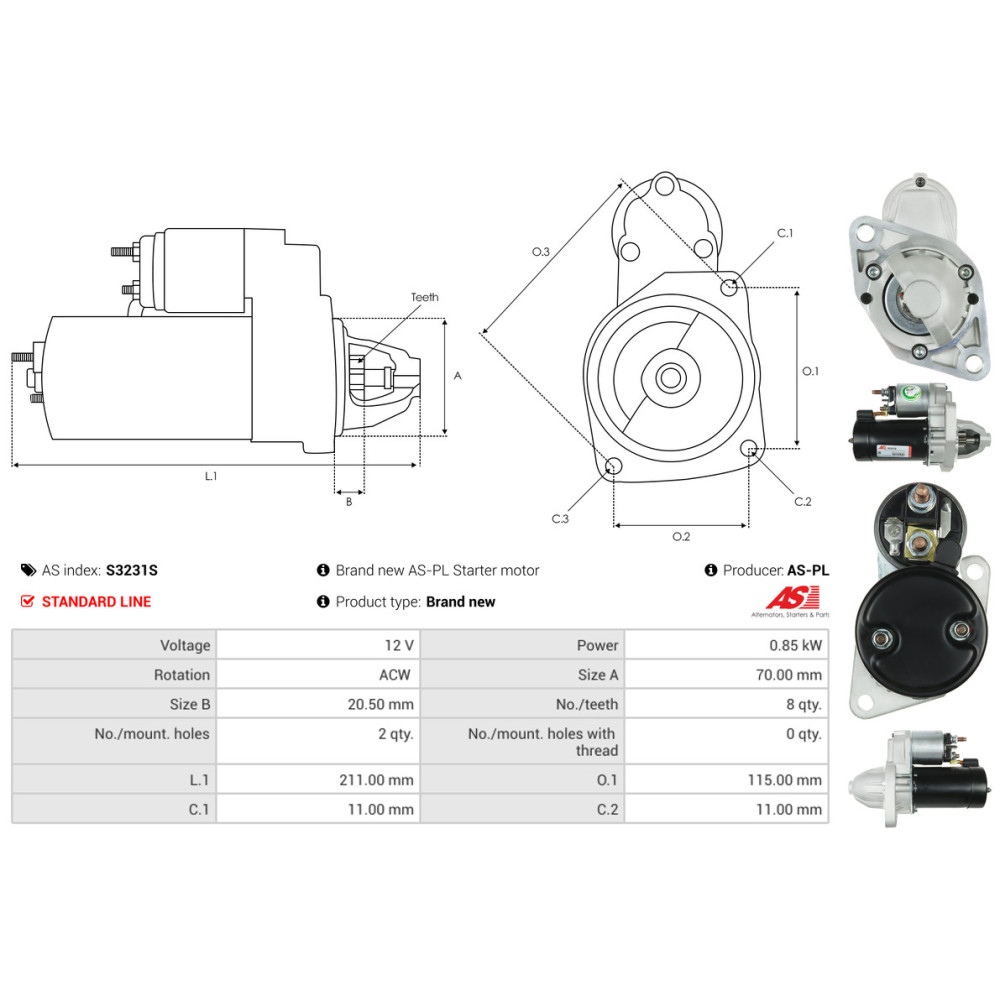

  • Mounting holes : 2
  • Number of teeth : 8
  • Rotation : ACW (counterclockwise)
  • Voltage : 12
  • No./mount. holes with thread : 0
  • C.1 [ mm ] : 11.00
  • C.2 [ mm ] : 11.00
  • L.1 [ mm ] : 211.00
  • O.1 [ mm ] : 115.00
  • Taille A [ mm ] : 70.00
  • Taille B [ mm ] : 20.50
  • Type : 121 II (DB) 1.1, 121 II (DB) 1.3 16V (DB3PA), 121 II (DB) 1.3 i 16V (DB3PA)
  • Engine code : B1, B3C9
