DS DS 7 Crossback (J4_, JR_, JC_)
Model
Engine
Displacement and power
From To
DS 7 Crossback (J4_, JR_, JC_) 1.5 BlueHDi 130 (JCYHZJ, JCYHZR)
YHZ(DV5RC)
CCM:
1499
HP:
130
KW:
96
09.2017 =>
  • Genuine part : no

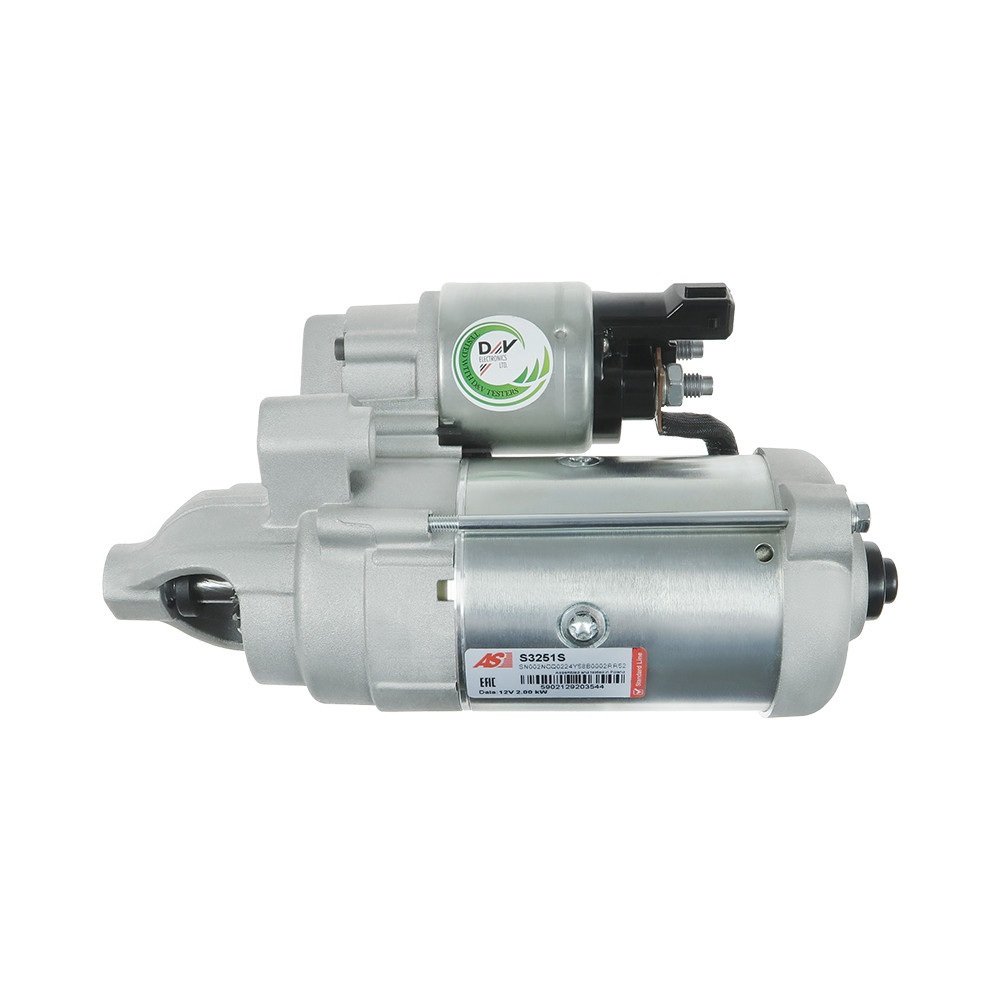

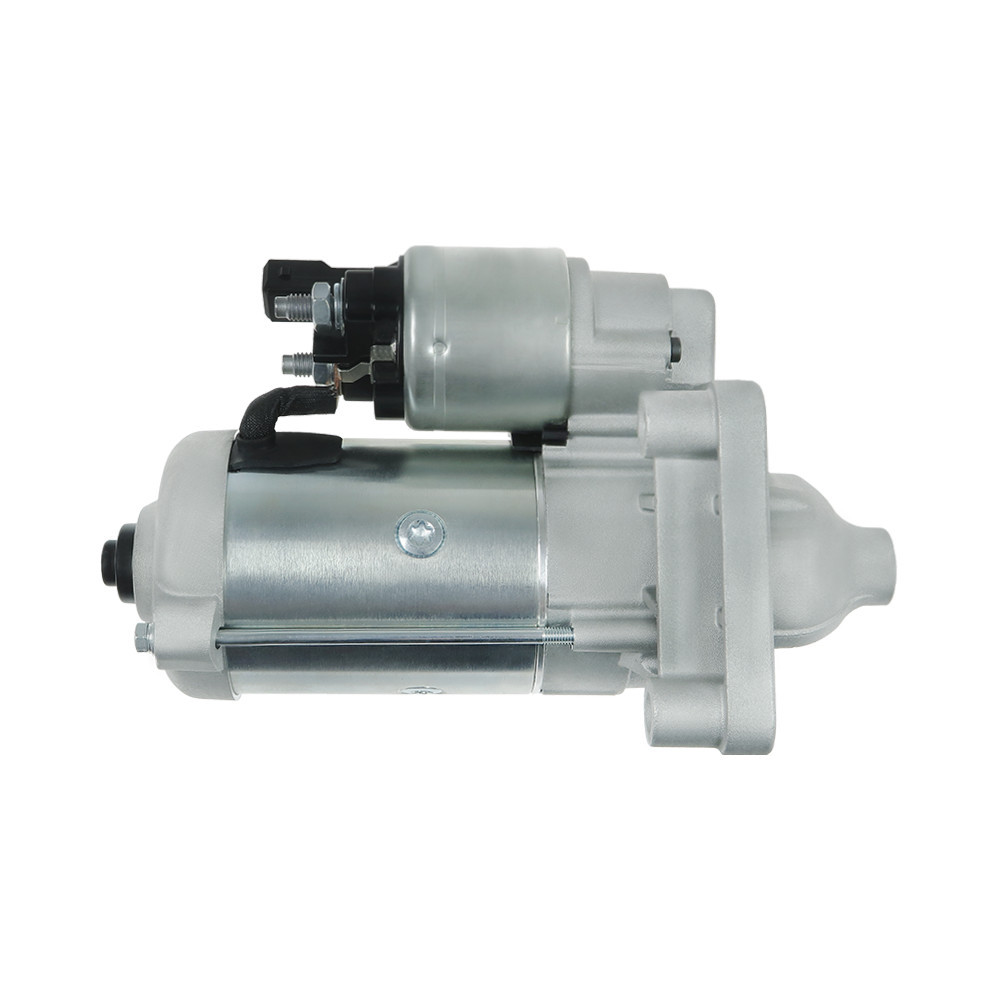

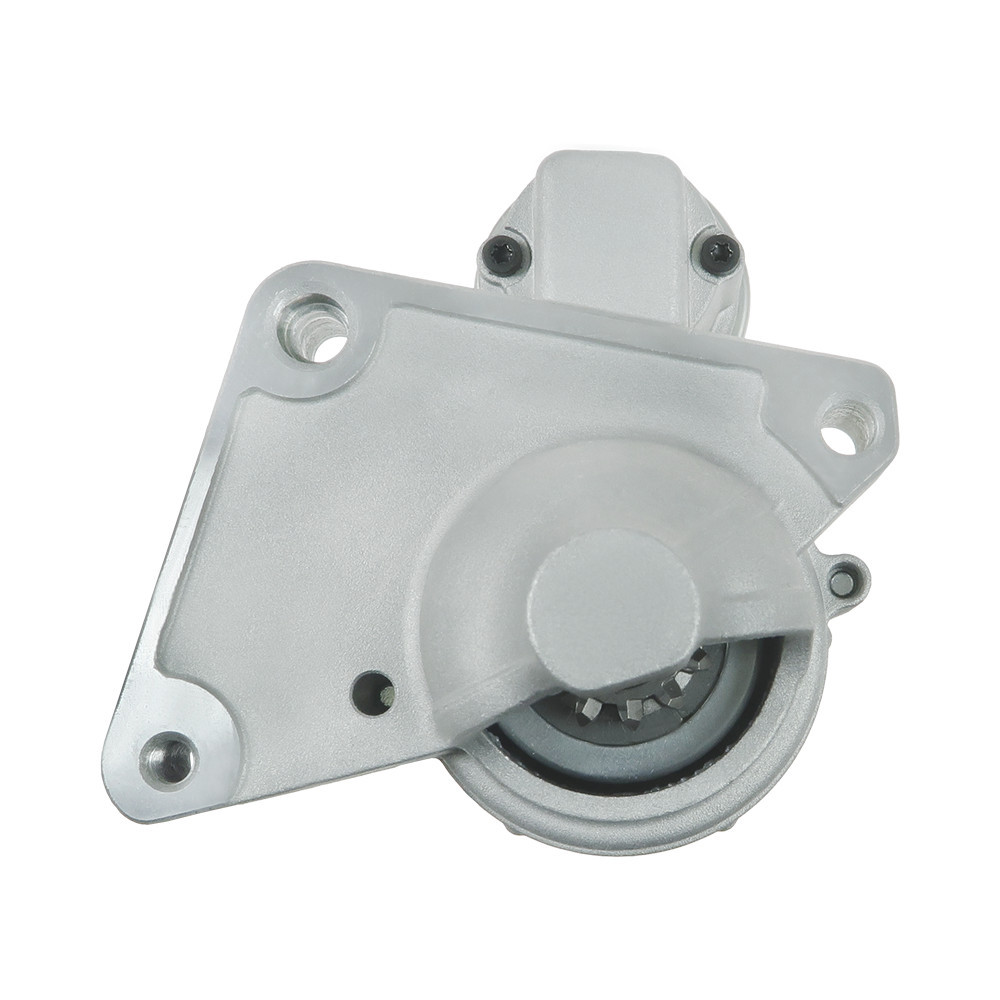

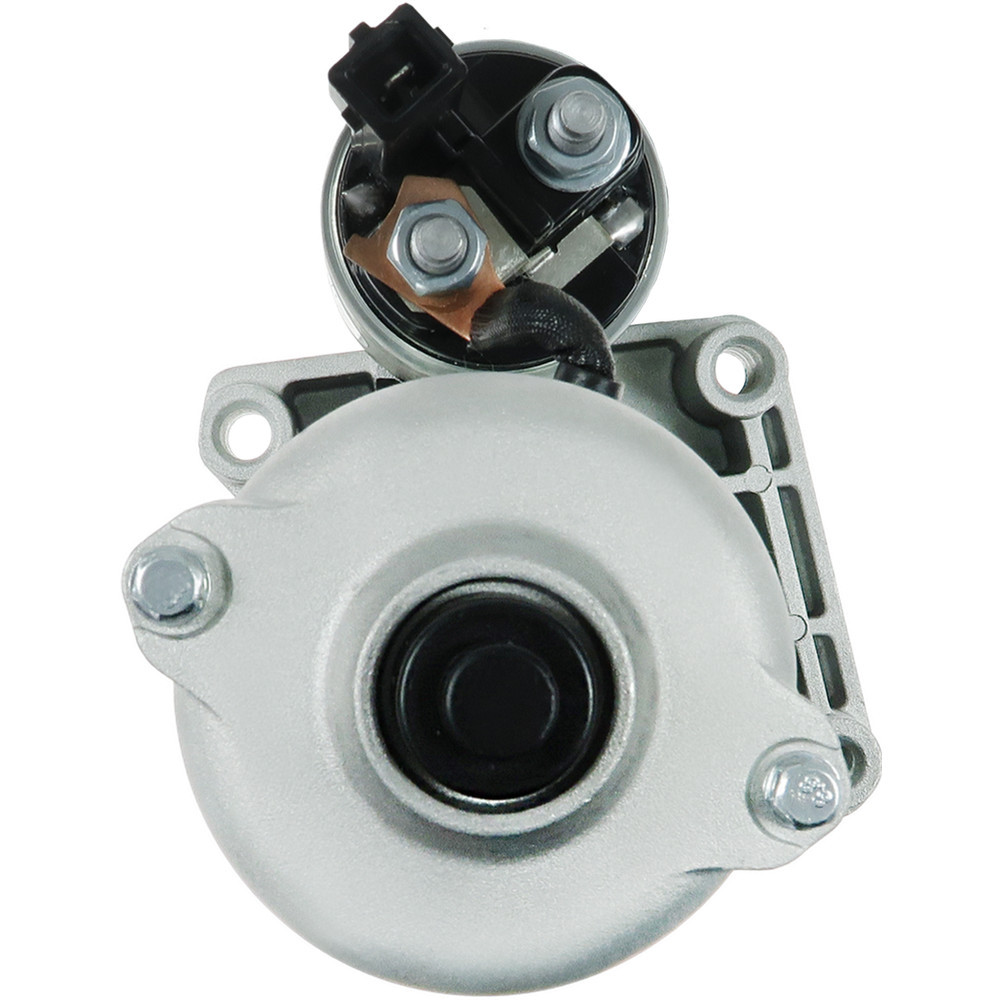

  • Type of part : Starter
  • Motorization : DS 7 Crossback (J4_, JR_, JC_)
  • Can be mounted on : DS
  • Mounting holes : 3
  • Number of teeth : 12
  • Rotation : CW (clockwise)
  • Voltage : 12
  • From : 2017
  • No./mount. holes with thread : 1

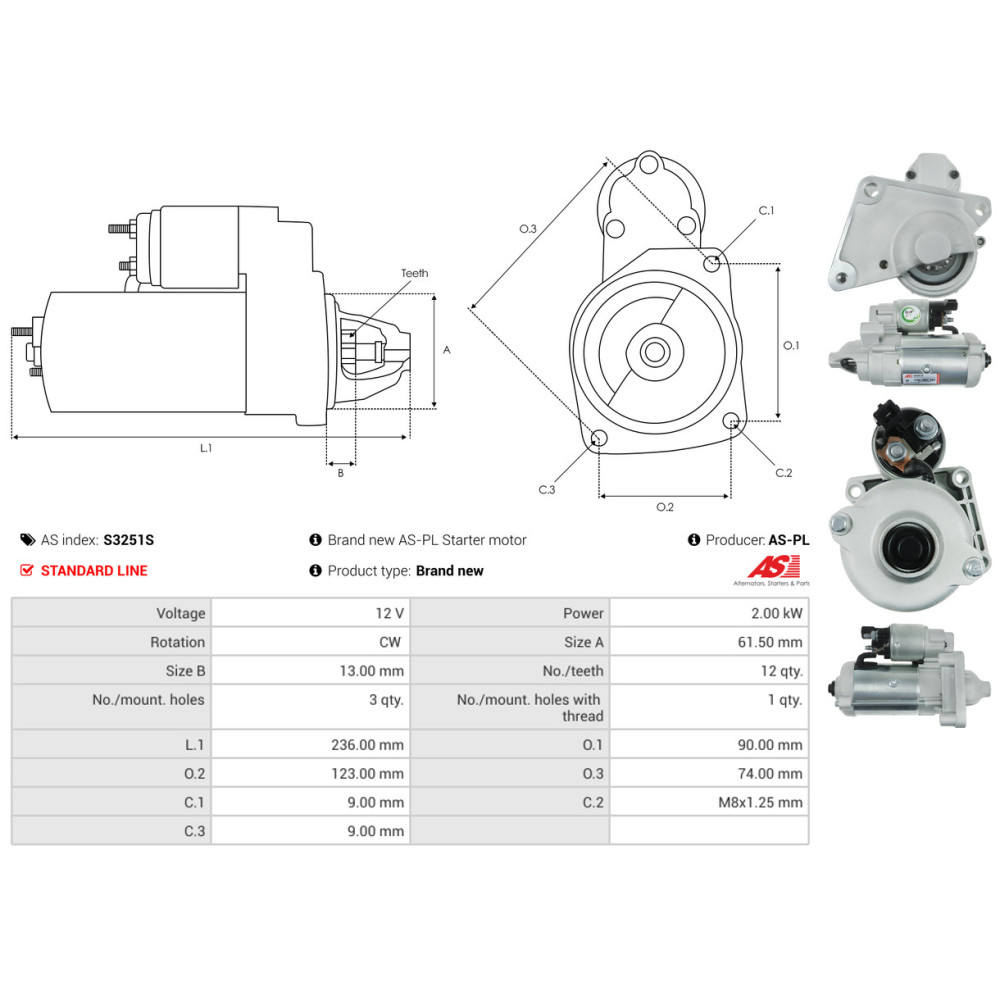

  • C.1 [ mm ] : 9.00
  • C.2 [ mm ] : M8x1.25
  • C.3 [ mm ] : 9.00
  • L.1 [ mm ] : 236.00
  • O.1 [ mm ] : 90.00
  • O.2 [ mm ] : 123.00
  • O.3 [ mm ] : 74.00
  • Taille A [ mm ] : 61.50
  • Taille B [ mm ] : 13.00
  • Type : DS 7 Crossback (J4_, JR_, JC_) 1.5 BlueHDi 130 (JC
  • Engine code : YHZ(DV5RC)
