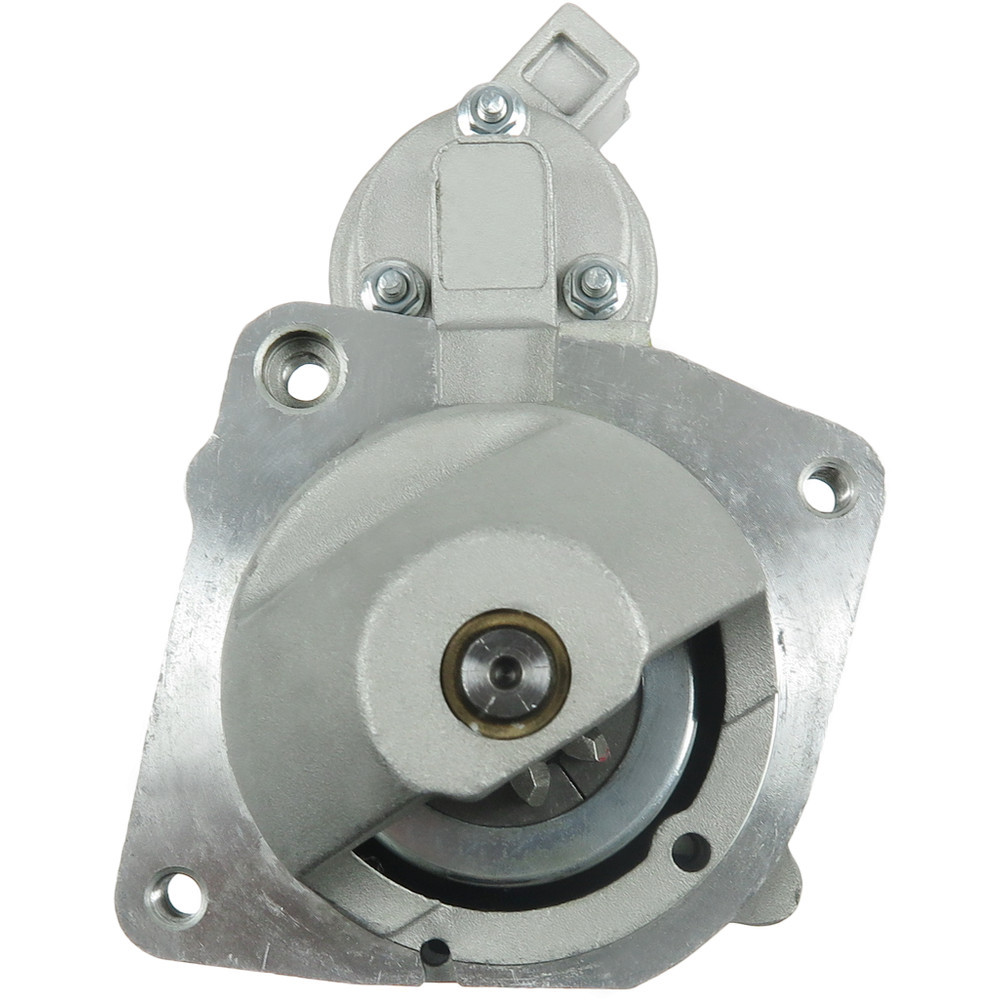

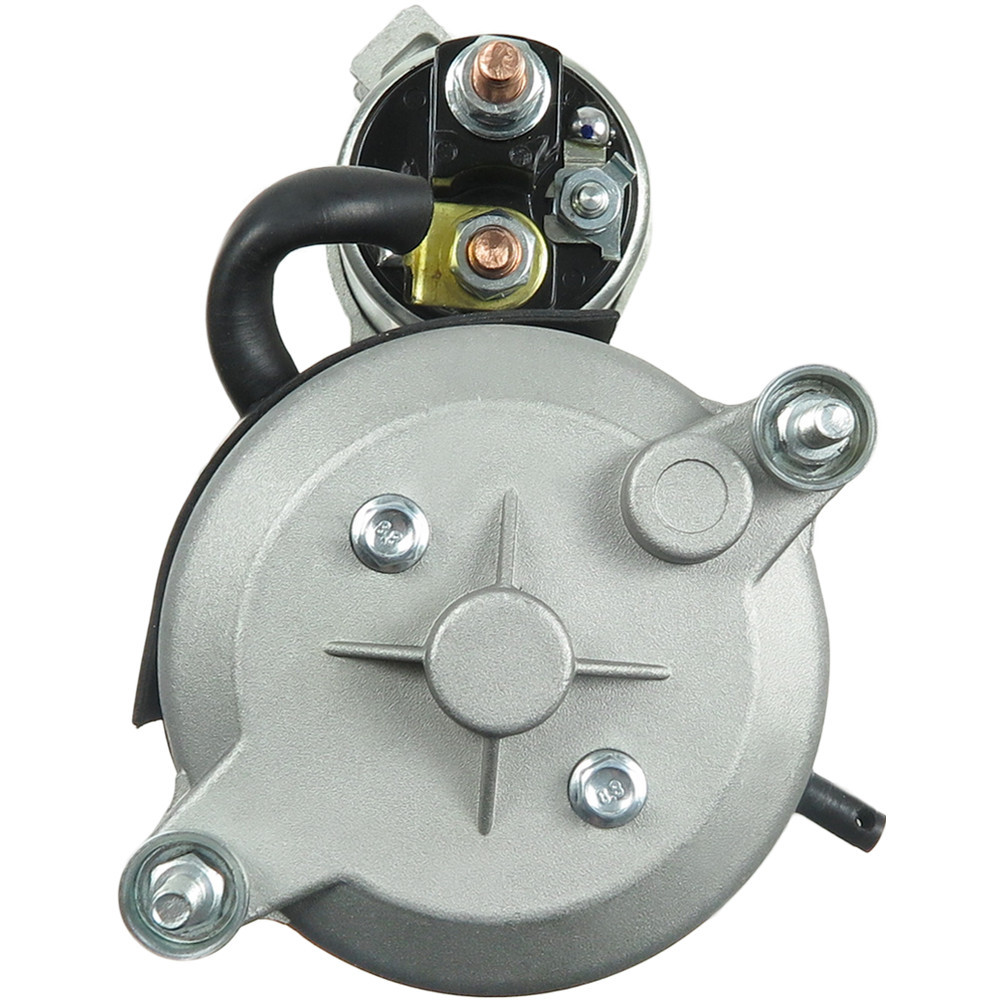

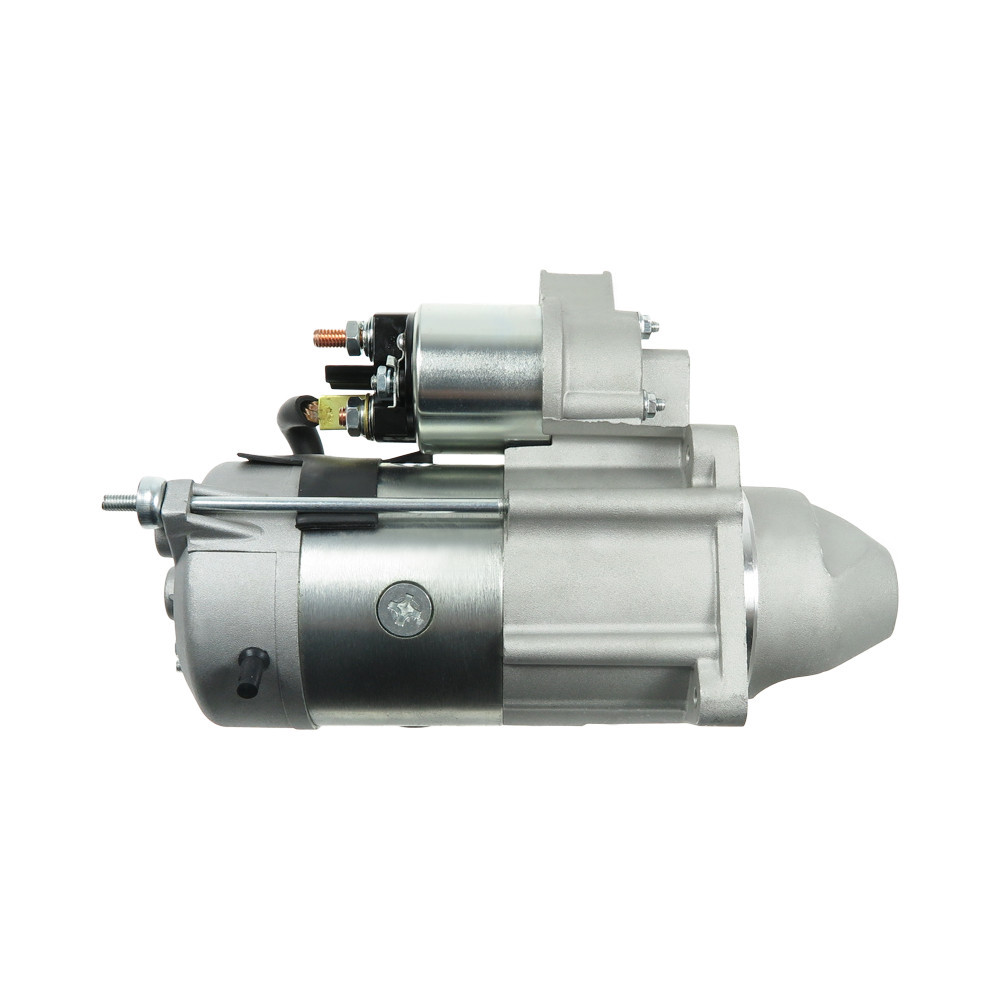

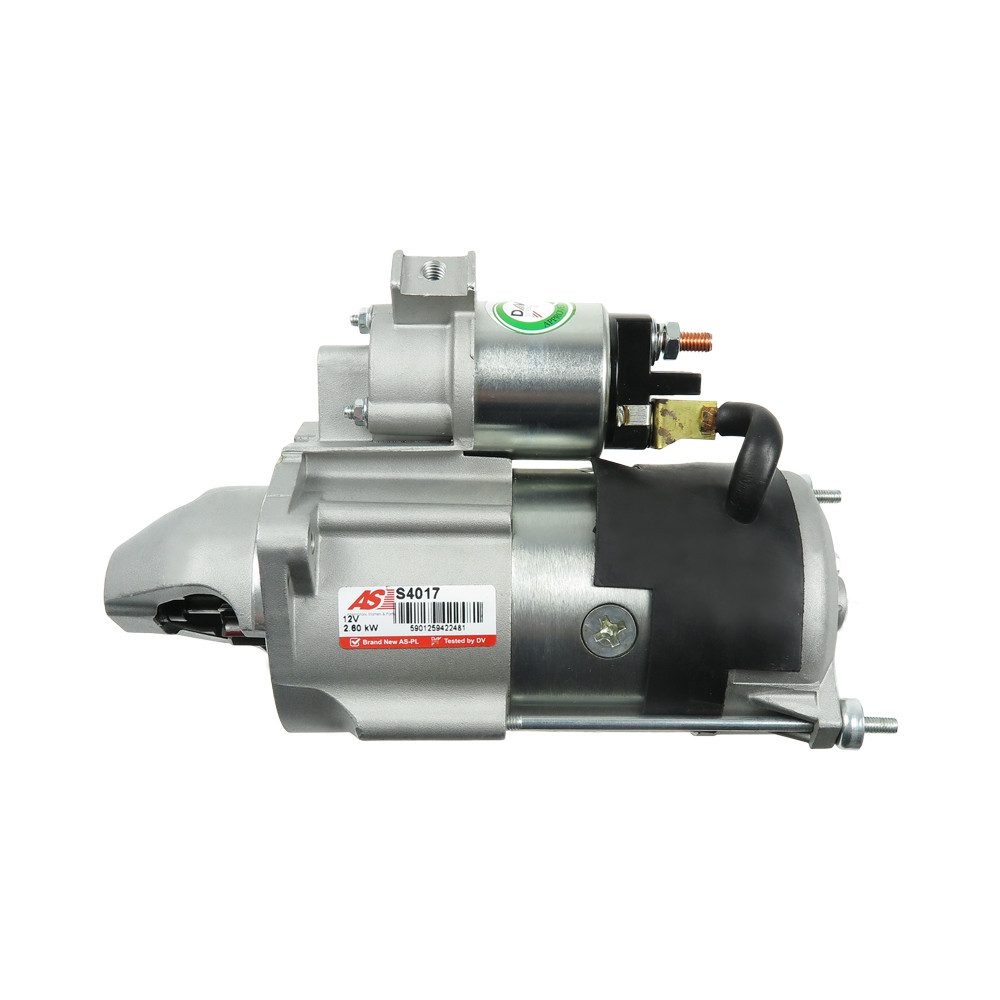

Starter Fiat DUCATO Bus (244_)

Reference:
- 0986018960 (BOSCH)

Application
Data sheet

FIAT DUCATO Bus (244_)

Model

Engine

Displacement and power

From To

DUCATO Bus (244_) 2.3 JTD

F1AE0481C

CCM:

2286

HP:

110

KW:

12.2001 => 07.2006

DUCATO Bus (244_) 2.8 JTD

8140.43N

CCM:

2800

HP:

145

KW:

107

04.2004 => 07.2006

DUCATO Bus (244_) 2.8 JTD

8140.43S

CCM:

2798

HP:

128

KW:

12.2001 =>

DUCATO Bus (244_) 2.8 JTD 4x4

8140.43S

CCM:

2798

HP:

128

KW:

12.2001 => 07.2006

DUCATO Bus (244_) 2.8 TD

8140.43

CCM:

2799

HP:

122

KW:

11.2003 => 07.2006

DUCATO Bus (244_) 2.8 TD 4x4

8140.43

CCM:

2799

HP:

122

KW:

11.2003 => 07.2006

Genuine part : no
Type of part : Starter
Motorization : DUCATO Bus (244_)
Can be mounted on : Fiat
Mounting holes : 3
Number of teeth : 9
Rotation : CW (clockwise)
Voltage : 12
From : 2001, 2002, 2003, 2004, 2005, 2006
Number of fitted teeth : 9
No./mount. holes with thread : 3

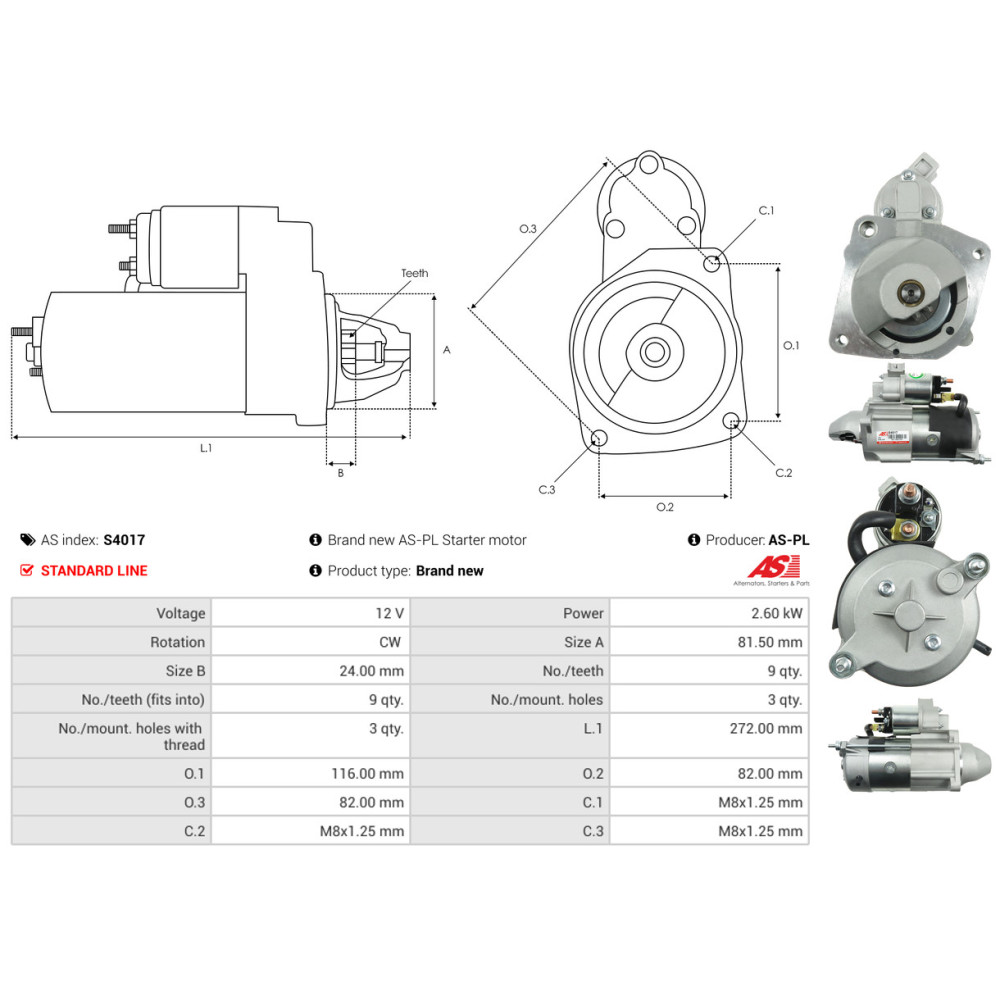

C.1 [ mm ] : M8x1.25
C.2 [ mm ] : M8x1.25
C.3 [ mm ] : M8x1.25
L.1 [ mm ] : 272.00
O.1 [ mm ] : 116.00
O.2 [ mm ] : 82.00
O.3 [ mm ] : 82.00
Taille A [ mm ] : 81.50
Taille B [ mm ] : 24.00
Type : DUCATO Bus (244_) 2.3 JTD, DUCATO Bus (244_) 2.8 JTD, DUCATO Bus (244_) 2.8 JTD 4x4, DUCATO Bus (244_) 2.8 TD, DUCATO Bus (244_) 2.8 TD 4x4
Engine code : 8140.43, 8140.43N, 8140.43S, F1AE0481C
