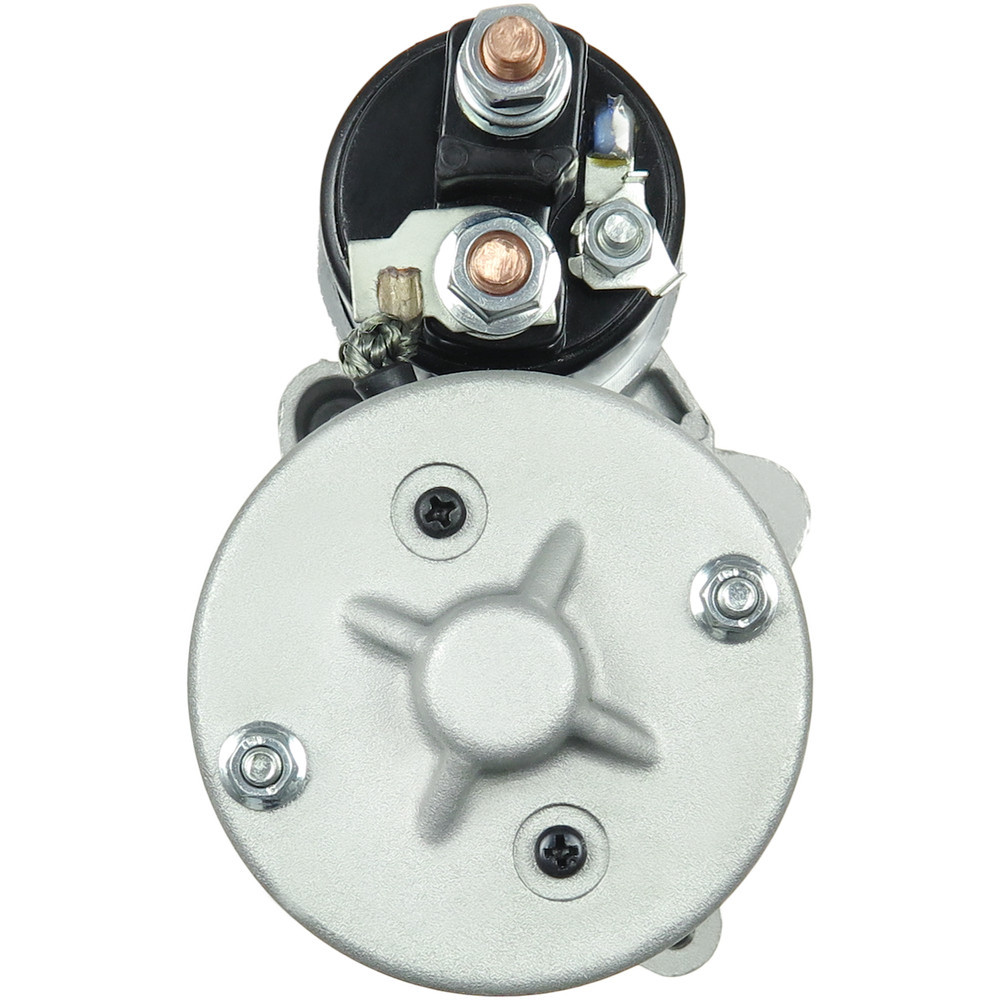

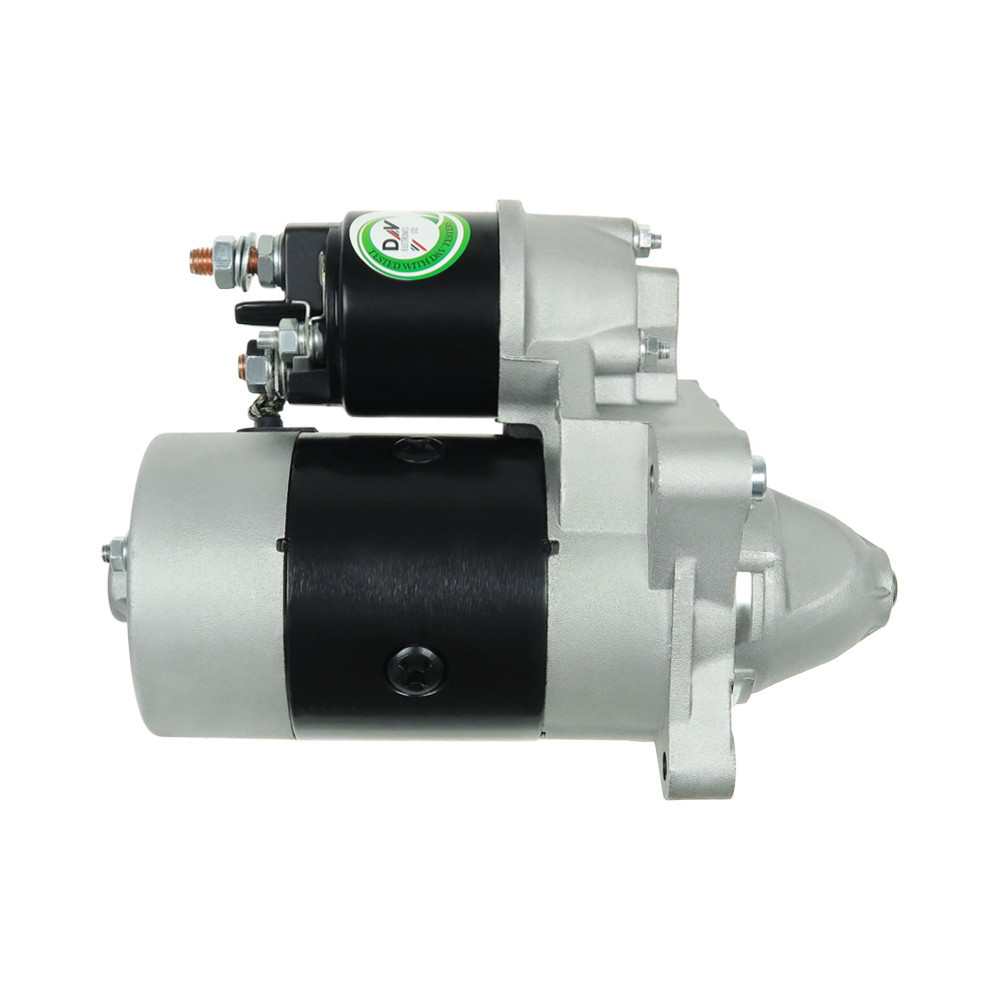

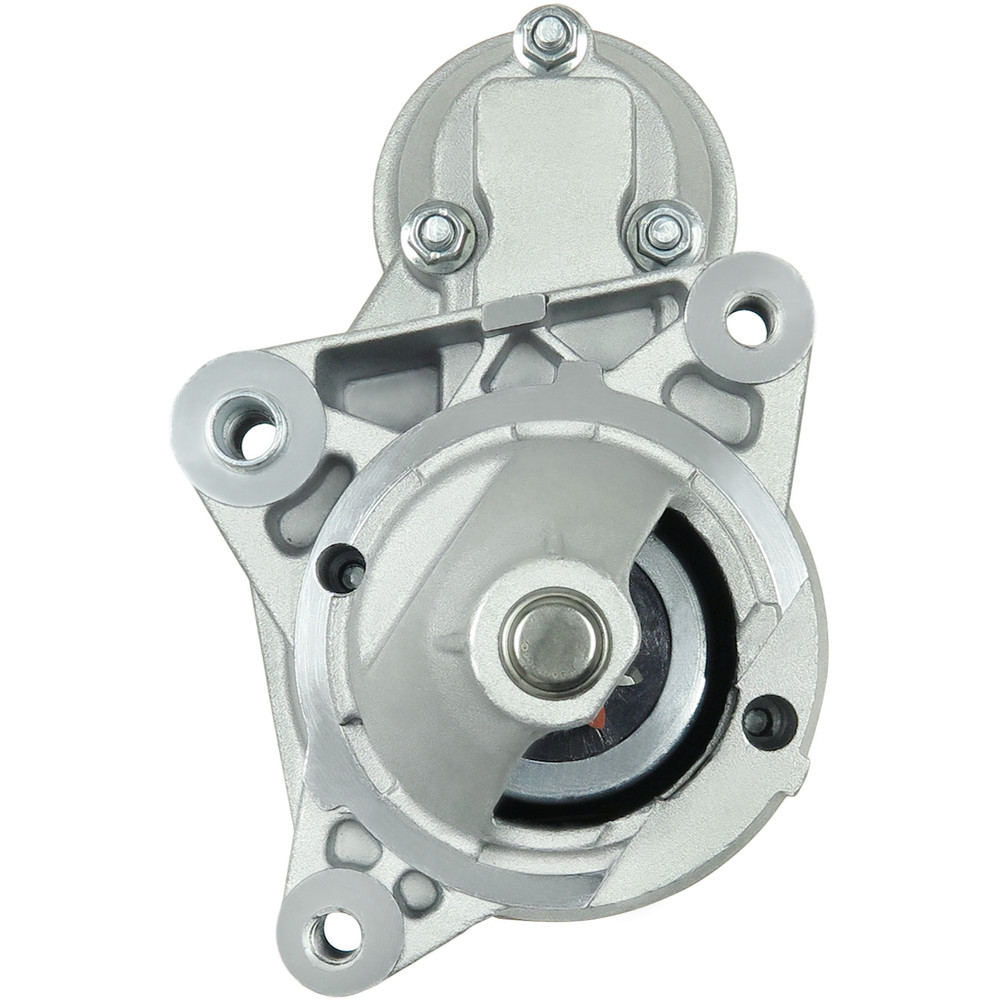

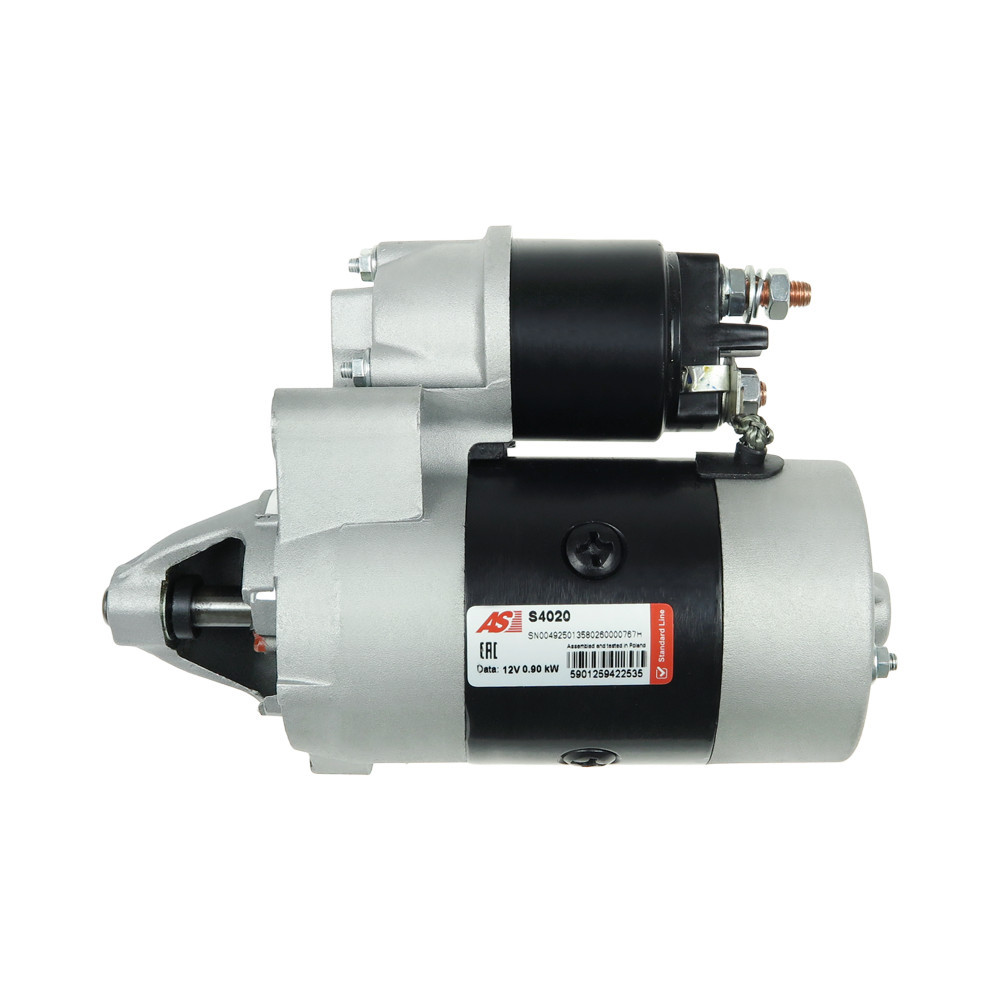

Starter Fiat TEMPRA (159_)

Reference:
- 63103002 (MAGNETI MARELLI)

Application
Data sheet

FIAT TEMPRA (159_)

Model

Engine

Displacement and power

From To

TEMPRA (159_) 1.4 i.e. (159.AA)

159A2.000

CCM:

1372

HP:

KW:

03.1991 => 08.1996

TEMPRA (159_) 1.4 i.e. (159.AC, 159.AX)

159A2.000

CCM:

1372

HP:

KW:

04.1990 => 08.1996

TEMPRA (159_) 1.4 i.e. (159.AC, 159.AX)

160A1.046

CCM:

1372

HP:

KW:

04.1990 => 08.1996

TEMPRA (159_) 1.4 i.e. (159.AC, 159.AX)

836A4.000

CCM:

1372

HP:

KW:

04.1990 => 08.1996

TEMPRA (159_) 1.6 (159.AD)

159A3.000

CCM:

1581

HP:

KW:

03.1990 => 04.1994

TEMPRA (159_) 1.6 (159.AD)

159B9.000

CCM:

1581

HP:

KW:

03.1990 => 04.1994

TEMPRA (159_) 1.6 (159AS, 159AT)

159A3.048

CCM:

1581

HP:

KW:

04.1990 => 07.1996

TEMPRA (159_) 1.6 i.e. (159.AE)

159A3.046

CCM:

1581

HP:

KW:

06.1990 => 07.1992

TEMPRA (159_) 1.6 i.e. (159.AJ)

159B9.000

CCM:

1581

HP:

KW:

06.1994 => 08.1996

TEMPRA (159_) 1.6 i.e. (159.AS, 159.AT)

159A3.048

CCM:

1581

HP:

KW:

06.1992 => 08.1996

TEMPRA (159_) 1.6 i.e. (159.AS, 159.AT)

835C1.000

CCM:

1581

HP:

KW:

06.1992 => 08.1996

Genuine part : no
Type of part : Starter
Motorization : TEMPRA (159_)
Can be mounted on : Fiat
Years : 1991, 1992, 1993, 1994, 1995, 1996

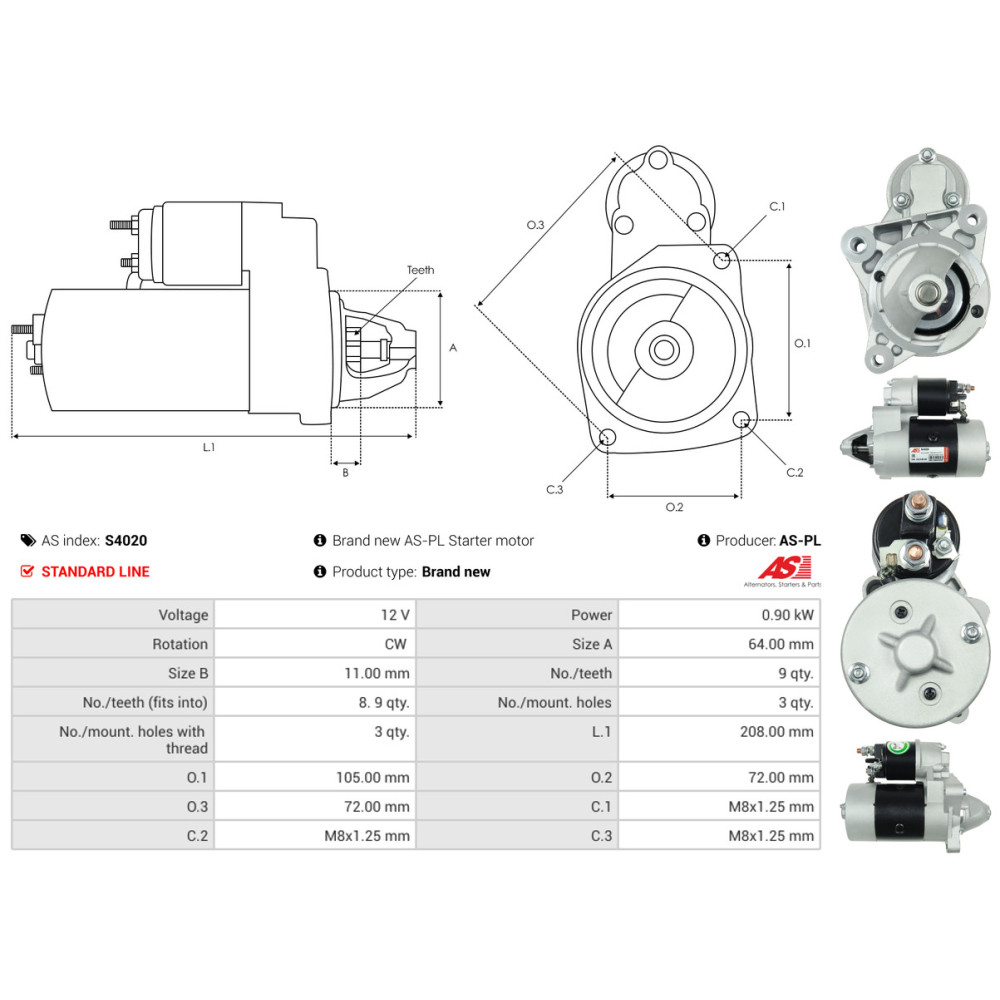

Mounting holes : 3
Number of teeth : 9
Rotation : CW (clockwise)
Voltage : 12
Number of fitted teeth : 8, 9
No./mount. holes with thread : 3
C.1 [ mm ] : M8x1.25
C.2 [ mm ] : M8x1.25
C.3 [ mm ] : M8x1.25
L.1 [ mm ] : 208.00
O.1 [ mm ] : 105.00
O.2 [ mm ] : 72.00
O.3 [ mm ] : 72.00
Taille A [ mm ] : 64.00
Taille B [ mm ] : 11.00
Type : TEMPRA (159_) 1.4 i.e. (159.AA), TEMPRA (159_) 1.4 i.e. (159.AC, 159.AX), TEMPRA (159_) 1.6 (159.AD), TEMPRA (159_) 1.6 (159AS, 159AT), TEMPRA (159_) 1.6 i.e. (159.AE), TEMPRA (159_) 1.6 i.e. (159.AJ), TEMPRA (159_) 1.6 i.e. (159.AS, 159.AT)
Engine code : 159A2.000, 159A3.000, 159A3.046, 159A3.048, 159B9.000, 160A1.046, 835C1.000, 836A4.000
