Home>Starter>Starter Mazda 323 F IV (BG)
MAZDA 323 F IV (BG)
Model
Engine
Displacement and power
From To
323 F IV (BG) 1.6 (BG6S, BG6P)
B67J
CCM:
1597
HP:
90
KW:
66
04.1991 => 04.1994
323 F IV (BG) 1.6 (BG6S, BG6P)
B67K
CCM:
1597
HP:
90
KW:
66
04.1991 => 04.1994
323 F IV (BG) 1.6 (BG6S, BG6P)
B67L
CCM:
1597
HP:
90
KW:
66
04.1991 => 04.1994
323 F IV (BG) 1.6 (BG6S, BG6P)
B6E
CCM:
1597
HP:
84
KW:
62
09.1989 => 06.1991
323 F IV (BG) 1.6 16V (BG6S, BG6P)
B6
CCM:
1597
HP:
88
KW:
65
03.1991 => 10.1994
323 F IV (BG) 1.8 16V (BG8S, BG8P)
BP
CCM:
1840
HP:
103
KW:
76
08.1989 => 07.1994
323 F IV (BG) 1.8 16V (BG8S, BG8P)
BP31
CCM:
1840
HP:
140
KW:
103
09.1989 => 03.1993
323 F IV (BG) 1.8 16V GT (BG8S, BG8P)
BP(DOHC)
CCM:
1840
HP:
128
KW:
94
08.1989 => 07.1994
323 F IV (BG) 1.8 4WD (BG8R)
BPC
CCM:
1840
HP:
103
KW:
76
01.1991 => 04.1994
  • Genuine part : no

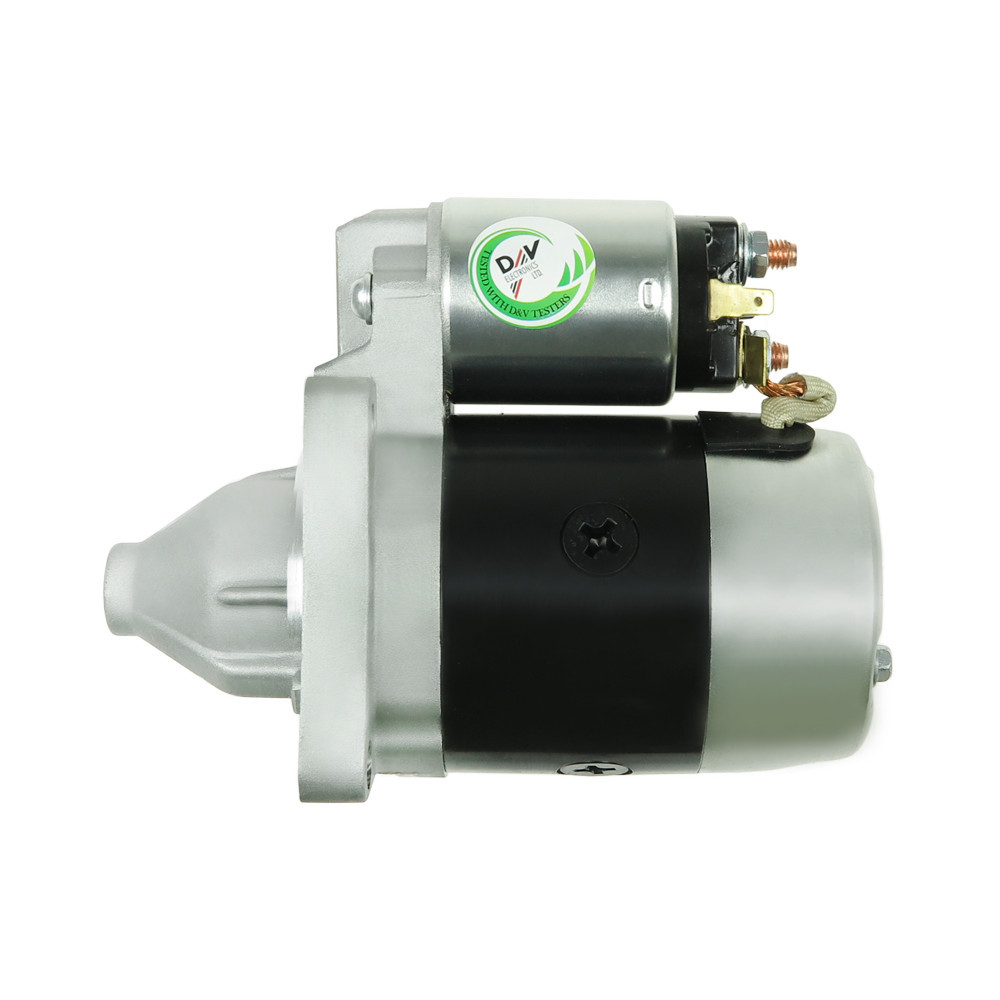

  • Type of part : Starter
  • Motorization : 323 F IV (BG)
  • Can be mounted on : Mazda
  • Years : 1991, 1992, 1993, 1994
  • Mounting holes : 3
  • Number of teeth : 8
  • Rotation : CW (clockwise)
  • Voltage : 12
  • Number of fitted teeth : 8
  • No./mount. holes with thread : 2

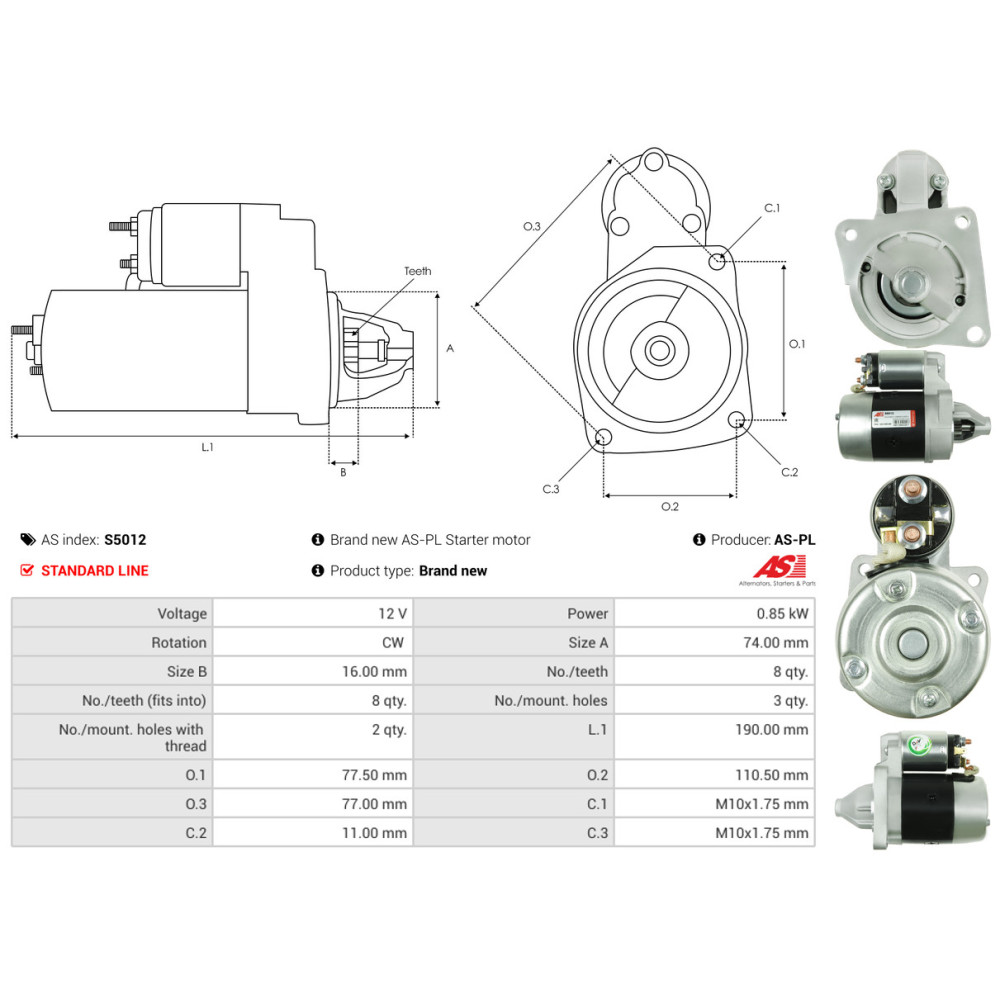

  • C.1 [ mm ] : M10x1.75
  • C.2 [ mm ] : 11.00
  • C.3 [ mm ] : M10x1.75
  • L.1 [ mm ] : 190.00
  • O.1 [ mm ] : 77.50
  • O.2 [ mm ] : 110.50
  • O.3 [ mm ] : 77.00
  • Taille A [ mm ] : 74.00
  • Taille B [ mm ] : 16.00
  • Type : 323 F IV (BG) 1.6 (BG6S, BG6P), 323 F IV (BG) 1.6 16V (BG6S, BG6P), 323 F IV (BG) 1.8 16V (BG8S, BG8P), 323 F IV (BG) 1.8 16V GT (BG8S, BG8P), 323 F IV (BG) 1.8 4WD (BG8R)
  • Engine code : B6, B67J, B67K, B67L, B6E, BP, BP(DOHC), BP31, BPC
