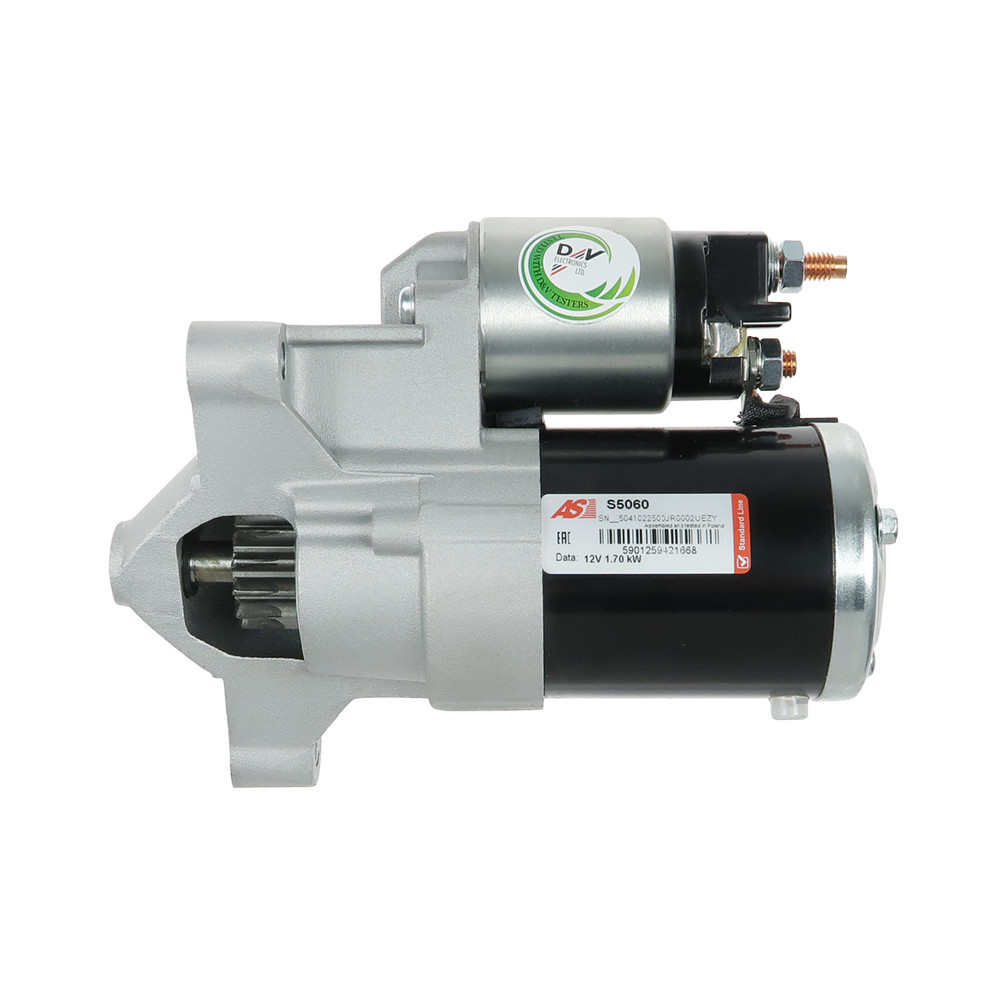

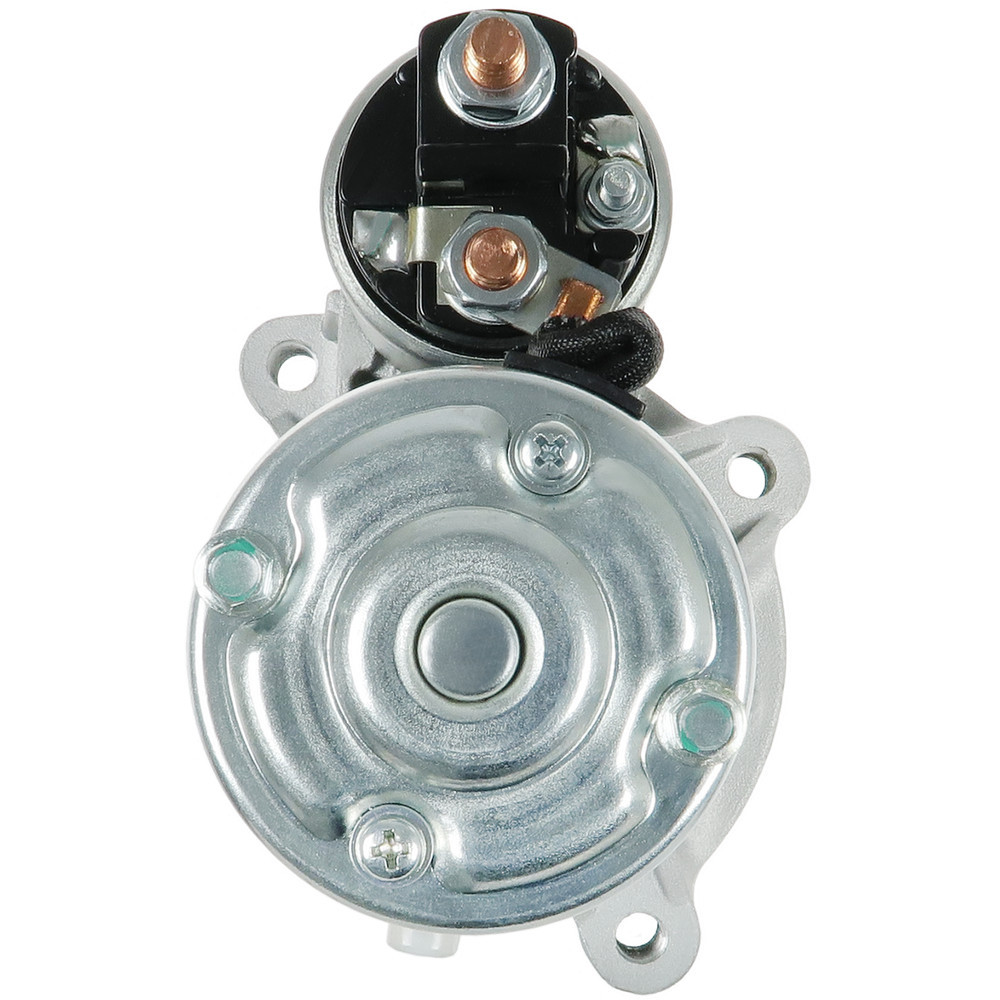

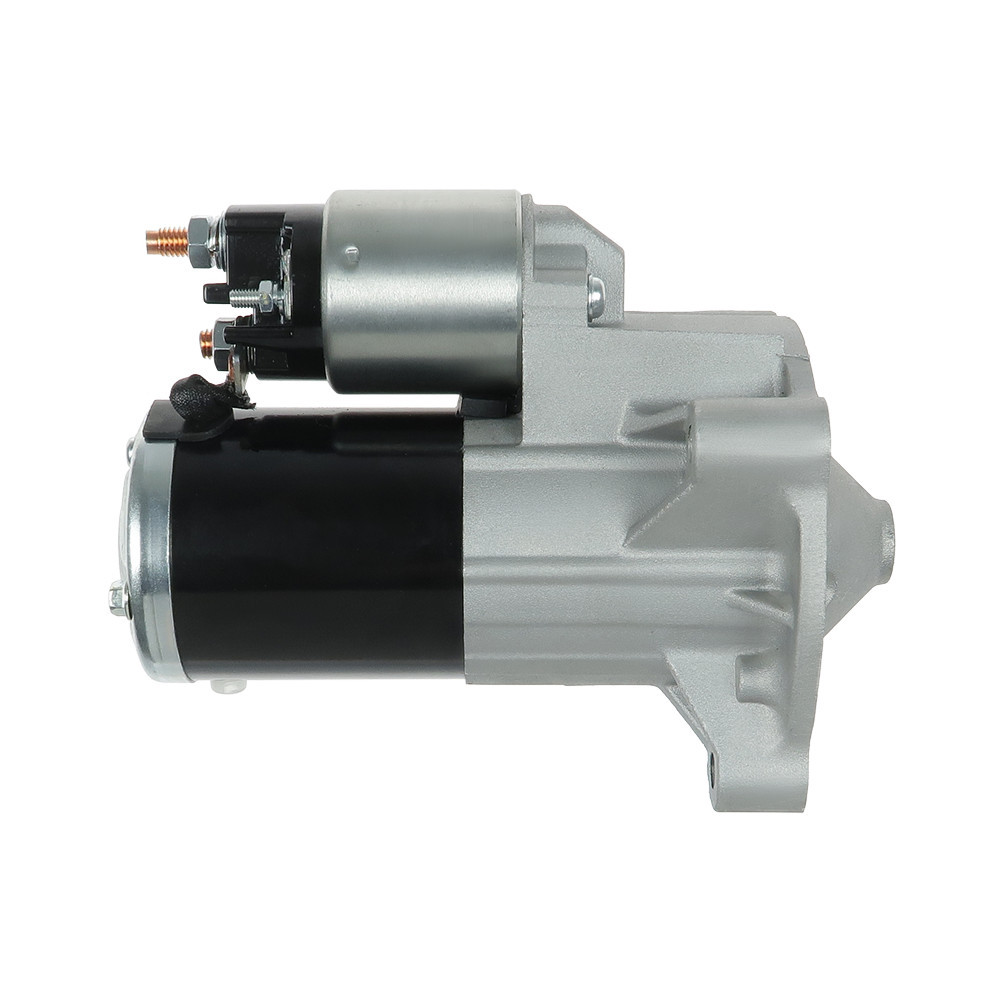

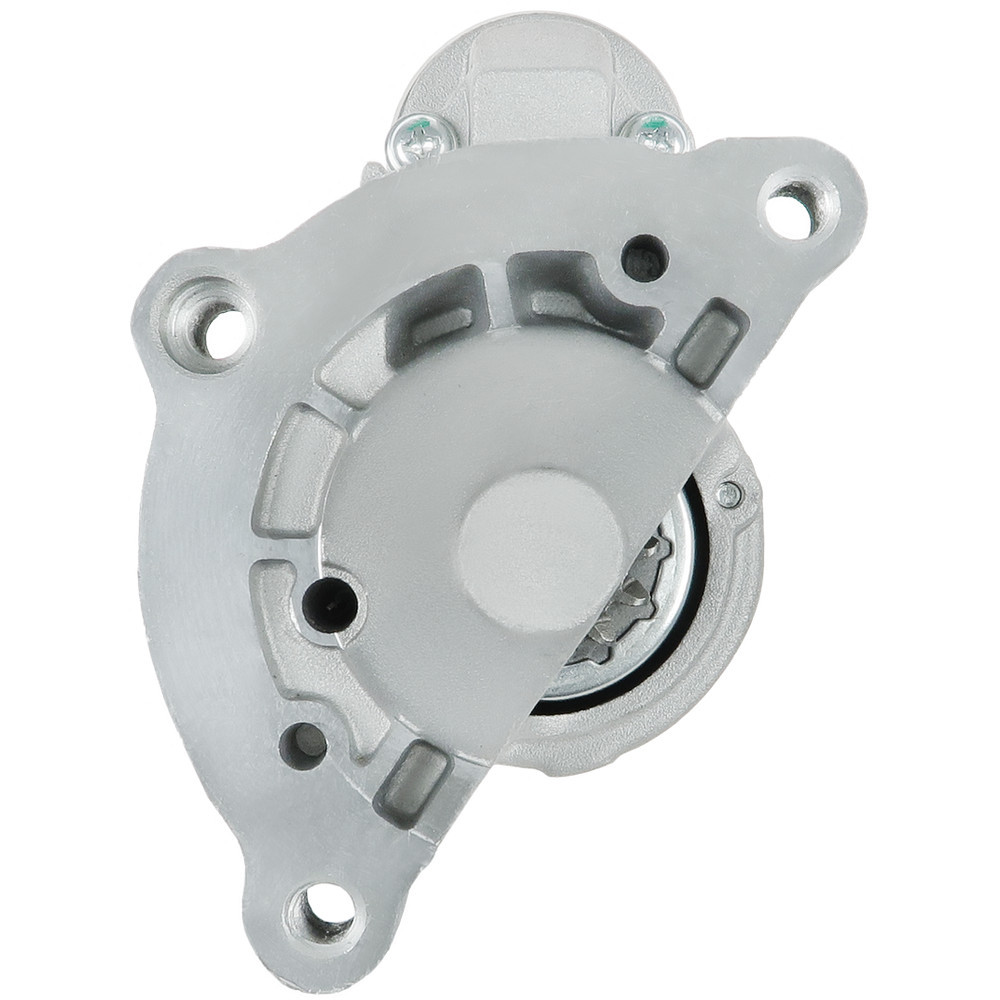

Starter Peugeot EXPERT Van (VF3A_, VF3U_, VF3X_)

Reference:
- M1T80381 (MITSUBISHI)

Application
Data sheet

PEUGEOT EXPERT Van (VF3A_, VF3U_, VF3X_)

Model

Engine

Displacement and power

From To

EXPERT Van (VF3A_, VF3U_, VF3X_) 2.0 HDi 120

RHK(DW10UTED4)

CCM:

1997

HP:

120

KW:

01.2007 =>

EXPERT Van (VF3A_, VF3U_, VF3X_) 2.0 HDi 120 4x4

RHK(DW10UTED4)

CCM:

1997

HP:

120

KW:

01.2010 =>

EXPERT Van (VF3A_, VF3U_, VF3X_) 2.0 HDi 130

AHZ(DW10CD)

CCM:

1997

HP:

128

KW:

03.2011 =>

EXPERT Van (VF3A_, VF3U_, VF3X_) 2.0 HDi 130 4x4

AHZ(DW10CD)

CCM:

1997

HP:

128

KW:

01.2012 => 03.2016

EXPERT Van (VF3A_, VF3U_, VF3X_) 2.0 HDi 140

RHR(DW10BTED4)

CCM:

1997

HP:

136

KW:

100

01.2007 =>

EXPERT Van (VF3A_, VF3U_, VF3X_) 2.0 HDi 165

RHH(DW10CTED4)

CCM:

1997

HP:

163

KW:

120

09.2009 =>

Type of part : Starter
Motorization : EXPERT Van (VF3A_, VF3U_, VF3X_)
Can be mounted on : Peugeot
Mounting holes : 3
Number of teeth : 13
Rotation : CW (clockwise)
Voltage : 12
From : 2007
Number of fitted teeth : 10, 11, 12, 13
No./mount. holes with thread : 3

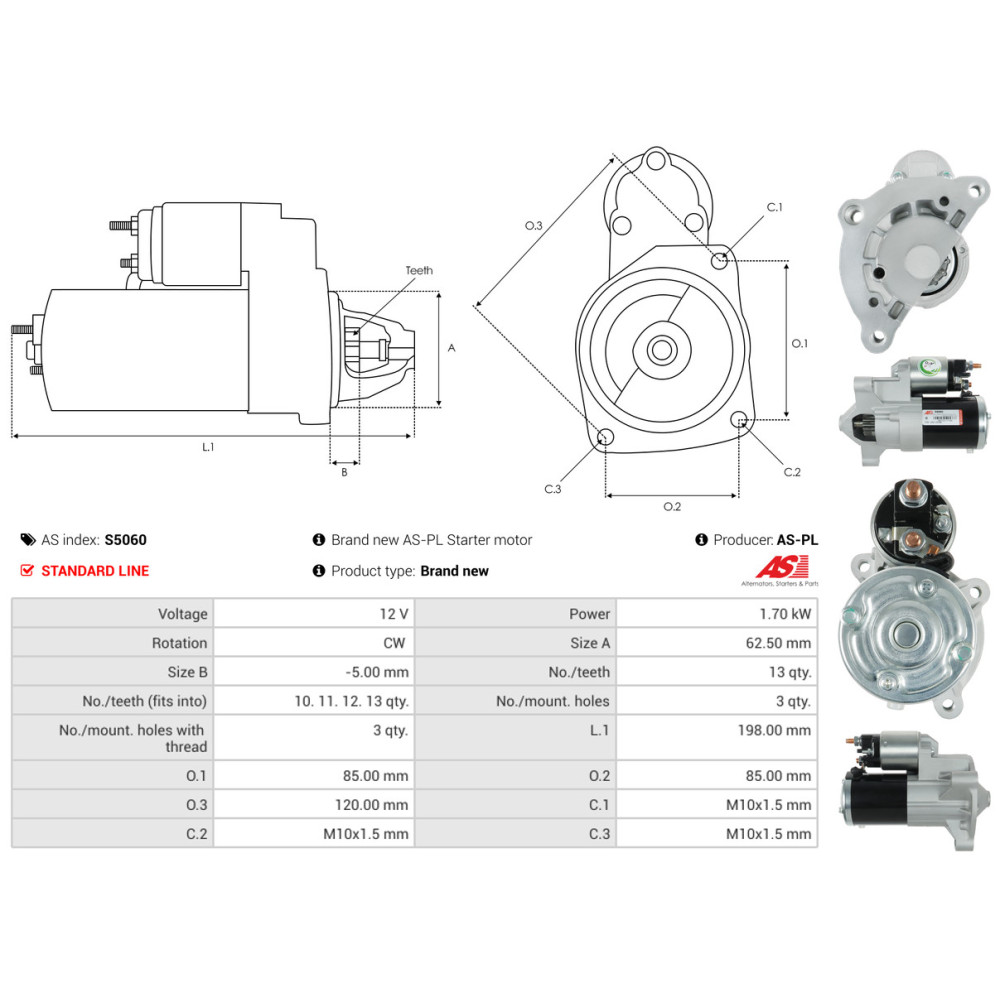

C.1 [ mm ] : M10x1.5
C.2 [ mm ] : M10x1.5
C.3 [ mm ] : M10x1.5
L.1 [ mm ] : 198.00
O.1 [ mm ] : 85.00
O.2 [ mm ] : 85.00
O.3 [ mm ] : 120.00
Taille A [ mm ] : 62.50
Taille B [ mm ] : -5.00
Type : EXPERT Van (VF3A_, VF3U_, VF3X_) 2.0 HDi 120, EXPERT Van (VF3A_, VF3U_, VF3X_) 2.0 HDi 120 4x4, EXPERT Van (VF3A_, VF3U_, VF3X_) 2.0 HDi 130, EXPERT Van (VF3A_, VF3U_, VF3X_) 2.0 HDi 130 4x4, EXPERT Van (VF3A_, VF3U_, VF3X_) 2.0 HDi 140, EXPERT Van (VF3A_, VF3U_, VF3X_) 2.0 HDi 165
Engine code : AHZ(DW10CD), RHH(DW10CTED4), RHK(DW10UTED4), RHR(DW10BTED4)
Genuine part : no
