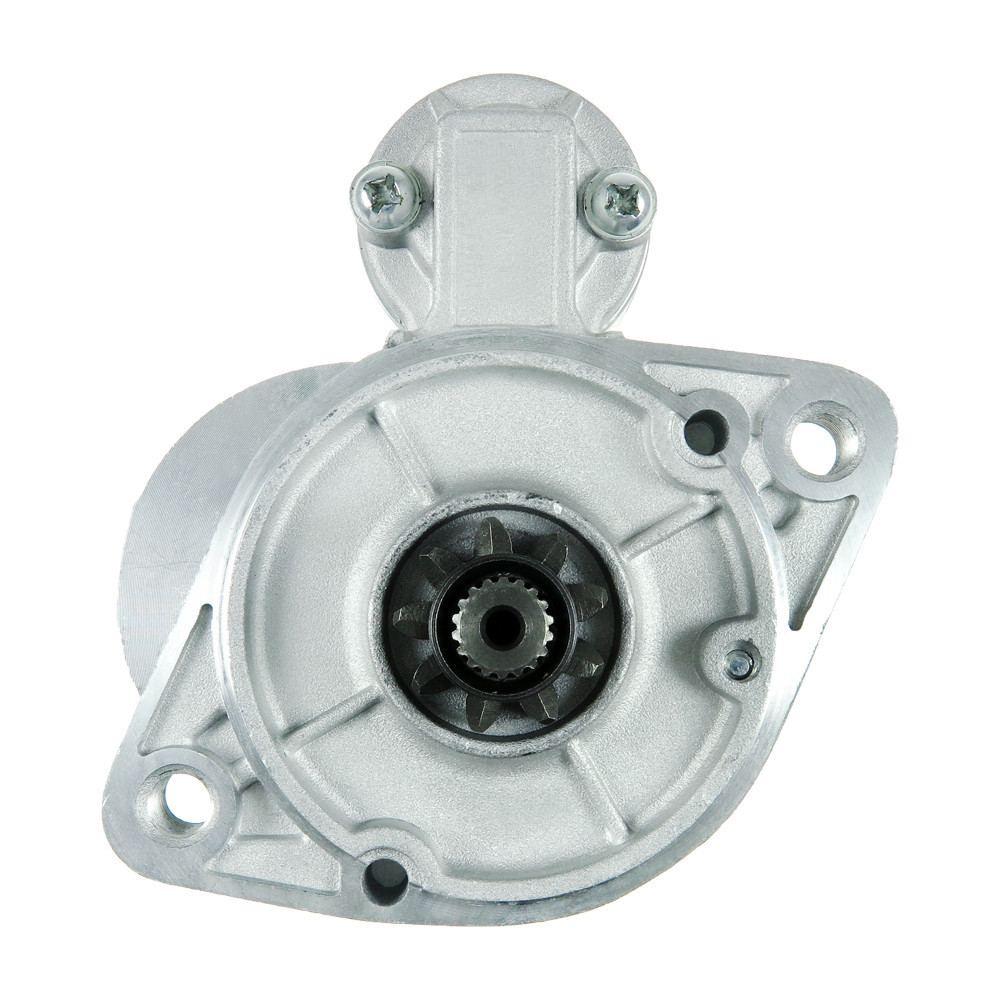

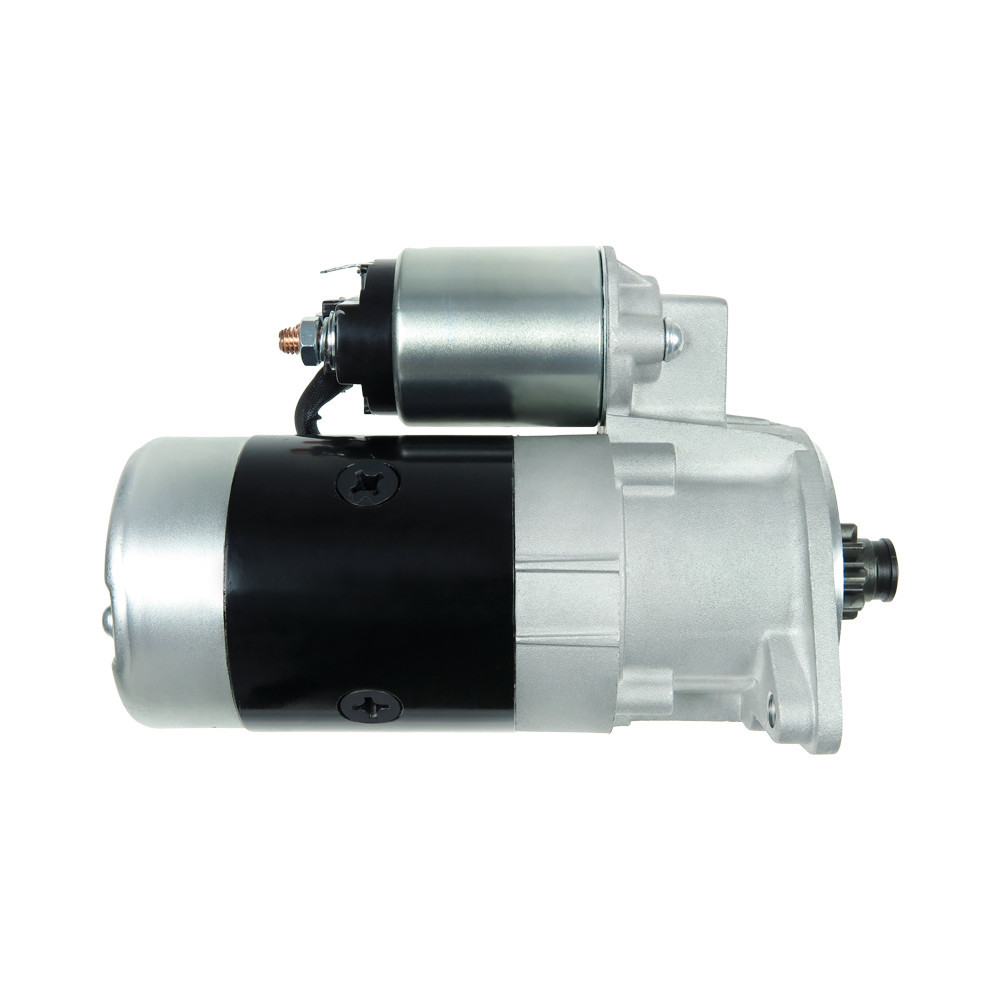

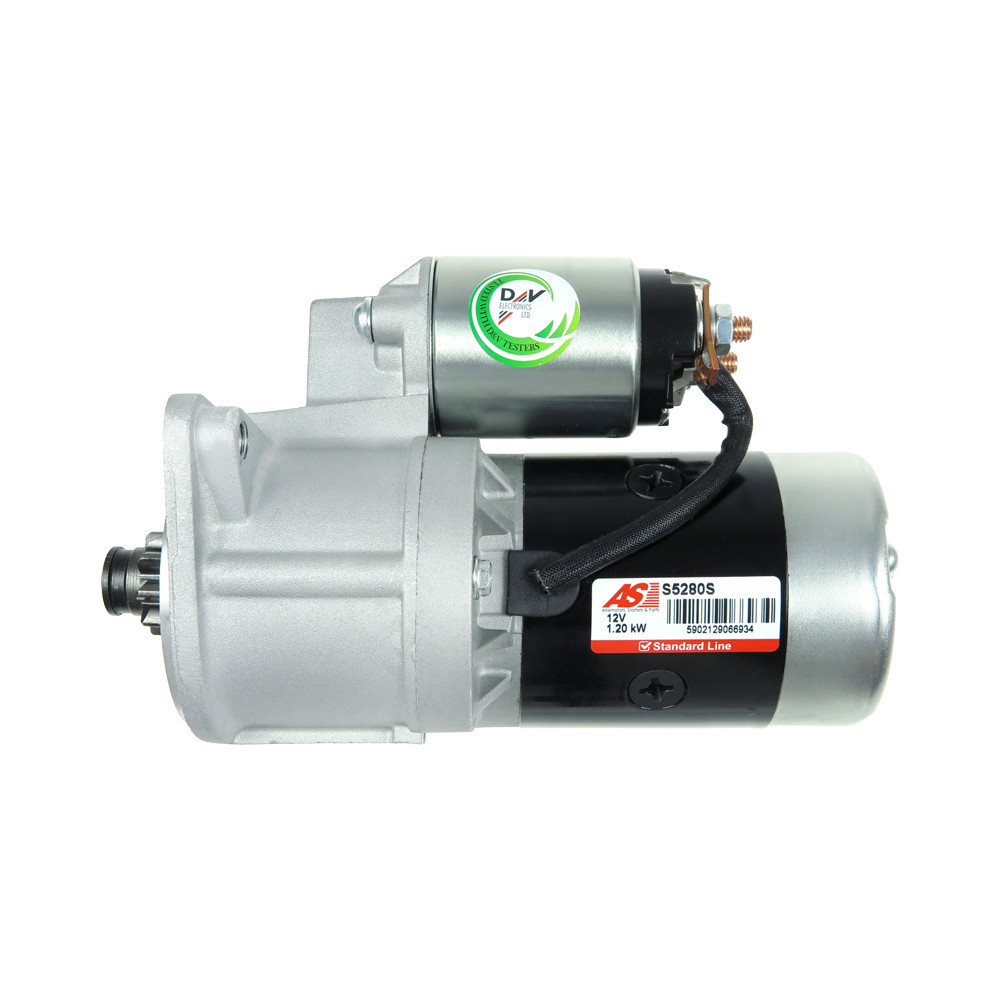

Starter Mitsubishi LANCER III Station Wagon (C1_V, C3_V)

MITSUBISHI LANCER III Station Wagon (C1_V, C3_V)

Model

Engine

Displacement and power

From To

LANCER III Station Wagon (C1_V, C3_V) 1.5 (C12V)

4G15(8V)

CCM:

1468

HP:

KW:

09.1988 => 12.1990

LANCER III Station Wagon (C1_V, C3_V) 1.5 12V (C12V)

4G15(12V)

CCM:

1468

HP:

KW:

09.1990 => 12.1991

LANCER III Station Wagon (C1_V, C3_V) 1.8 4WD (C37V)

4G37

CCM:

1755

HP:

KW:

03.1989 => 12.1990

LANCER III Station Wagon (C1_V, C3_V) 1.8 4WD (C37V)

G37B

CCM:

1755

HP:

KW:

01.1987 => 08.1989

LANCER III Station Wagon (C1_V, C3_V) 1.8 D (C14V)

4D65

CCM:

1795

HP:

KW:

09.1985 => 09.1986

Genuine part : no
Type of part : Starter
Motorization : LANCER III Station Wagon (C1_V, C3_V)
Can be mounted on : Mitsubishi
Years : 1988, 1989, 1990
Mounting holes : 2
Number of teeth : 9
Rotation : CW (clockwise)
Voltage : 12
No./mount. holes with thread : 2

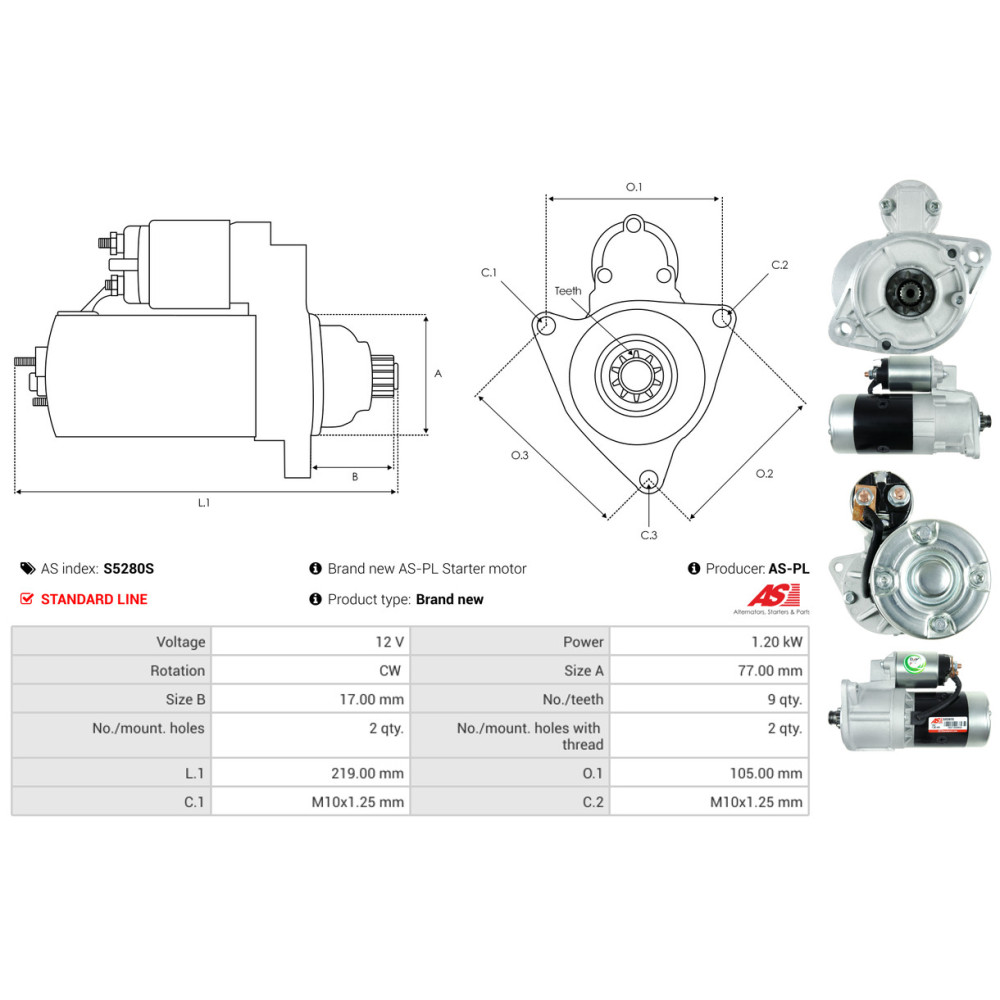

C.1 [ mm ] : M10x1.25
C.2 [ mm ] : M10x1.25
L.1 [ mm ] : 219.00
O.1 [ mm ] : 105.00
Taille A [ mm ] : 77.00
Taille B [ mm ] : 17.00
Type : LANCER III Station Wagon (C1_V, C3_V) 1.5 (C12V), LANCER III Station Wagon (C1_V, C3_V) 1.5 12V (C12, LANCER III Station Wagon (C1_V, C3_V) 1.8 4WD (C37, LANCER III Station Wagon (C1_V, C3_V) 1.8 D (C14V)
Engine code : 4D65, 4G15(12V), 4G15(8V), 4G37, G37B
