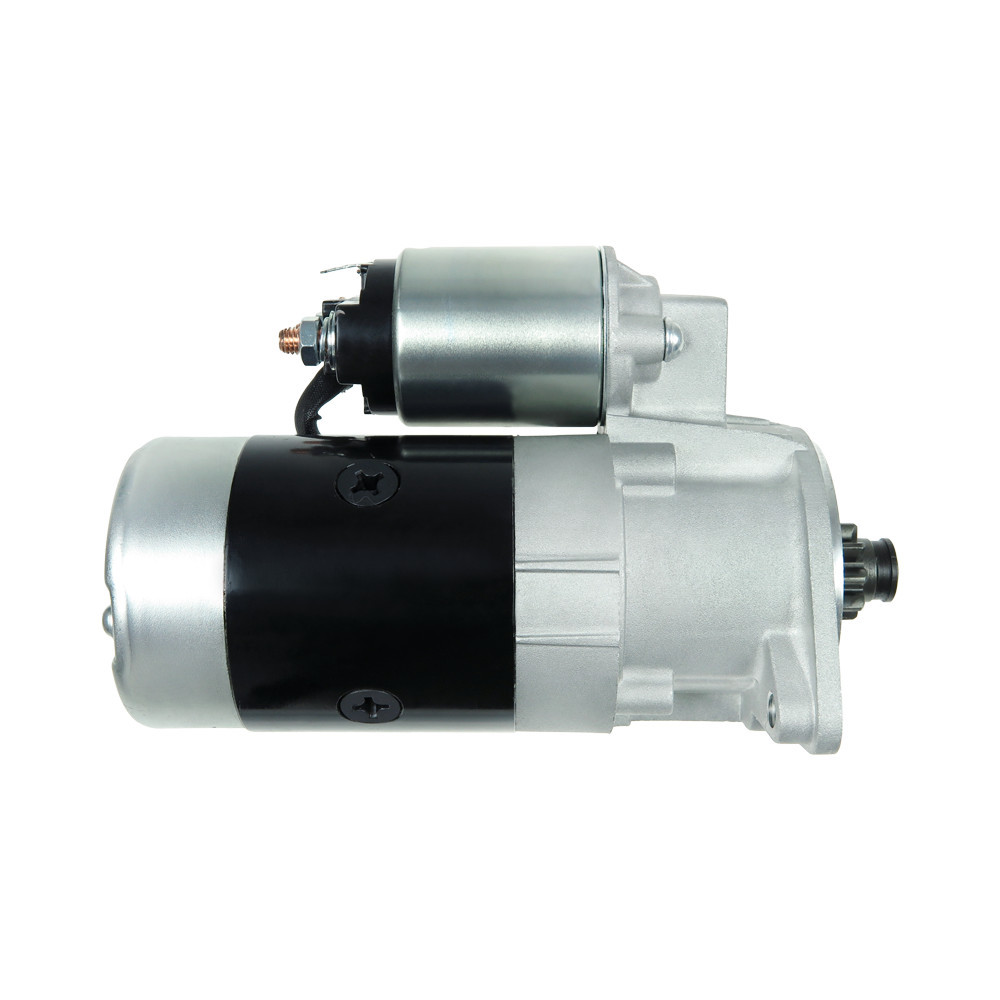

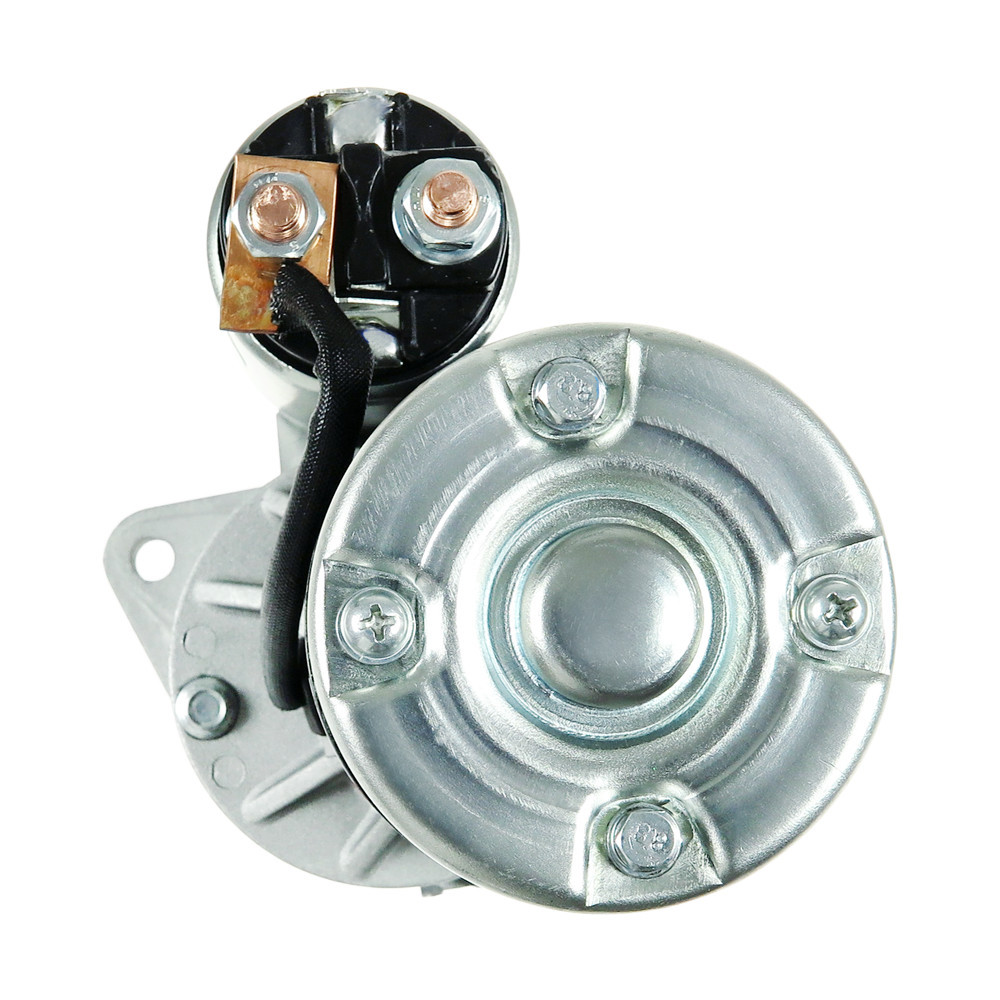

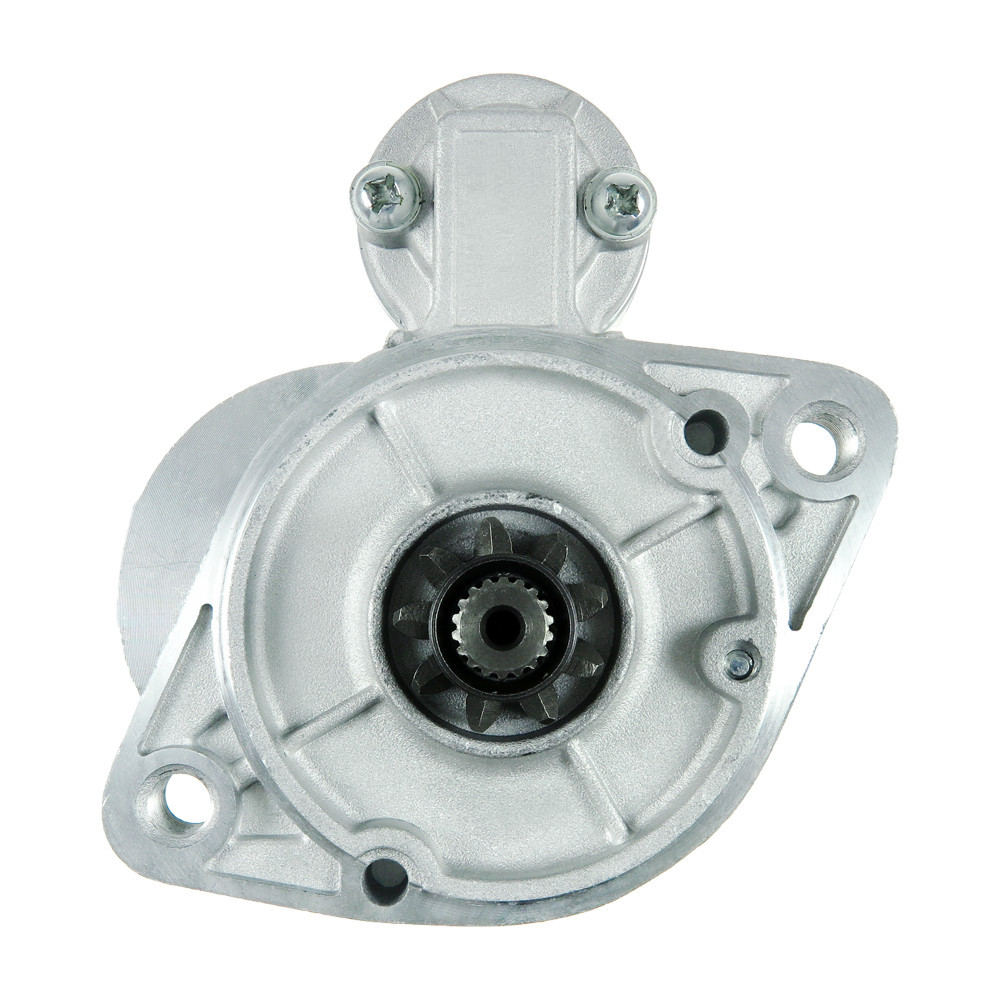

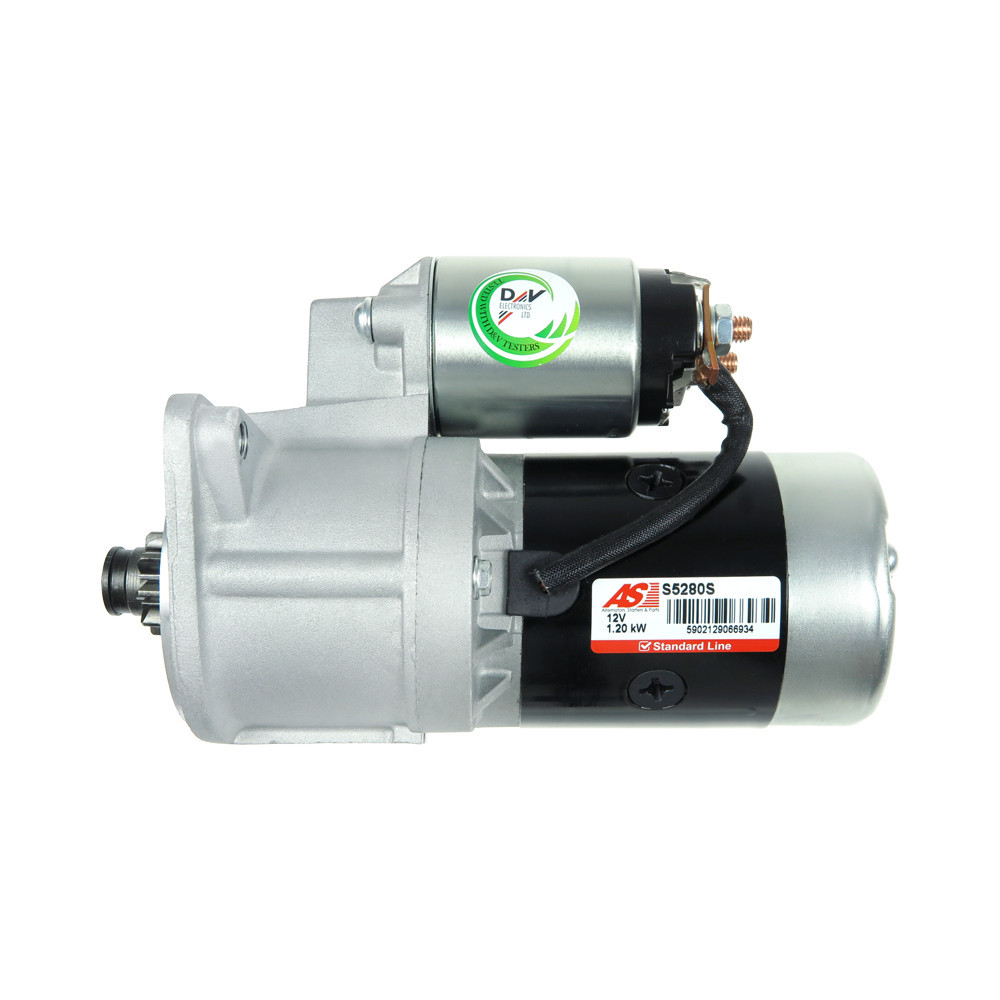

Starter Mitsubishi LANCER IV (C6_A, C7_A)

Reference:
- M2T53085 (MITSUBISHI)

Application
Data sheet

MITSUBISHI LANCER IV (C6_A, C7_A)

Model

Engine

Displacement and power

From To

LANCER IV (C6_A, C7_A) 1.3 (C61A)

4G13(8V)

CCM:

1299

HP:

KW:

04.1988 => 05.1992

LANCER IV (C6_A, C7_A) 1.3 (C61A)

G13B

CCM:

1299

HP:

KW:

08.1988 => 05.1992

LANCER IV (C6_A, C7_A) 1.3 12V (C61A)

4G13(12V)

CCM:

1299

HP:

KW:

07.1990 => 06.1992

LANCER IV (C6_A, C7_A) 1.5 (C62A)

4G15(12V)

CCM:

1468

HP:

KW:

04.1988 => 05.1992

LANCER IV (C6_A, C7_A) 1.5 12V (C62A)

4G15(12V)

CCM:

1468

HP:

KW:

06.1990 => 05.1992

LANCER IV (C6_A, C7_A) 1.8 GLX Diesel (C64A)

4D65

CCM:

1795

HP:

KW:

04.1988 => 05.1992

Genuine part : no
Type of part : Starter
Motorization : LANCER IV (C6_A, C7_A)
Can be mounted on : Mitsubishi
Years : 1988, 1989, 1990, 1991, 1992

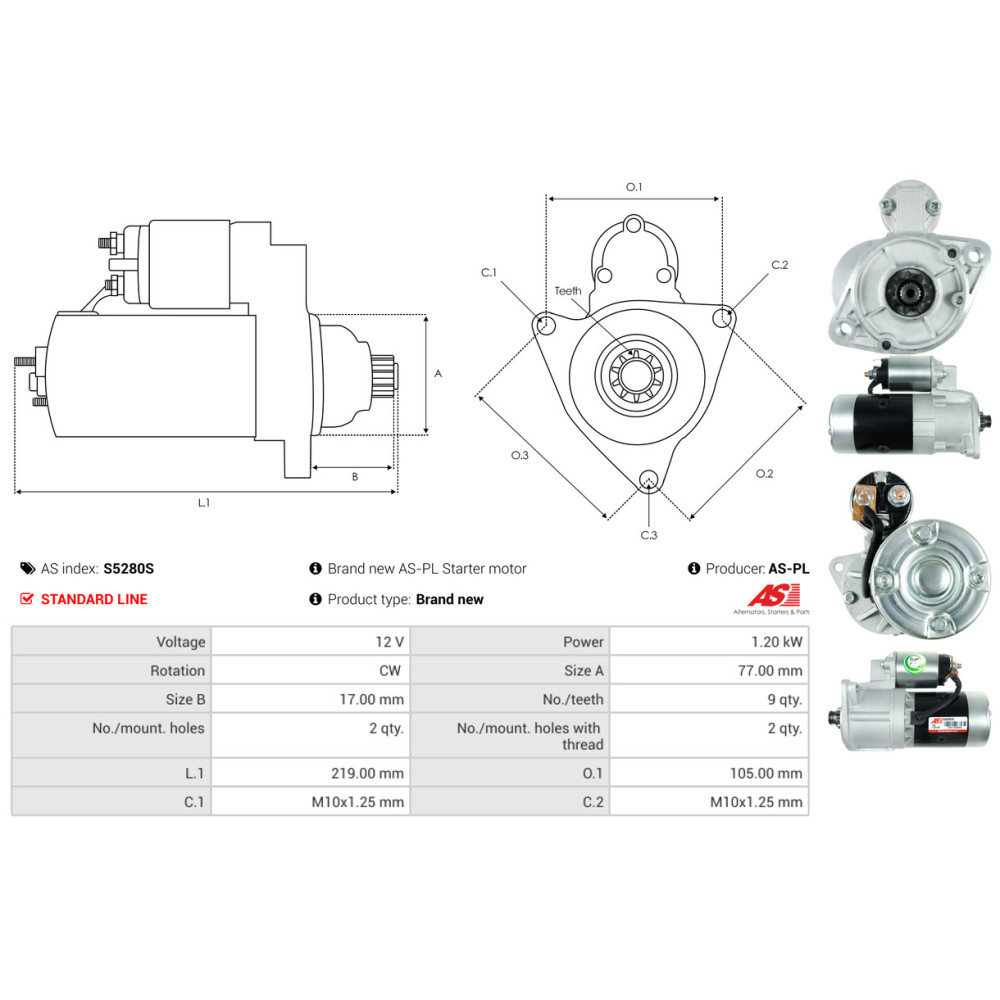

Mounting holes : 2
Number of teeth : 9
Rotation : CW (clockwise)
Voltage : 12
No./mount. holes with thread : 2
C.1 [ mm ] : M10x1.25
C.2 [ mm ] : M10x1.25
L.1 [ mm ] : 219.00
O.1 [ mm ] : 105.00
Taille A [ mm ] : 77.00
Taille B [ mm ] : 17.00
Type : LANCER IV (C6_A, C7_A) 1.3 (C61A), LANCER IV (C6_A, C7_A) 1.3 12V (C61A), LANCER IV (C6_A, C7_A) 1.5 (C62A), LANCER IV (C6_A, C7_A) 1.5 12V (C62A), LANCER IV (C6_A, C7_A) 1.8 GLX Diesel (C64A)
Engine code : 4D65, 4G13(12V), 4G13(8V), 4G15(12V), G13B
