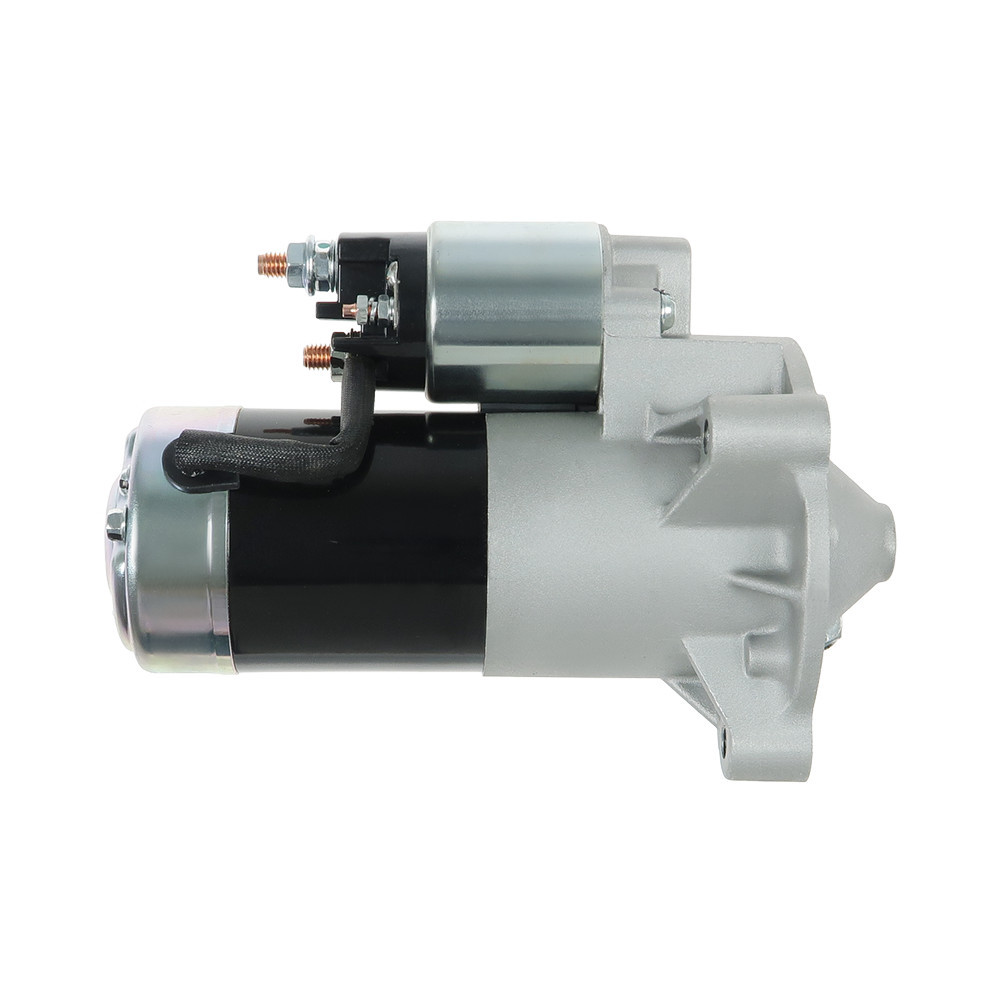

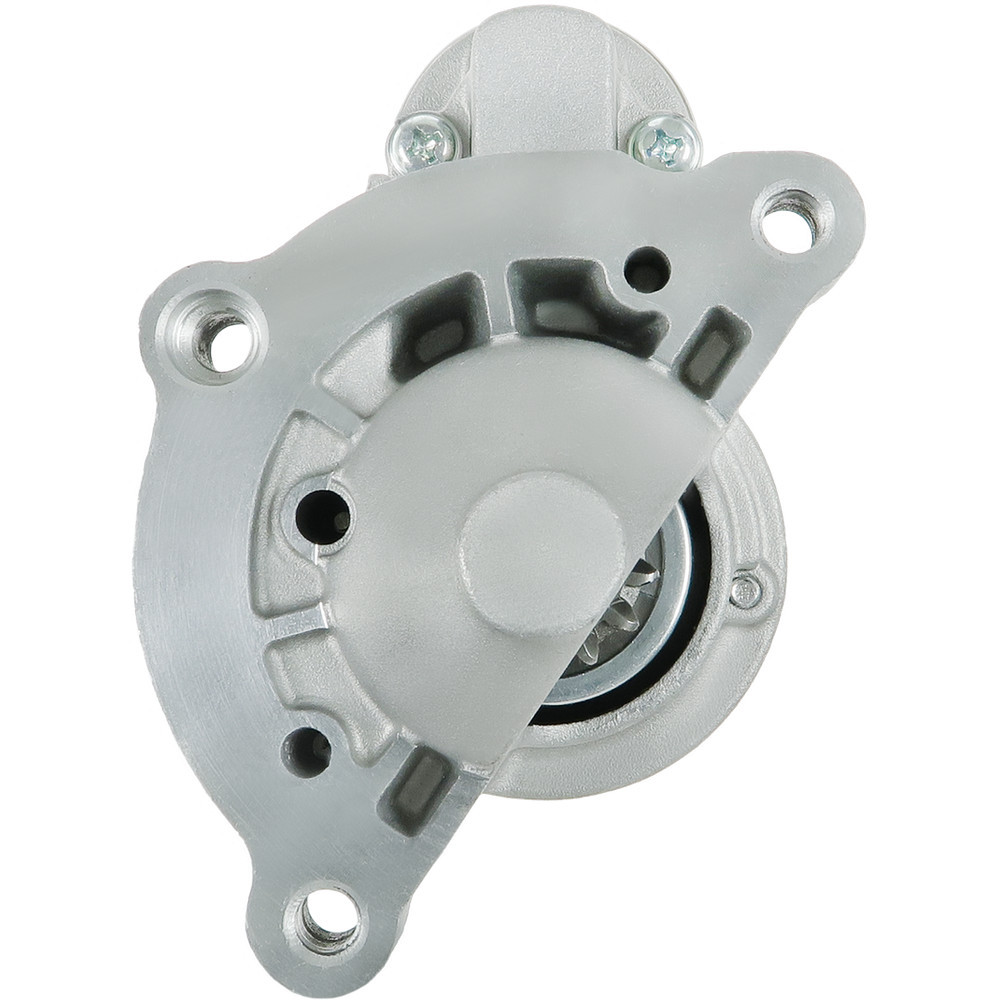

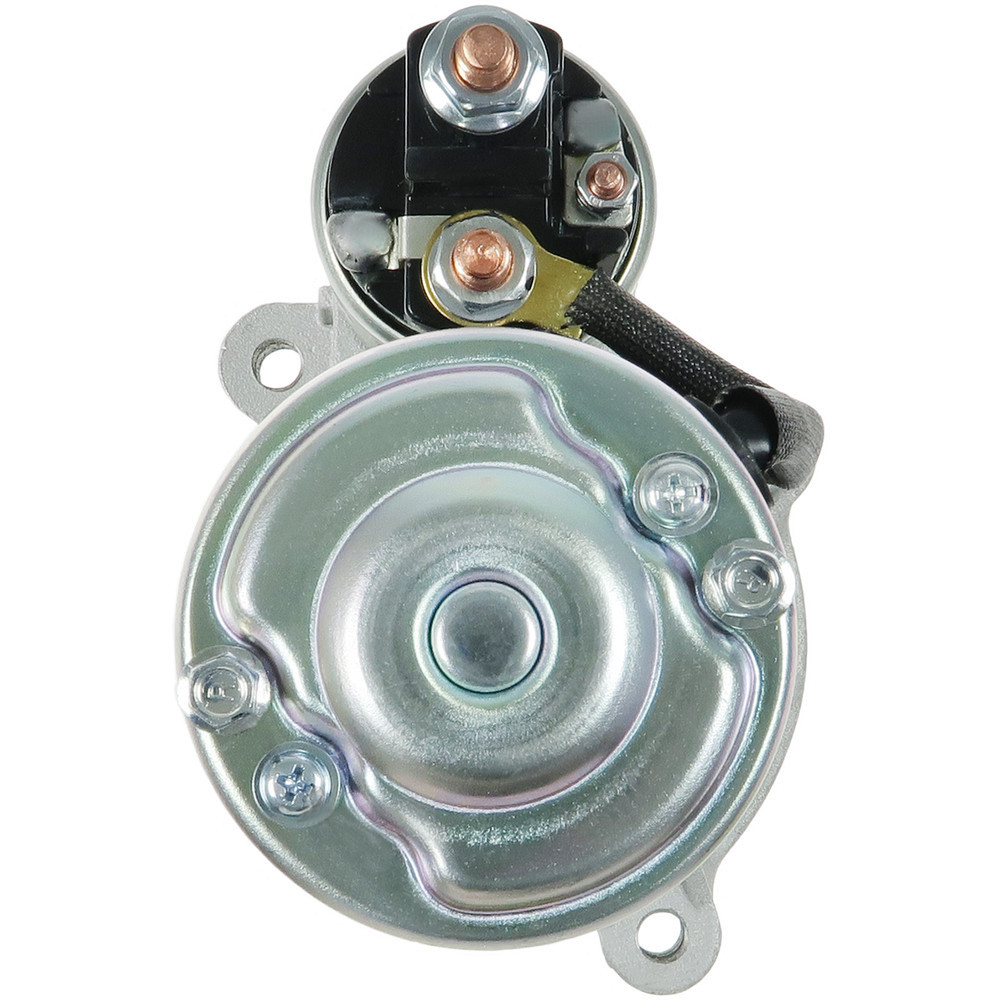

Starter Fiat SCUDO Van (270_, 272_)

Reference:
- M001T80481 (MITSUBISHI)

This product is no longer in stock

Application
Data sheet

FIAT SCUDO Van (270_, 272_)

Model

Engine

Displacement and power

From To

SCUDO Van (270_, 272_) 2.0 D Multijet

RH02

CCM:

1997

HP:

128

KW:

05.2011 => 03.2016

SCUDO Van (270_, 272_) 2.0 D Multijet

RHG

CCM:

1997

HP:

120

KW:

01.2007 => 03.2016

SCUDO Van (270_, 272_) 2.0 D Multijet

RHH

CCM:

1997

HP:

163

KW:

120

07.2010 => 03.2016

SCUDO Van (270_, 272_) 2.0 D Multijet

RHK

CCM:

1997

HP:

120

KW:

01.2007 => 03.2016

SCUDO Van (270_, 272_) 2.0 D Multijet

RHR

CCM:

1997

HP:

136

KW:

100

01.2007 => 03.2016

SCUDO Van (270_, 272_) 2.0 D Multijet 4x4

RH02

CCM:

1997

HP:

128

KW:

05.2011 => 03.2016

SCUDO Van (270_, 272_) 2.0 D Multijet 4x4

RHG

CCM:

1997

HP:

120

KW:

01.2007 => 03.2016

SCUDO Van (270_, 272_) 2.0 D Multijet 4x4

RHK

CCM:

1997

HP:

120

KW:

01.2007 => 03.2016

SCUDO Van (270_, 272_) 2.0 D Multijet 4x4

RHR

CCM:

1997

HP:

136

KW:

100

01.2007 => 03.2016

Genuine part : no
Type of part : Starter
Motorization : SCUDO Van (270_, 272_)
Can be mounted on : Fiat
Mounting holes : 3
Number of teeth : 13
Rotation : CW (clockwise)
Voltage : 12
From : 2011, 2012, 2013, 2014, 2015, 2016
No./mount. holes with thread : 3
C.1 [ mm ] : M10x1.5
C.2 [ mm ] : M10x1.5
C.3 [ mm ] : M10x1.5
L.1 [ mm ] : 220.00
O.1 [ mm ] : 85.00
O.2 [ mm ] : 85.00
O.3 [ mm ] : 120.00
Taille A [ mm ] : 64.00
Taille B [ mm ] : -5.00
Type : SCUDO Van (270_, 272_) 2.0 D Multijet, SCUDO Van (270_, 272_) 2.0 D Multijet 4x4
Engine code : RH02, RHG, RHH, RHK, RHR
