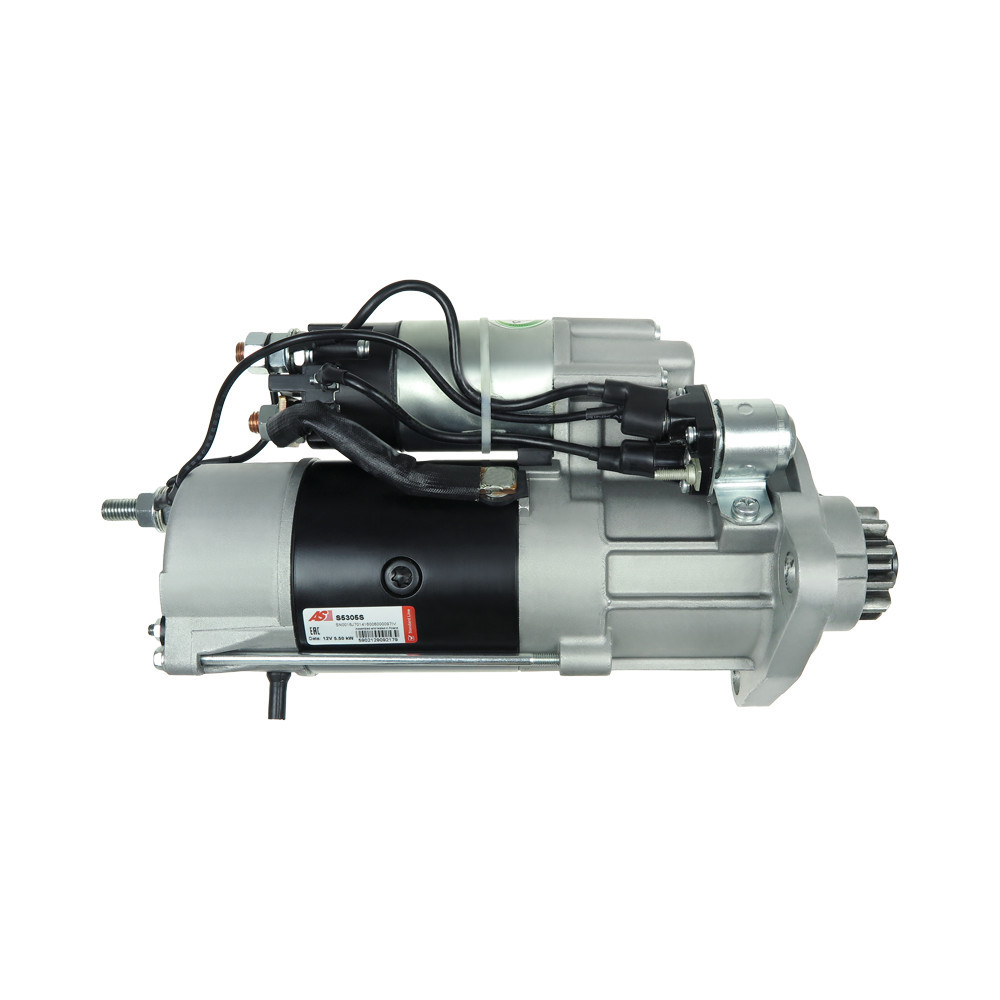

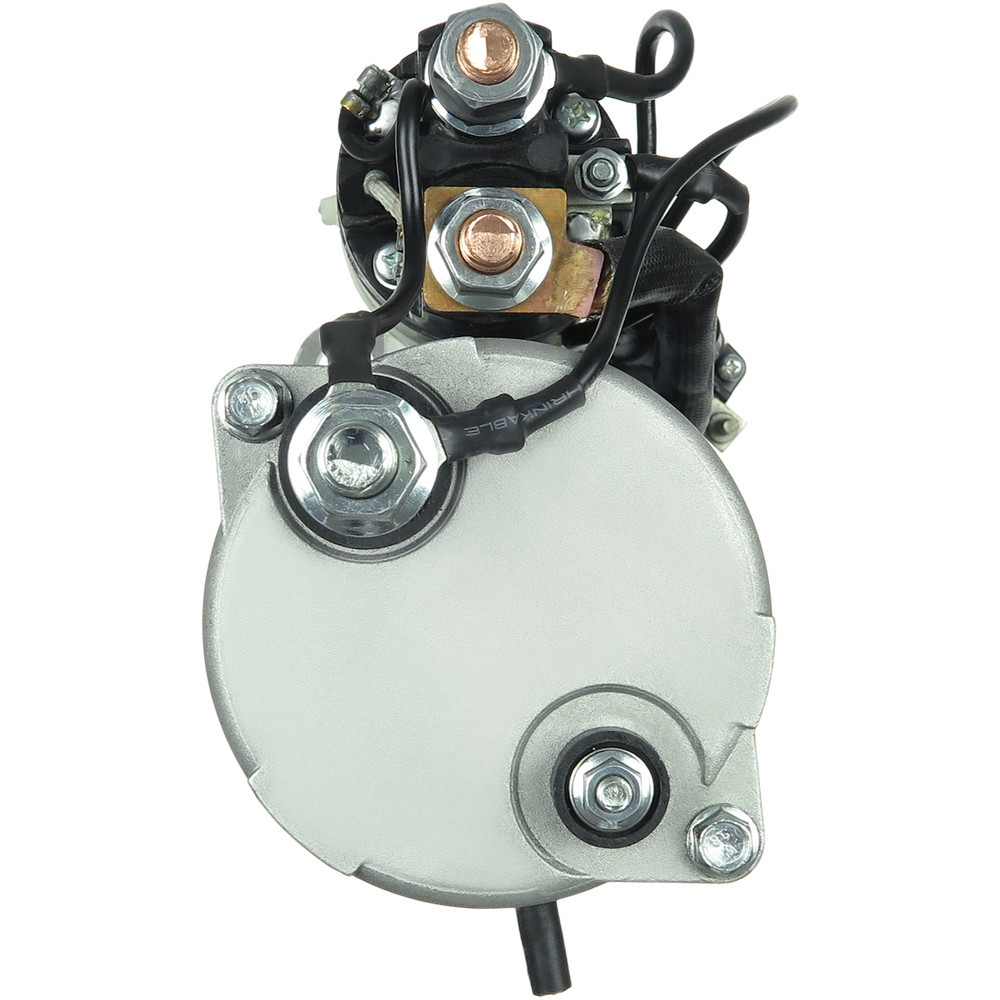

Starter Kenworth W900

Reference:
- M9T71479 (MITSUBISHI)

This product is no longer in stock

Application
Data sheet

KENWORTH W900

Model

Engine

Displacement and power

From To

W900

3406

CCM:

HP:

KW:

01.1986 => 12.2013

W900

C10

CCM:

HP:

KW:

01.1998 => 12.2004

W900

C12

CCM:

HP:

KW:

01.1998 => 12.2003

W900

C13

CCM:

HP:

KW:

01.2004 => 12.2016

W900

C15

CCM:

HP:

KW:

01.1997 => 12.2010

W900

C16

CCM:

HP:

KW:

01.2000 => 12.2013

W900

ISX15

CCM:

HP:

KW:

01.1999 => 12.2017

W900

N14

CCM:

HP:

KW:

01.1981 => 12.2004

Genuine part : no
Type of part : Starter
Motorization : W900
Can be mounted on : Kenworth
Years : 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013

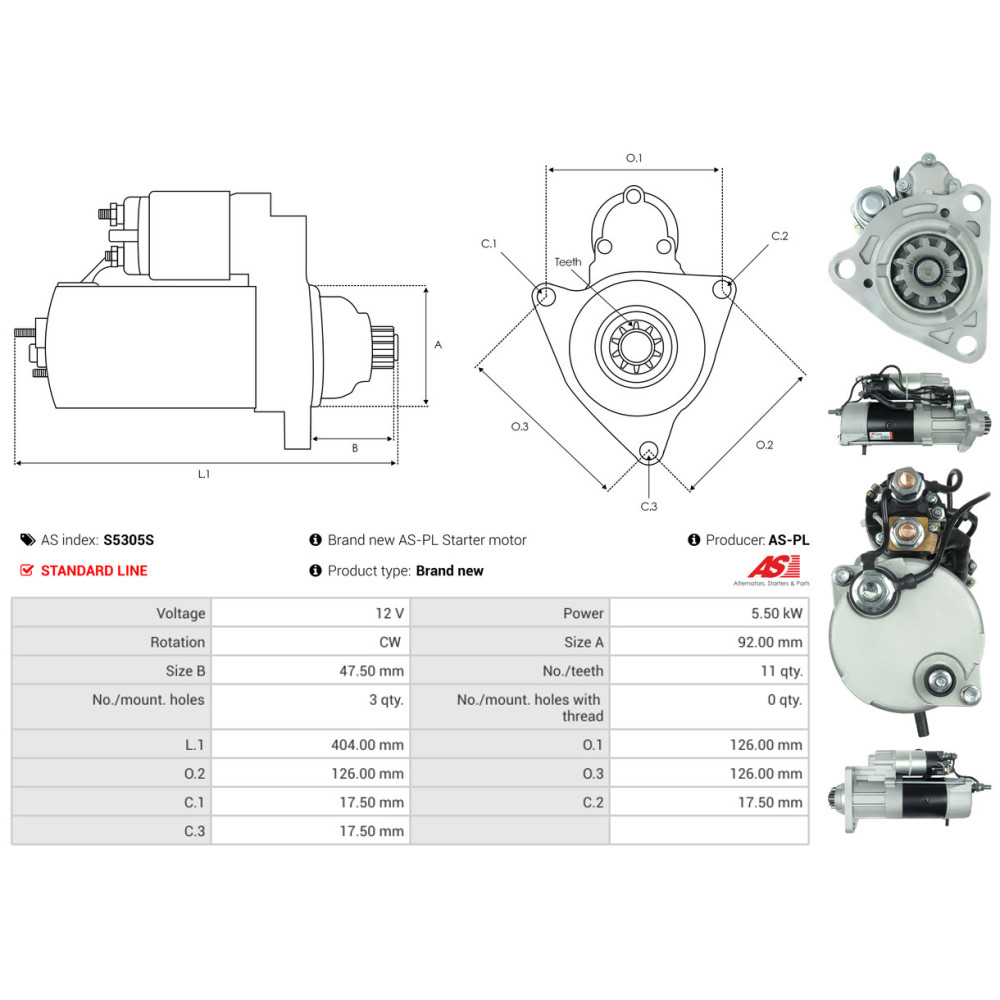

Mounting holes : 3
Number of teeth : 11
Rotation : CW (clockwise)
Voltage : 12
No./mount. holes with thread : 0
C.1 [ mm ] : 17.50
C.2 [ mm ] : 17.50
C.3 [ mm ] : 17.50
L.1 [ mm ] : 404.00
O.1 [ mm ] : 126.00
O.2 [ mm ] : 126.00
O.3 [ mm ] : 126.00
Taille A [ mm ] : 92.00
Taille B [ mm ] : 47.50
Type : W900
Engine code : 3406, C10, C12, C13, C15, C16, ISX15, N14
