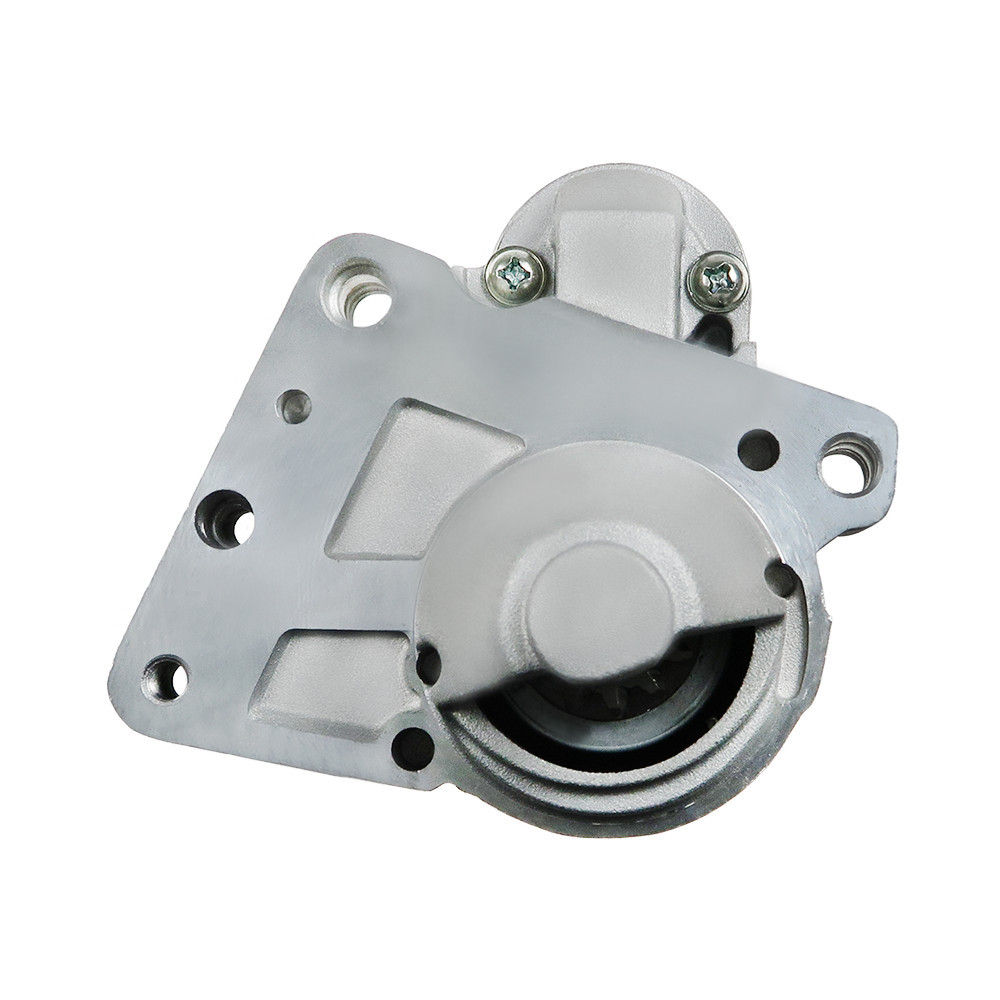

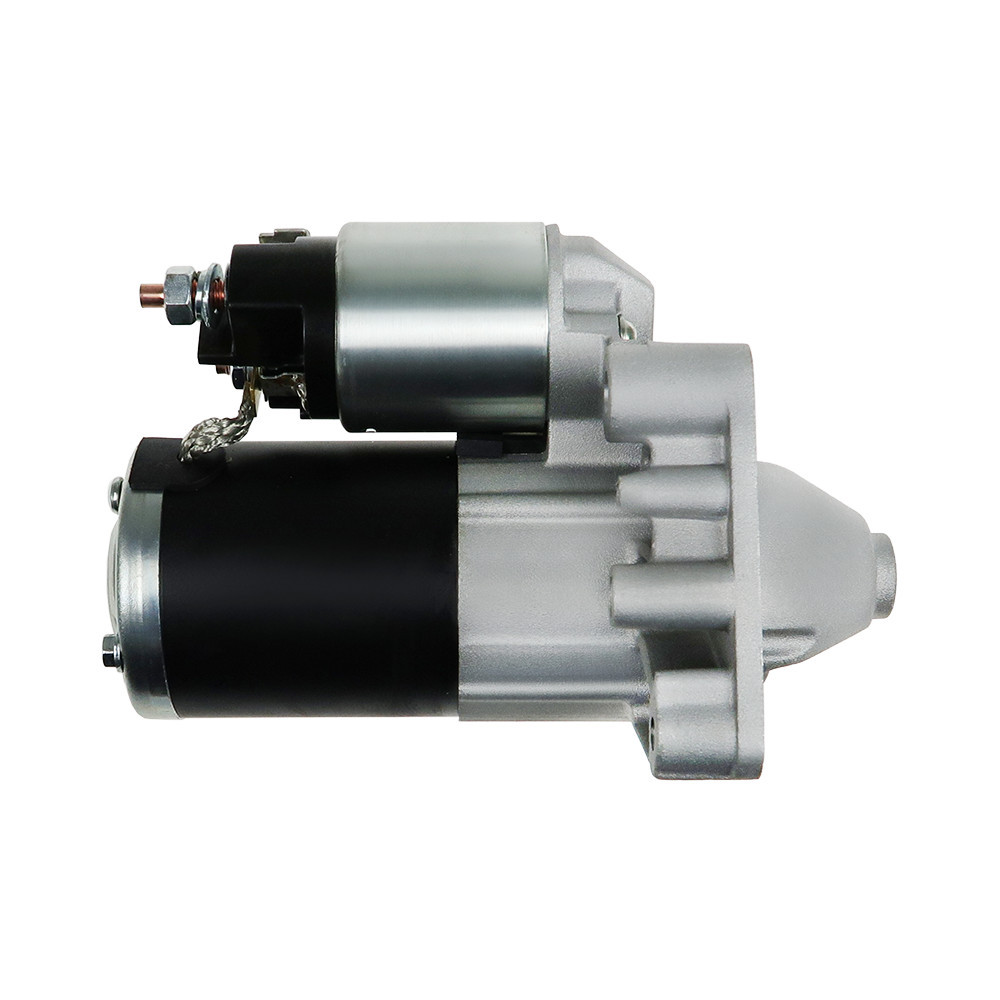

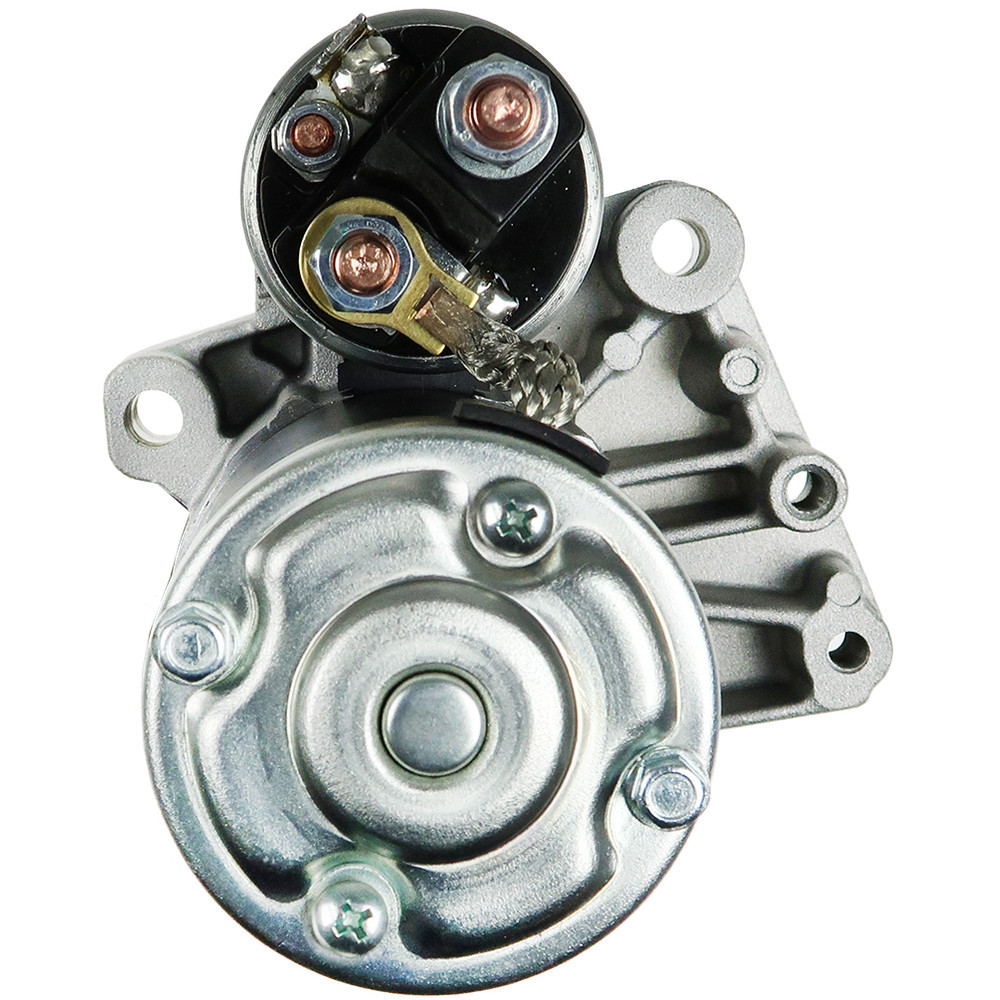

Starter Fiat SCUDO Bus (270_, 272_)

Reference:
- M0T22473 (MITSUBISHI)

Application
Data sheet

FIAT SCUDO Bus (270_, 272_)

Model

Engine

Displacement and power

From To

SCUDO Bus (270_, 272_) 1.6 D Multijet

9H07(DV6UC)

CCM:

1560

HP:

KW:

02.2011 => 03.2016

SCUDO Bus (270_, 272_) 1.6 D Multijet

9HM(DV6UC)

CCM:

1560

HP:

KW:

02.2011 => 03.2016

SCUDO Bus (270_, 272_) 1.6 D Multijet

9HU

CCM:

1560

HP:

KW:

01.2007 => 03.2016

SCUDO Bus (270_, 272_) 2.0 D Multijet

RHG

CCM:

1997

HP:

120

KW:

01.2007 => 03.2016

SCUDO Bus (270_, 272_) 2.0 D Multijet

RHK

CCM:

1997

HP:

120

KW:

01.2007 => 03.2016

SCUDO Bus (270_, 272_) 2.0 D Multijet

RHR

CCM:

1997

HP:

136

KW:

100

01.2007 => 03.2016

Genuine part : no
Type of part : Starter
Motorization : SCUDO Bus (270_, 272_)
Can be mounted on : Fiat

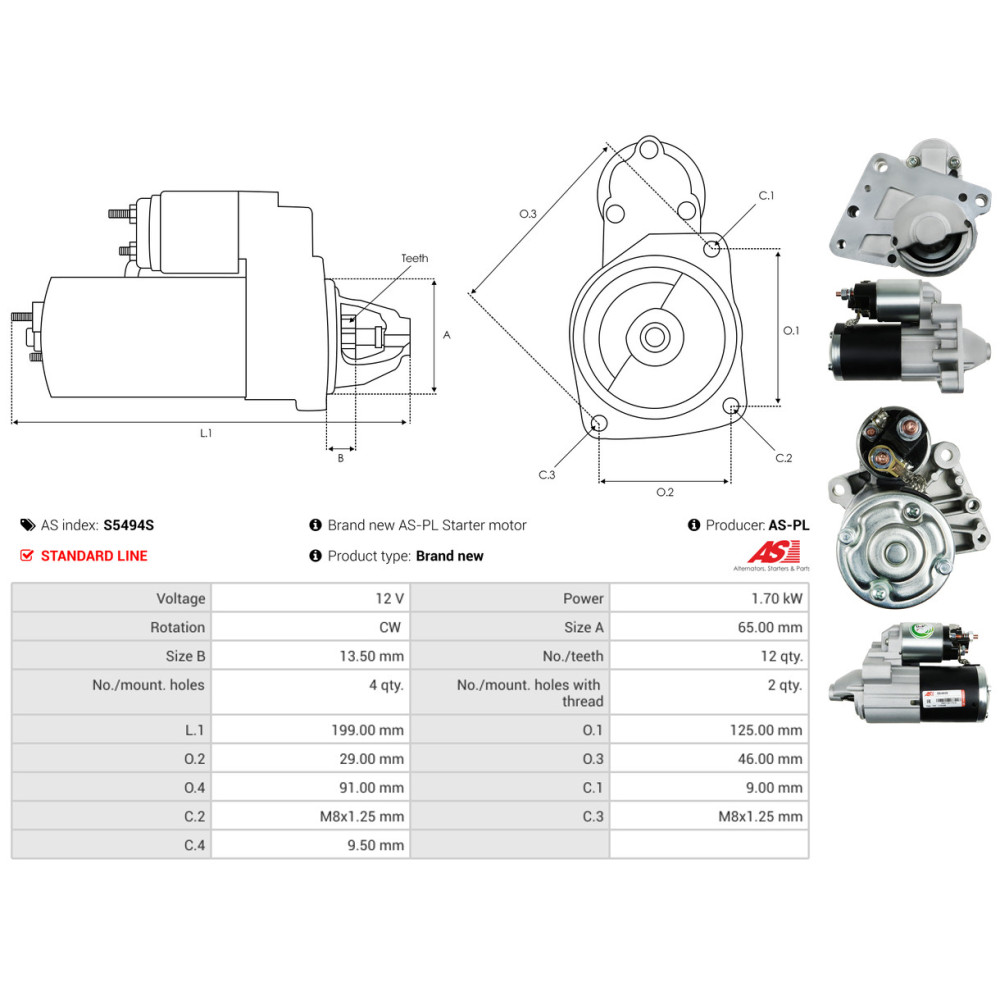

Mounting holes : 4
Number of teeth : 12
Rotation : CW (clockwise)
Voltage : 12
From : 2011, 2012, 2013, 2014, 2015, 2016
No./mount. holes with thread : 2
C.1 [ mm ] : 9.00
C.2 [ mm ] : M8x1.25
C.3 [ mm ] : M8x1.25
C.4 [ mm ] : 9.50
L.1 [ mm ] : 199.00
O.1 [ mm ] : 125.00
O.2 [ mm ] : 29.00
O.3 [ mm ] : 46.00
O.4 [ mm ] : 91.00
Taille A [ mm ] : 65.00
Taille B [ mm ] : 13.50
Type : SCUDO Bus (270_, 272_) 1.6 D Multijet, SCUDO Bus (270_, 272_) 2.0 D Multijet
Engine code : 9H07(DV6UC), 9HM(DV6UC), 9HU, RHG, RHK, RHR
