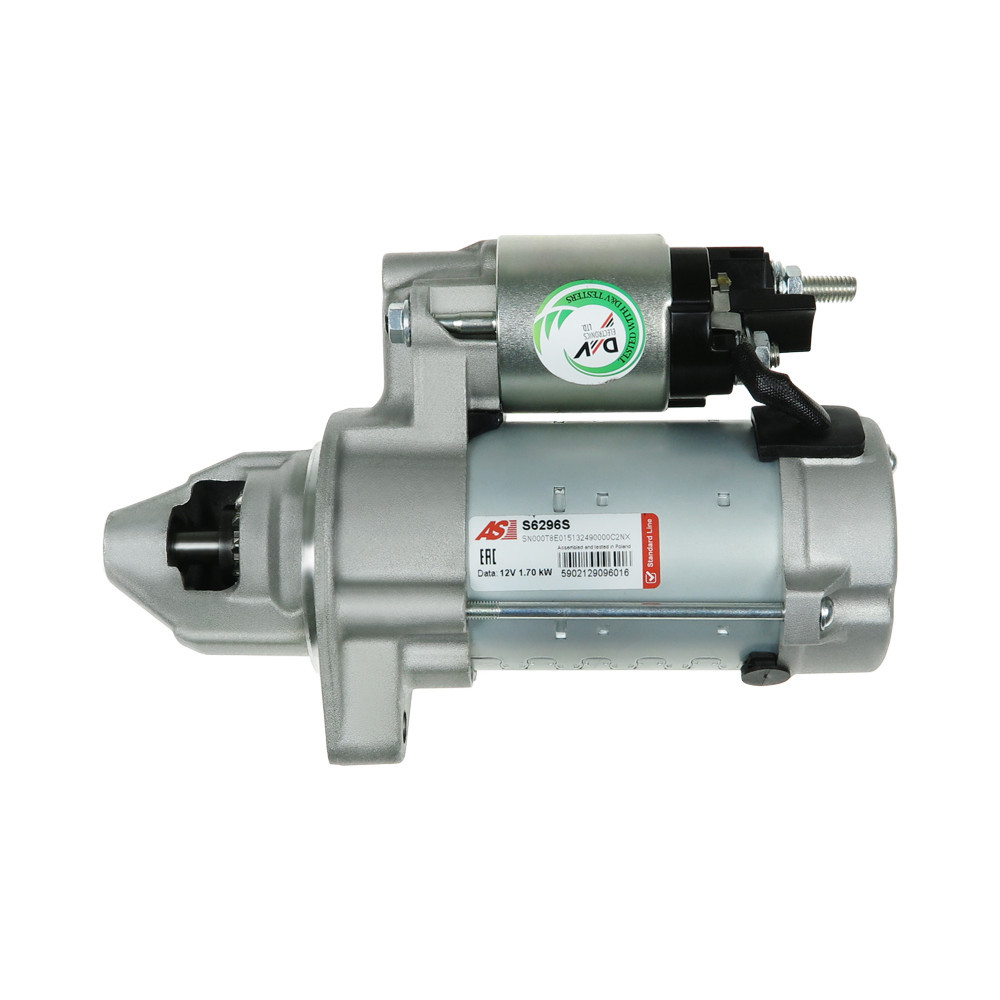

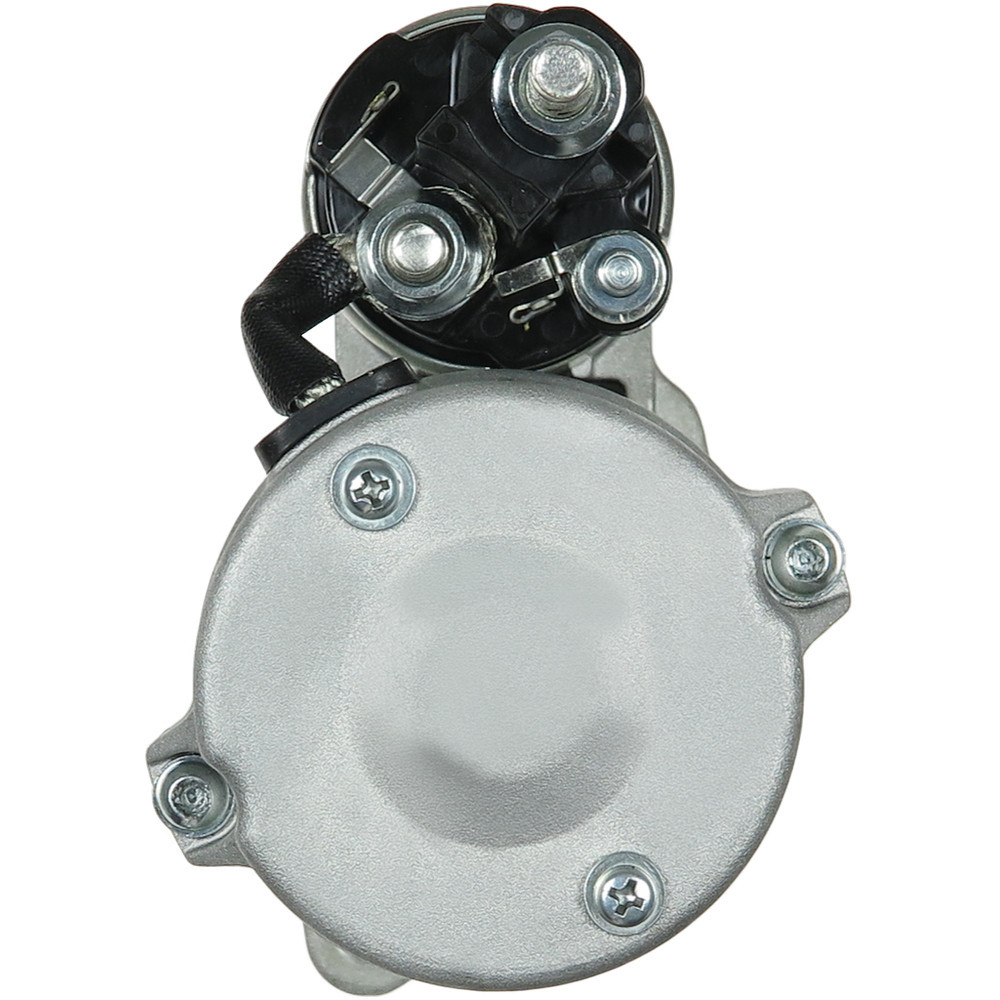

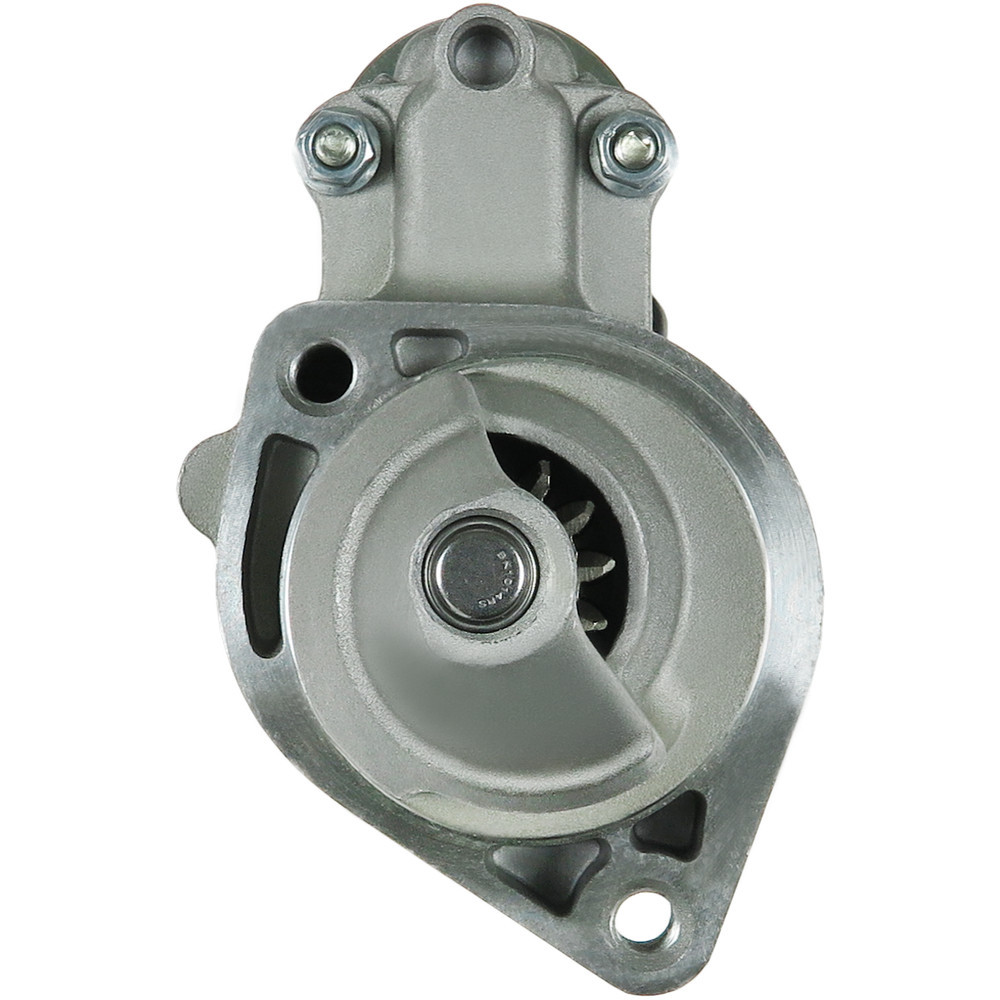

Starter MERCEDES-BENZ C-CLASS T-Model (S205)

Reference:
- 428000-9210 (DENSO)

Application
Data sheet

MERCEDES-BENZ C-CLASS T-Model (S205)

Model

Engine

Displacement and power

From To

C-CLASS T-Model (S205) C 160 (205.244)

M274.910

CCM:

1595

HP:

129

KW:

04.2015 => 11.2019

C-CLASS T-Model (S205) C 180 (205.240)

M274.910

CCM:

1595

HP:

156

KW:

115

09.2014 => 08.2020

C-CLASS T-Model (S205) C 200 (205.242)

M274.920

CCM:

1991

HP:

184

KW:

135

09.2014 => 05.2018

C-CLASS T-Model (S205) C 200 4-matic (205.243)

M274.920

CCM:

1991

HP:

184

KW:

135

04.2015 => 05.2018

C-CLASS T-Model (S205) C 250 (205.245)

M274.920

CCM:

1991

HP:

211

KW:

155

09.2014 => 05.2018

C-CLASS T-Model (S205) C 300 (205.248)

M274.920

CCM:

1991

HP:

245

KW:

180

09.2015 => 05.2018

C-CLASS T-Model (S205) C 300 e (205.253)

M274.920

CCM:

1991

HP:

320

KW:

235

07.2019 => 02.2021

C-CLASS T-Model (S205) C 350 e (205.247)

M274.920

CCM:

1991

HP:

279

KW:

205

02.2015 => 05.2018

C-CLASS T-Model (S205) C 450 AMG 4-matic (205.264)

M276.823

CCM:

2996

HP:

367

KW:

270

04.2015 => 05.2018

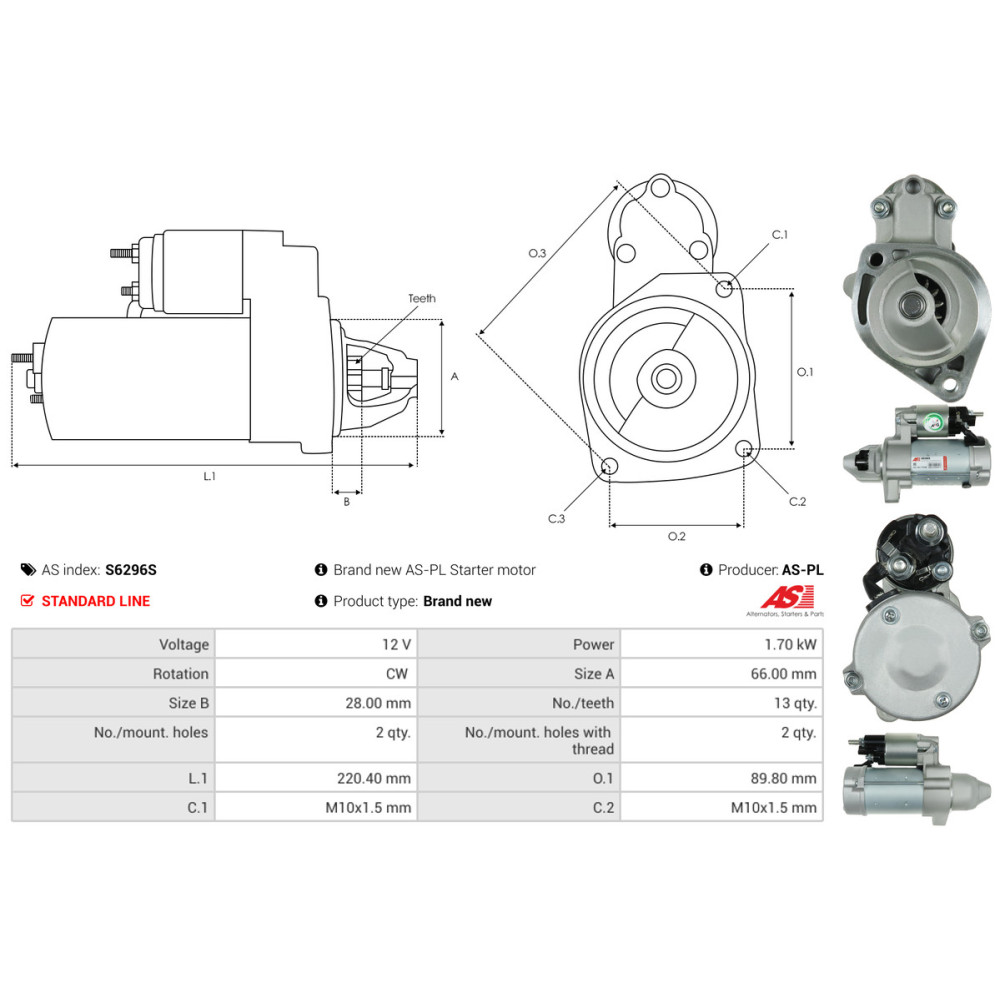

Type of part : Starter
Motorization : C-CLASS T-Model (S205)
Can be mounted on : MERCEDES-BENZ
Mounting holes : 2
Number of teeth : 13
Rotation : CW (clockwise)
Voltage : 12
From : 2015, 2016, 2017, 2018, 2019
No./mount. holes with thread : 2
C.1 [ mm ] : M10x1.5
C.2 [ mm ] : M10x1.5
L.1 [ mm ] : 220.40
O.1 [ mm ] : 89.80
Taille A [ mm ] : 66.00
Taille B [ mm ] : 28.00
Type : C-CLASS T-Model (S205) C 160 (205.244), C-CLASS T-Model (S205) C 180 (205.240), C-CLASS T-Model (S205) C 200 (205.242), C-CLASS T-Model (S205) C 200 4-matic (205.243), C-CLASS T-Model (S205) C 250 (205.245), C-CLASS T-Model (S205) C 300 (205.248), C-CLASS T-Model (S205) C 300 e (205.253), C-CLASS T-Model (S205) C 350 e (205.247), C-CLASS T-Model (S205) C 450 AMG 4-matic (205.264)
Engine code : M274.910, M274.920, M276.823
Genuine part : no
