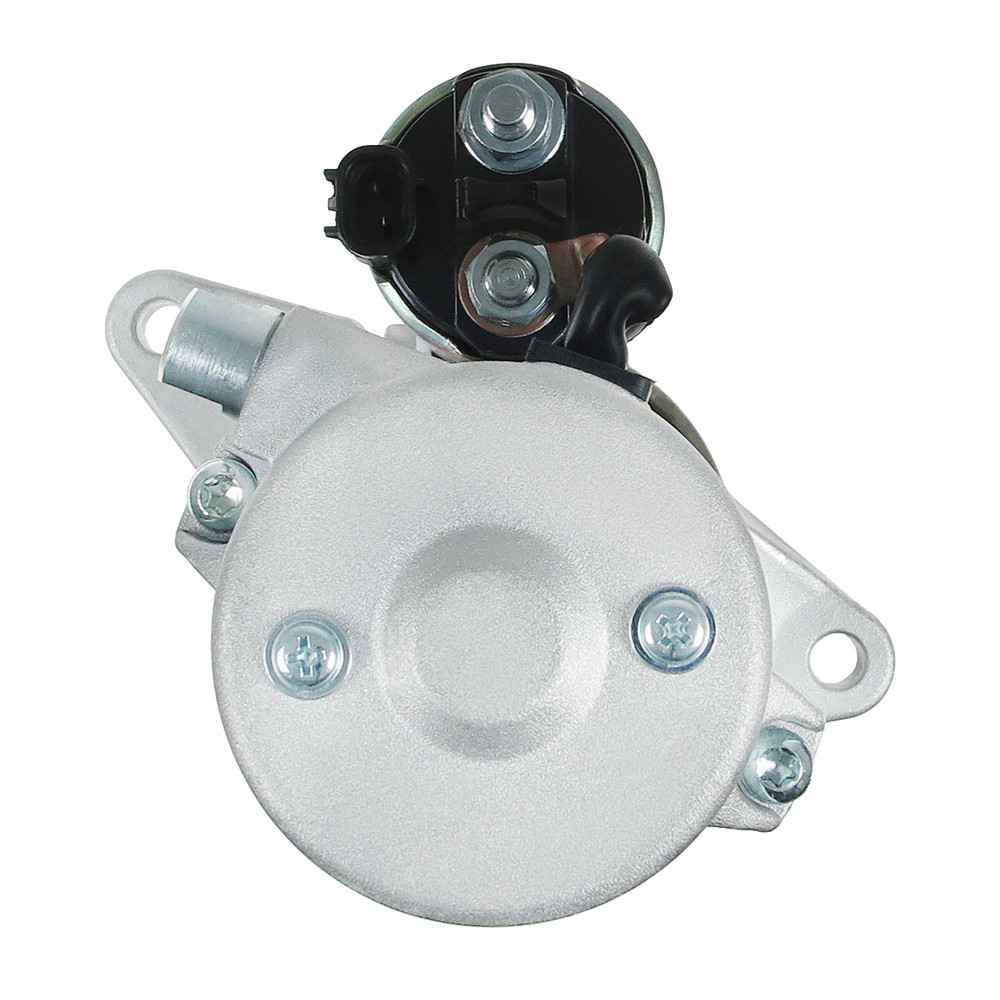

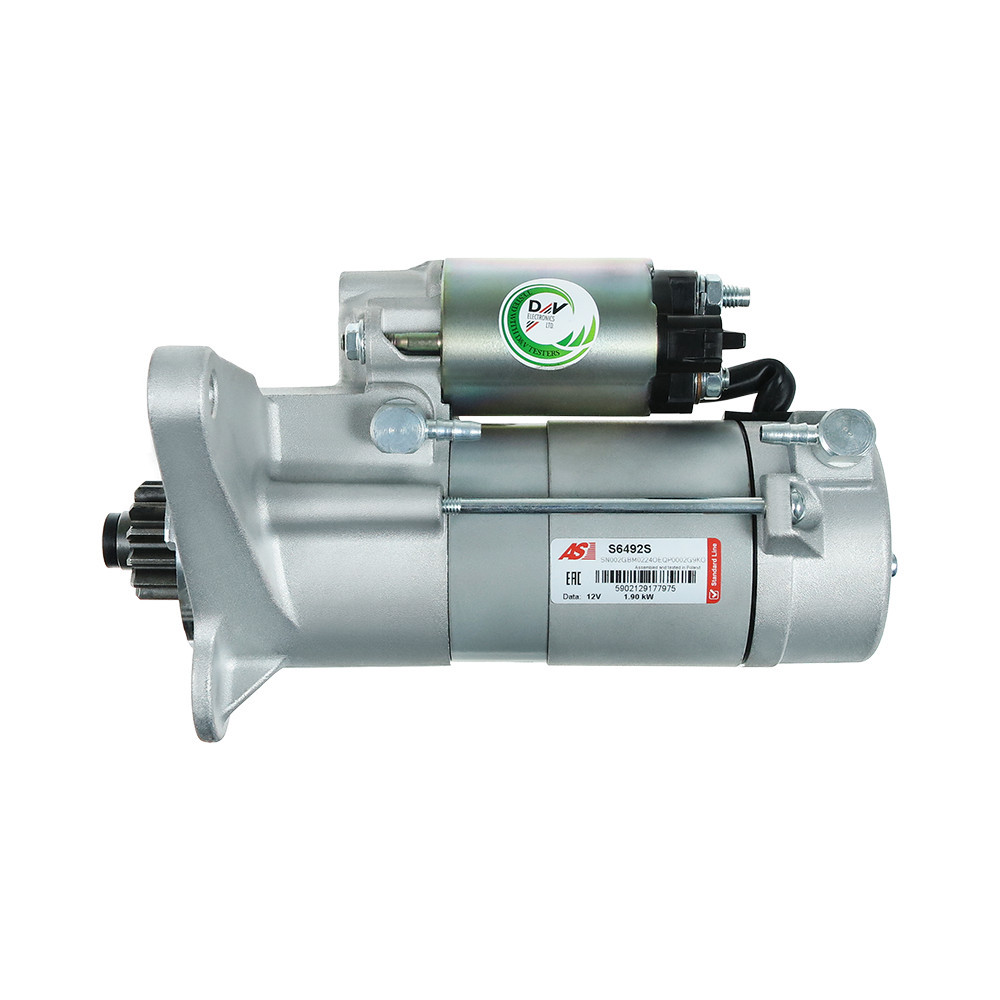

Starter Jaguar E-PACE (X540)

Reference:
- 438000-1991 (DENSO)

Application
Data sheet

JAGUAR E-PACE (X540)

Model

Engine

Displacement and power

From To

E-PACE (X540) 2.0 D150 AWD

204DTD(AJ20D4)

CCM:

1999

HP:

150

KW:

110

09.2017 =>

E-PACE (X540) 2.0 D150 AWD

204DTF(AJ20D4)

CCM:

1999

HP:

150

KW:

110

09.2017 =>

E-PACE (X540) 2.0 D180 AWD

204DTD(AJ20D4)

CCM:

1999

HP:

179

KW:

132

09.2017 =>

E-PACE (X540) 2.0 D180 AWD

204DTF(AJ20D4)

CCM:

1999

HP:

179

KW:

132

09.2017 =>

E-PACE (X540) 2.0 D240 AWD

204DTA(AJ20D4)

CCM:

1999

HP:

241

KW:

177

09.2017 =>

Genuine part : no
Type of part : Starter
Motorization : E-PACE (X540)
Can be mounted on : Jaguar
Mounting holes : 2

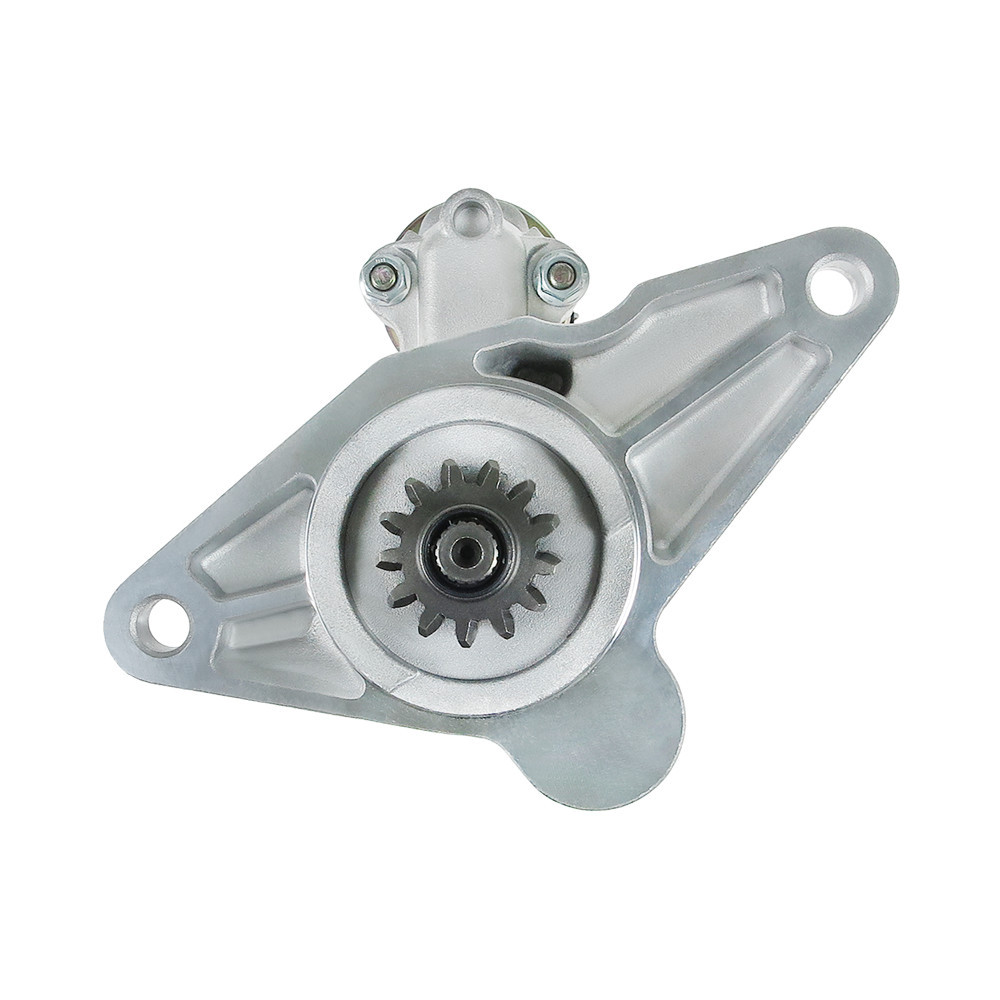

Number of teeth : 13
Rotation : CW (clockwise)
Voltage : 12
From : 2017
No./mount. holes with thread : 0

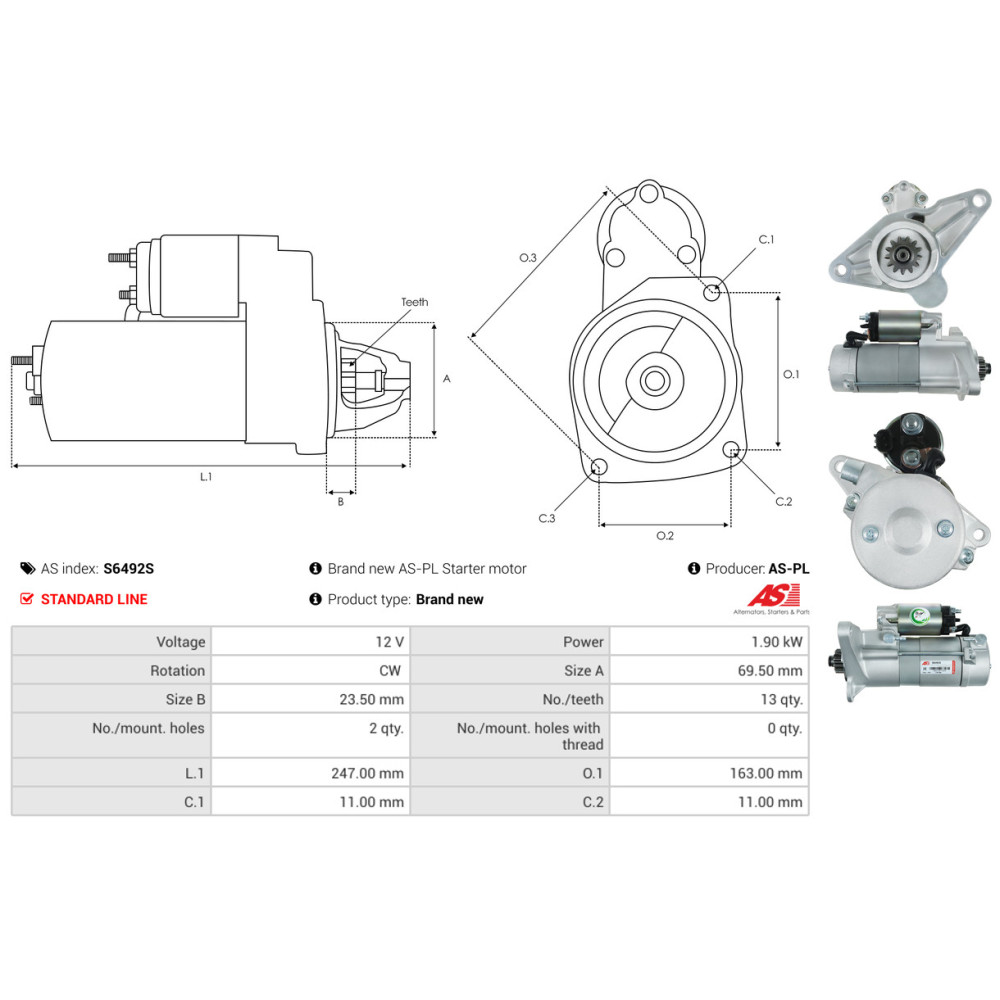

C.1 [ mm ] : 11.00
C.2 [ mm ] : 11.00
L.1 [ mm ] : 247.00
O.1 [ mm ] : 163.00
Taille A [ mm ] : 69.50
Taille B [ mm ] : 23.50
Type : E-PACE (X540) 2.0 D150 AWD, E-PACE (X540) 2.0 D180 AWD, E-PACE (X540) 2.0 D240 AWD
Engine code : 204DTA(AJ20D4), 204DTD(AJ20D4), 204DTF(AJ20D4)
