LADA 1200-1600
Model
Engine
Displacement and power
From To
1200-1600 1200 L/S (2101)
2101
CCM:
1198
HP:
60
KW:
44
01.1970 => 06.1986
1200-1600 1300 (VAZ2101)
BA321011
CCM:
1294
HP:
65
KW:
48
05.1978 => 01.1987
1200-1600 1300 (VAZ2101)
VAZ-21011
CCM:
1294
HP:
65
KW:
48
05.1978 => 01.1987
1200-1600 1300 (WAS21011)
BA32105
CCM:
1294
HP:
69
KW:
51
08.1974 => 08.1984
1200-1600 1500 (WAS2103, WAS2106)
BA32103
CCM:
1458
HP:
75
KW:
55
09.1972 => 08.1984
1200-1600 1500 N/S (VAZ2103)
BA32103
CCM:
1452
HP:
75
KW:
55
11.1975 => 10.1986
1200-1600 1600 (2106)
BA32106
CCM:
1569
HP:
79
KW:
58
09.1972 => 08.1984
1200-1600 1600 N/L (VAZ2106, VAZ2103)
BA32106
CCM:
1569
HP:
78
KW:
57
03.1979 => 12.2005
  • Genuine part : no
  • Type of part : Starter
  • Motorization : 1200-1600
  • Can be mounted on : Lada
  • Years : 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986

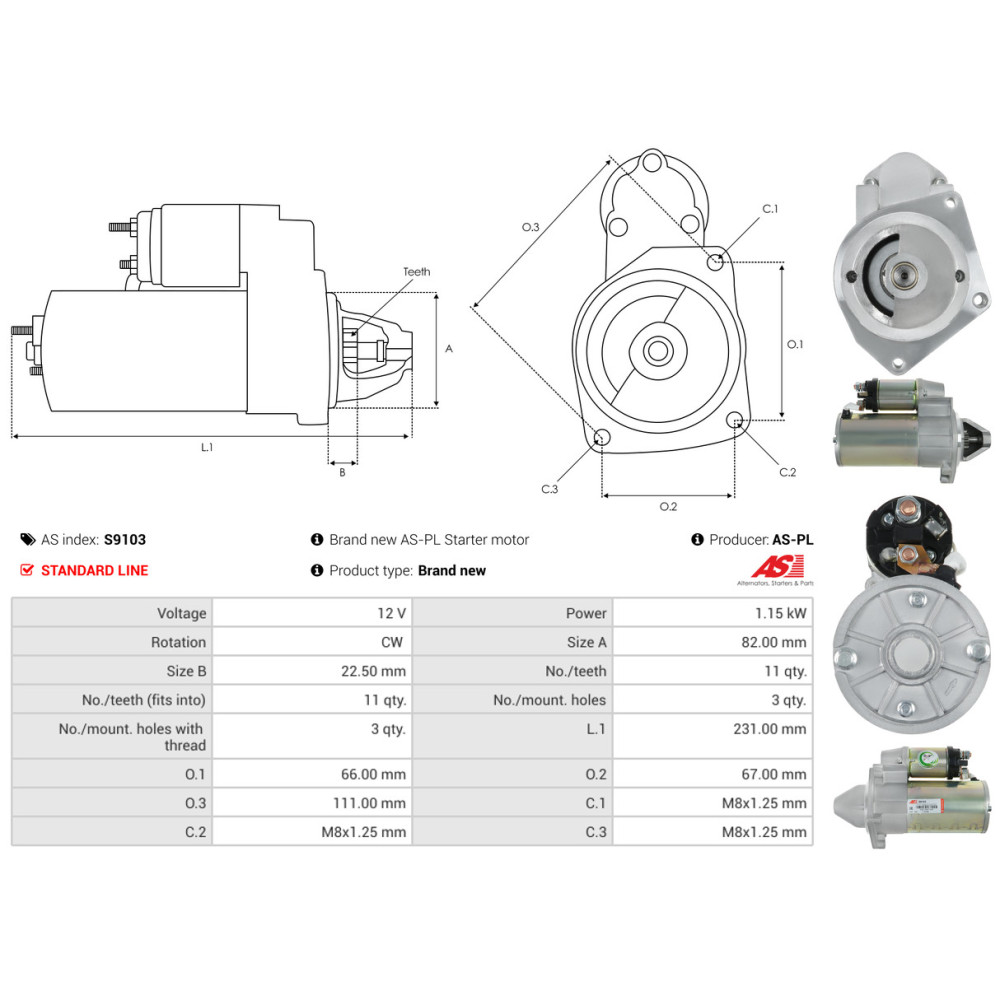

  • Mounting holes : 3
  • Number of teeth : 11
  • Rotation : CW (clockwise)
  • Voltage : 12
  • Number of fitted teeth : 11
  • No./mount. holes with thread : 3
  • C.1 [ mm ] : M8x1.25
  • C.2 [ mm ] : M8x1.25
  • C.3 [ mm ] : M8x1.25
  • L.1 [ mm ] : 231.00
  • O.1 [ mm ] : 66.00
  • O.2 [ mm ] : 67.00
  • O.3 [ mm ] : 111.00
  • Taille A [ mm ] : 82.00
  • Taille B [ mm ] : 22.50
  • Type : 1200-1600 1200 L/S (2101), 1200-1600 1300 (VAZ2101), 1200-1600 1300 (WAS21011), 1200-1600 1500 (WAS2103, WAS2106), 1200-1600 1500 N/S (VAZ2103), 1200-1600 1600 (2106), 1200-1600 1600 N/L (VAZ2106, VAZ2103)
  • Engine code : 2101, BA321011, BA32103, BA32105, BA32106, VAZ-21011
