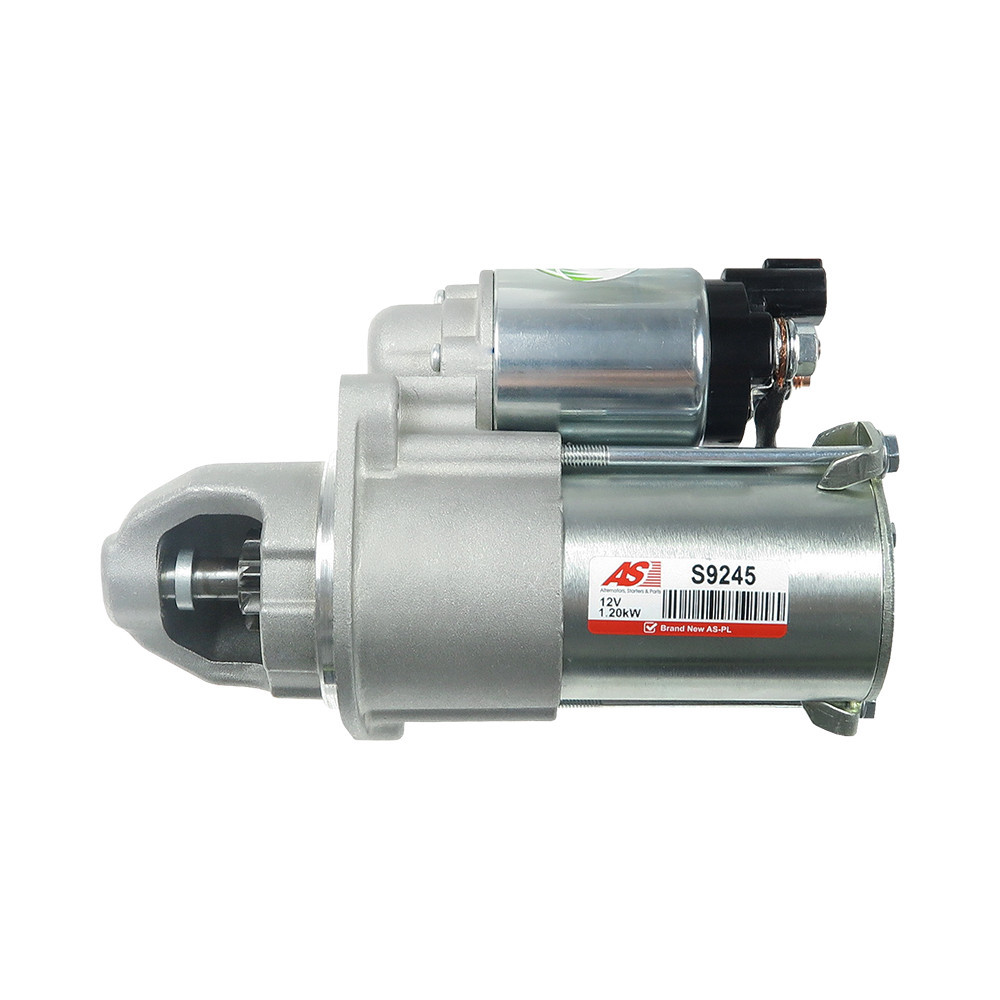

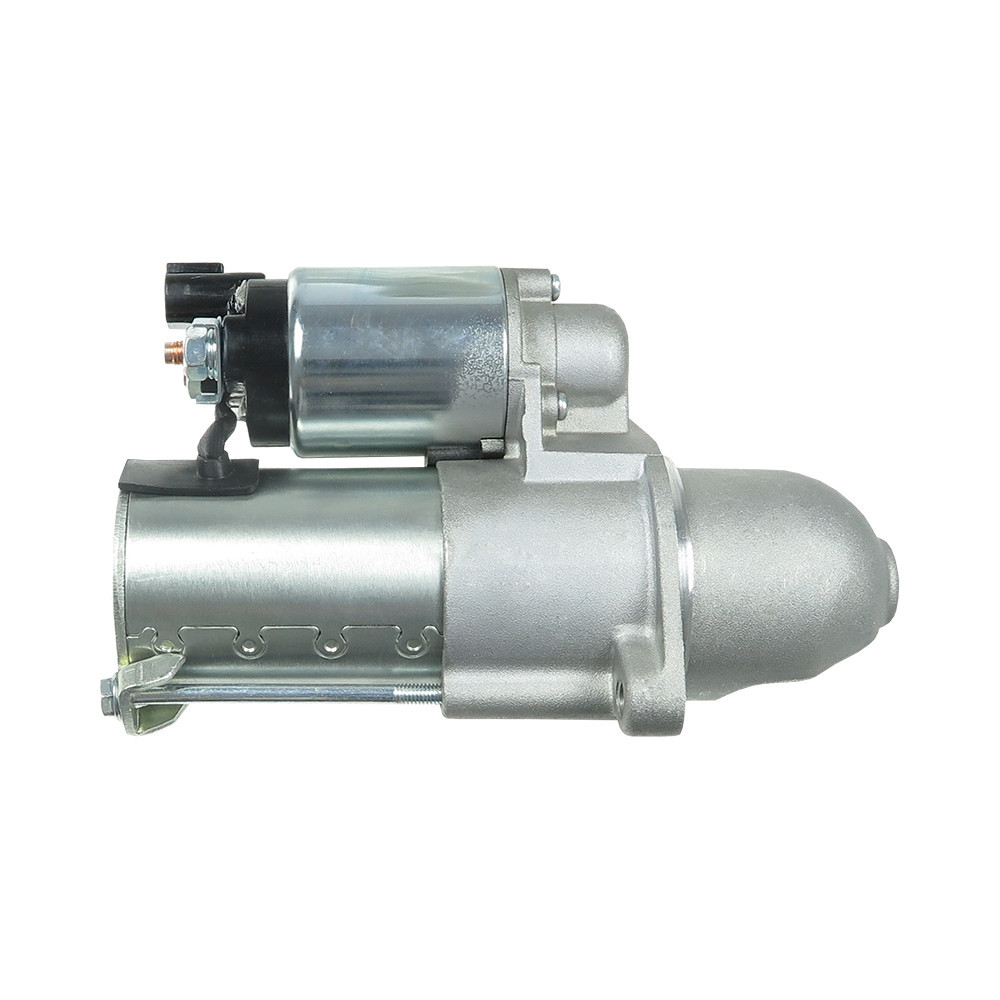

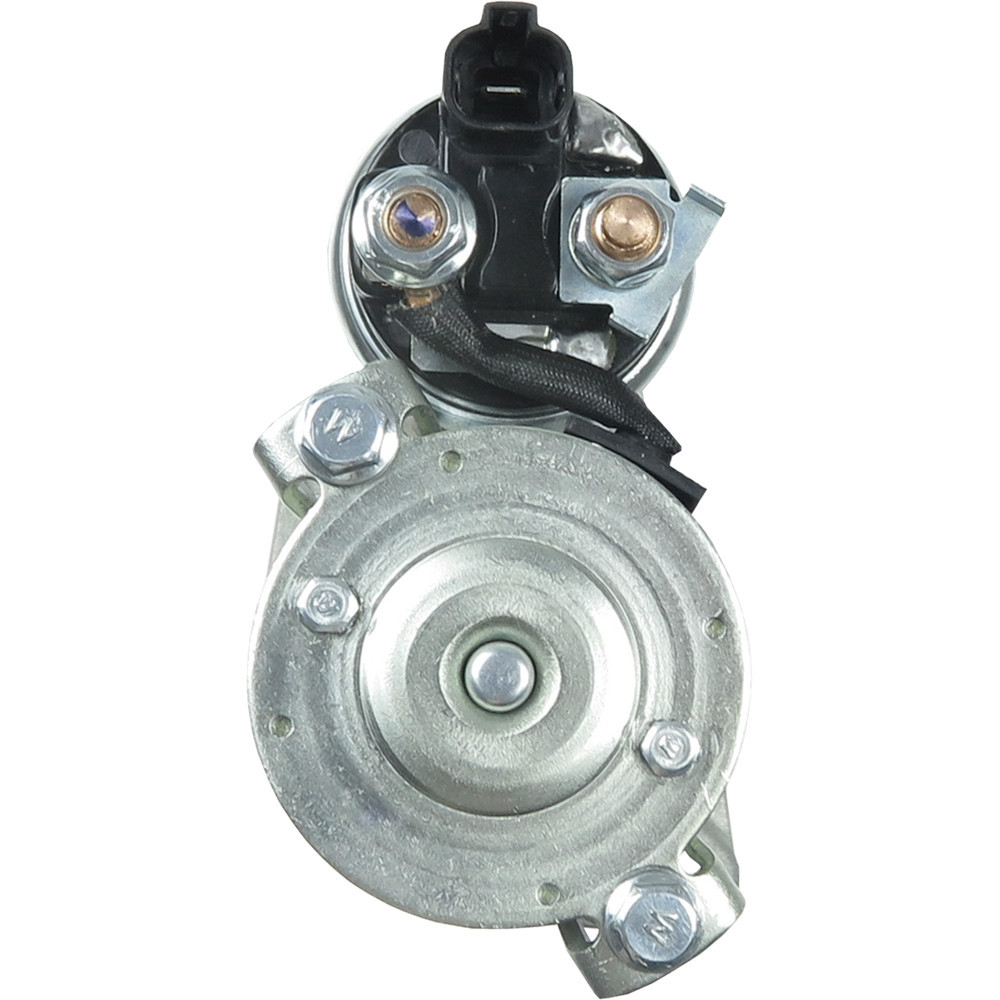

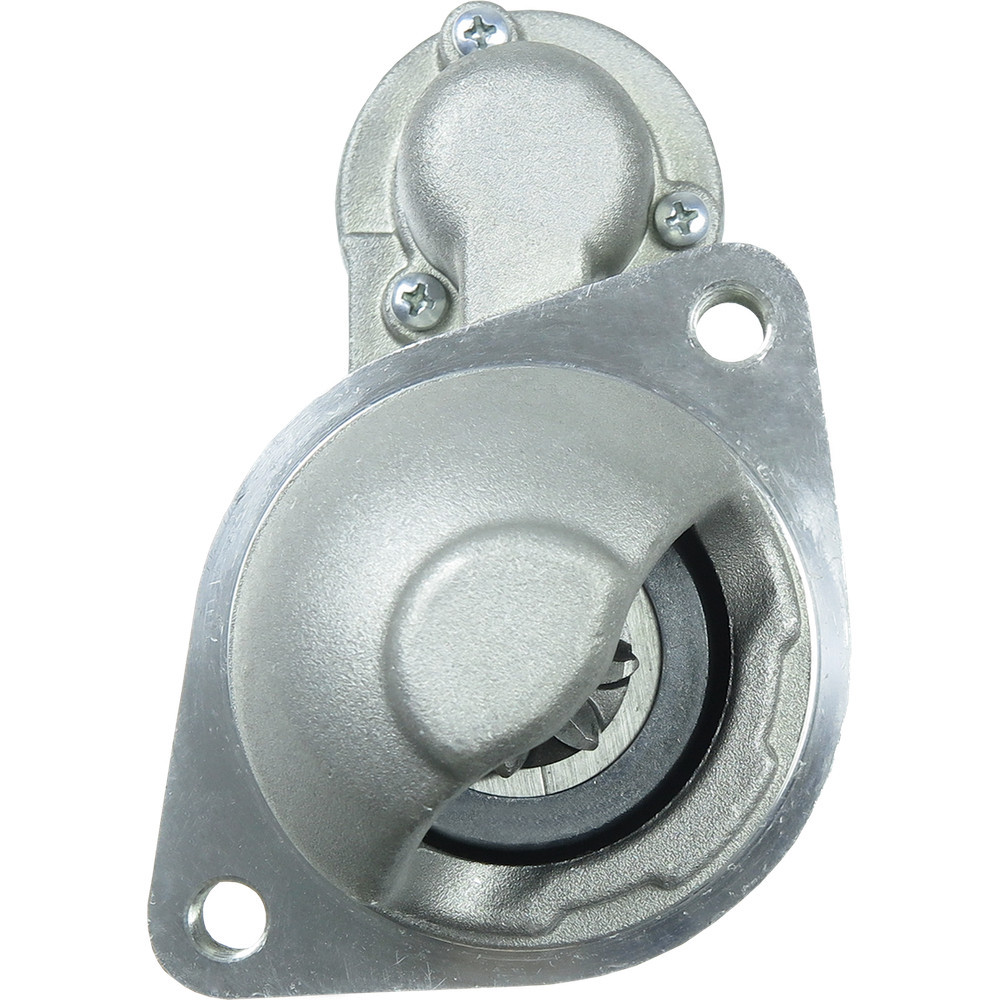

Starter Hyundai SANTA FE III (DM, DMA)

Reference:
- 36100-25020 (HYUNDAI / KIA)

Application
Data sheet

HYUNDAI SANTA FE III (DM, DMA)

Model

Engine

Displacement and power

From To

SANTA FE III (DM, DMA) 2.4

G4KJ

CCM:

2359

HP:

192

KW:

141

09.2012 => 10.2015

SANTA FE III (DM, DMA) 2.4 4WD

G4KJ

CCM:

2359

HP:

192

KW:

141

09.2012 => 10.2015

SANTA FE III (DM, DMA) 2.4 CCVT

G4KE

CCM:

2359

HP:

175

KW:

129

09.2012 => 12.2018

SANTA FE III (DM, DMA) 2.4 CCVT AWD

G4KE

CCM:

2359

HP:

175

KW:

129

09.2012 => 02.2018

SANTA FE III (DM, DMA) 2.4 GDI

G4KJ

CCM:

2359

HP:

188

KW:

138

05.2015 => 08.2018

SANTA FE III (DM, DMA) 2.4 GDI 4WD

G4KJ

CCM:

2359

HP:

188

KW:

138

05.2015 => 08.2018

Genuine part : no
Type of part : Starter
Motorization : SANTA FE III (DM, DMA)
Can be mounted on : Hyundai
Years : 2012, 2013, 2014, 2015
Mounting holes : 2
Number of teeth : 8
Rotation : CW (clockwise)
Voltage : 12
No./mount. holes with thread : 2

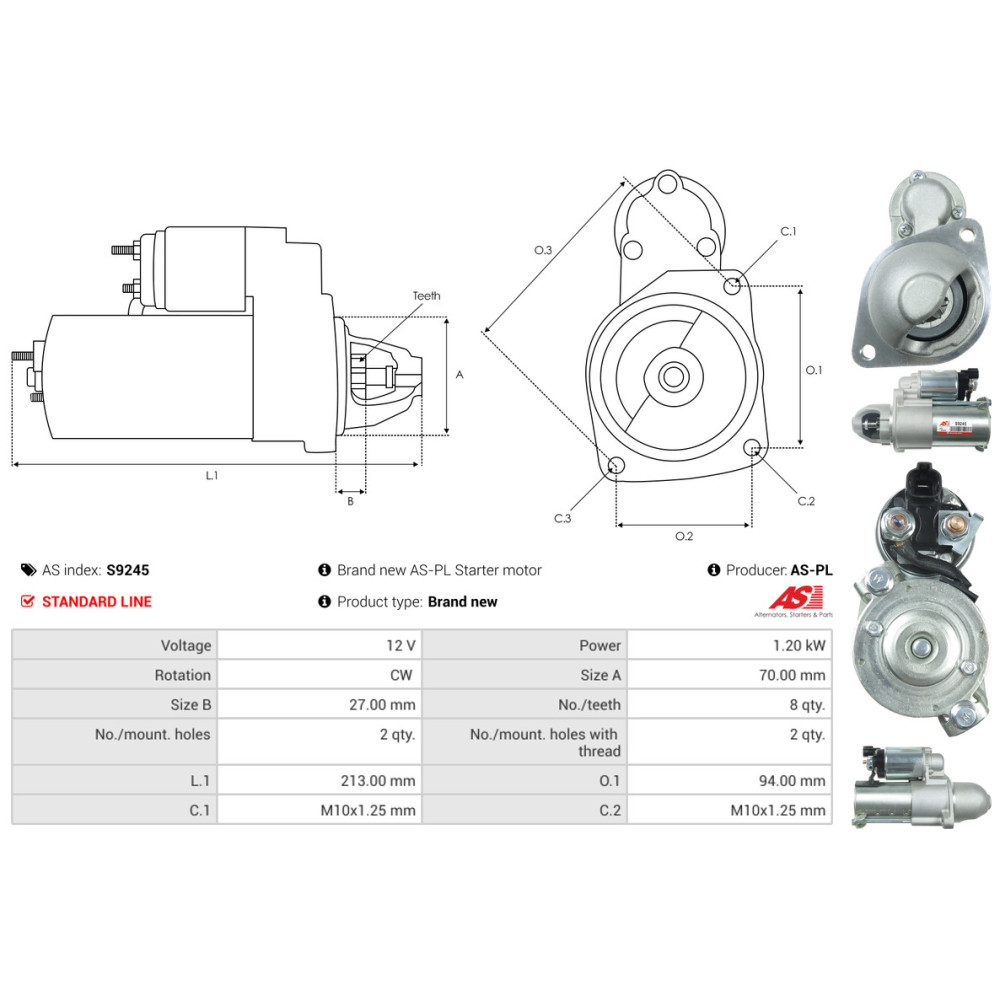

C.1 [ mm ] : M10x1.25
C.2 [ mm ] : M10x1.25
L.1 [ mm ] : 213.00
O.1 [ mm ] : 94.00
Taille A [ mm ] : 70.00
Taille B [ mm ] : 27.00
Type : SANTA FE III (DM, DMA) 2.4, SANTA FE III (DM, DMA) 2.4 4WD, SANTA FE III (DM, DMA) 2.4 CCVT, SANTA FE III (DM, DMA) 2.4 CCVT AWD, SANTA FE III (DM, DMA) 2.4 GDI, SANTA FE III (DM, DMA) 2.4 GDI 4WD
Engine code : G4KE, G4KJ
