JOHNSON 90
Model
Engine
Displacement and power
From To
90
99.6ci-90H.P.
CCM:
HP:
KW:
01.1970 => 12.1977
  • Genuine part : no

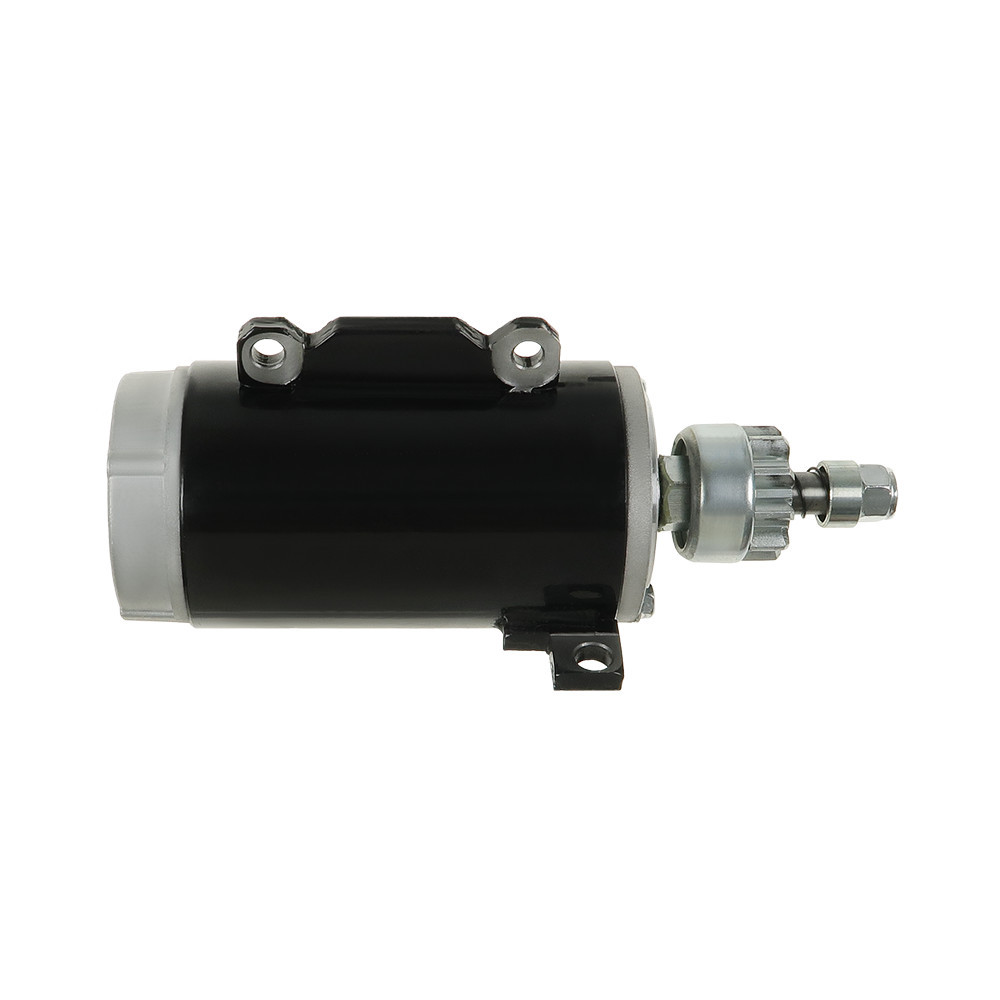

  • Type of part : Starter
  • Motorization : 90
  • Can be mounted on : JOHNSON
  • Years : 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977
  • Mounting holes : 3

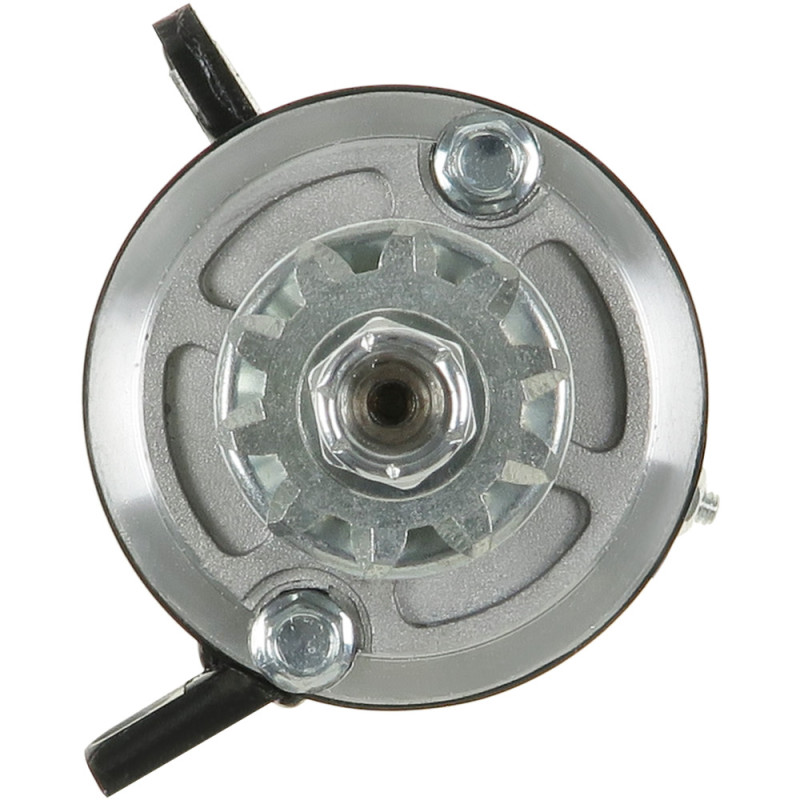

  • Number of teeth : 10
  • Rotation : ACW (counterclockwise)
  • Voltage : 12
  • No./mount. holes with thread : 0

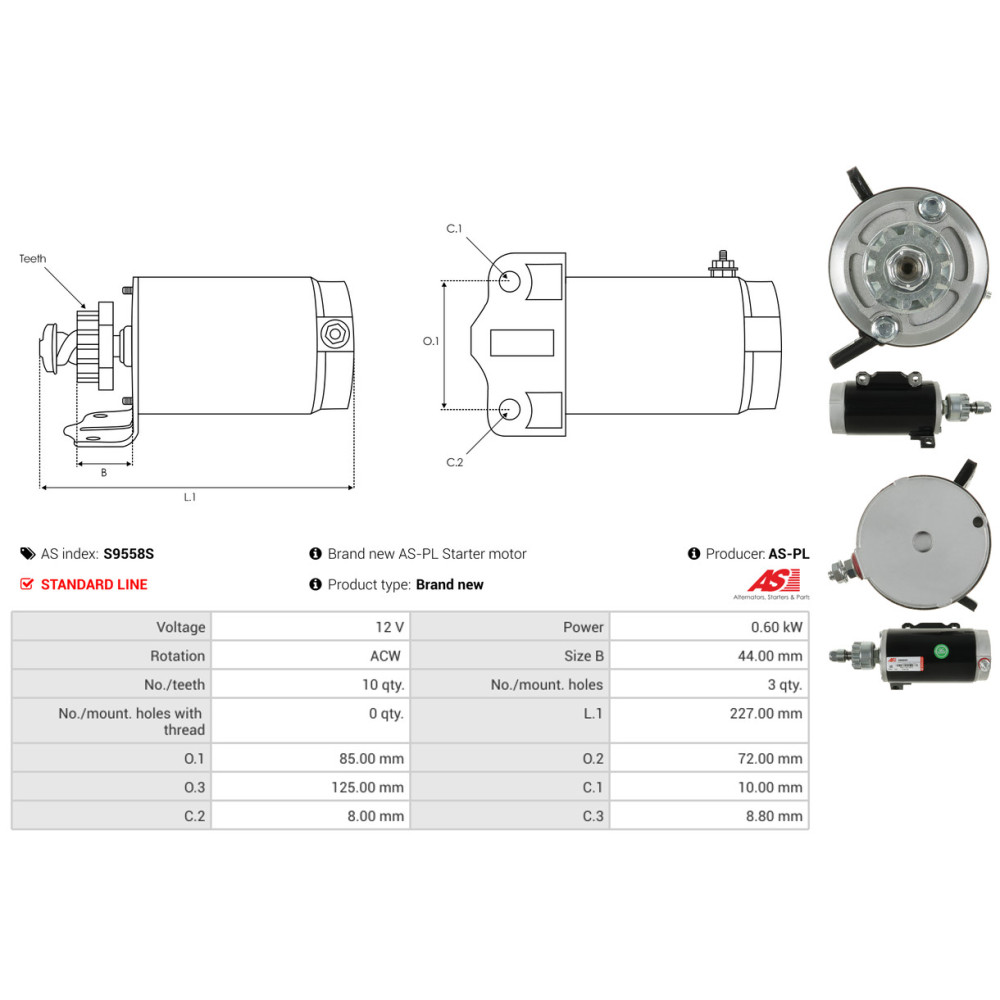

  • C.1 [ mm ] : 10.00
  • C.2 [ mm ] : 8.00
  • C.3 [ mm ] : 8.80
  • L.1 [ mm ] : 227.00
  • O.1 [ mm ] : 85.00
  • O.2 [ mm ] : 72.00
  • O.3 [ mm ] : 125.00
  • Taille B [ mm ] : 44.00
  • Type : 90
  • Engine code : 99.6ci-90H.P.
