SUZUKI DL
Model
Engine
Displacement and power
From To
DL 650 V-Strom (C7)
CCM:
645
HP:
48
KW:
35
01.2015 =>
DL 650 V-Strom (WC70)
CCM:
645
HP:
71
KW:
52
01.2017 =>
DL 650 V-Strom (WC71)
CCM:
645
HP:
48
KW:
35
01.2017 =>
DL 650 V-Strom (WVB1)
CCM:
645
HP:
34
KW:
25
01.2004 =>
  • Genuine part : no
  • Type of part : Starter
  • Motorization : DL
  • Can be mounted on : Suzuki
  • Mounting holes : 2
  • Number of teeth : 9
  • Rotation : ACW (counterclockwise)
  • Voltage : 12
  • From : 2015
  • No./mount. holes with thread : 0

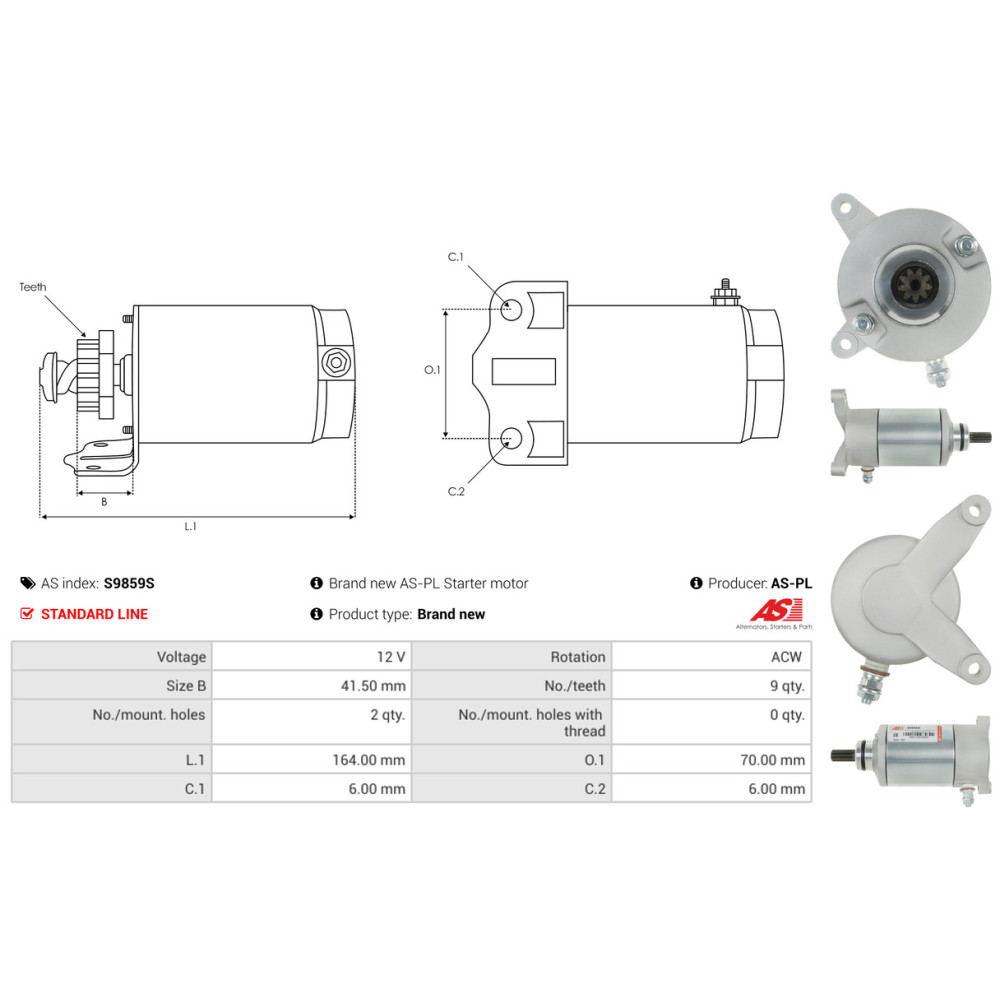

  • C.1 [ mm ] : 6.00
  • C.2 [ mm ] : 6.00
  • L.1 [ mm ] : 164.00
  • O.1 [ mm ] : 70.00
  • Taille B [ mm ] : 41.50
  • Type : DL DL 650 V-Strom (C7), DL DL 650 V-Strom (WC70), DL DL 650 V-Strom (WC71), DL DL 650 V-Strom (WVB1)
